Top Tier Wheel Mucking Loader Offer

Strong Loading Capacity: Excels in loading, swiftly handling rock materials to enhance construction efficiency.

Remarkable Energy-saving: Optimizes energy consumption, reducing waste for long-term economic efficiency.

Stable Hydraulics: Adopts load-sensing hydraulic technology for steady, reliable operation without hidden risks.

Easy Maintenance: Semi-enclosed assembly design streamlines daily inspection and upkeep.

Contact Now

Product Details

It employs an electric full - hydraulic transmission mechanism and encompasses four essential functions: hydraulic movement, excavation and gathering, material transportation, and loading. Thanks to its compact and efficient design, it generates powerful propulsion and offers an extensive mucking range. The main operations are regulated by pilot - operated valves, ensuring an easy - to - use and smooth operation process. This not only enhances safety and comfort but also provides outstanding maneuverability, strong climbing ability, and a stable, vibration - free operation.

This machine can load rocks across the entire cross - sectional area, leaving no uncovered areas, thus eliminating the need for manual cleaning of the working face. As a result, it greatly improves work efficiency, reduces mining costs, and increases economic benefits. With the ability to unload 50 - 60 cubic meters of materials per hour, one unit can replace the work of more than 30 workers. This reduction in the number of operators not only simplifies the workforce management but also decreases potential safety hazards during operation.

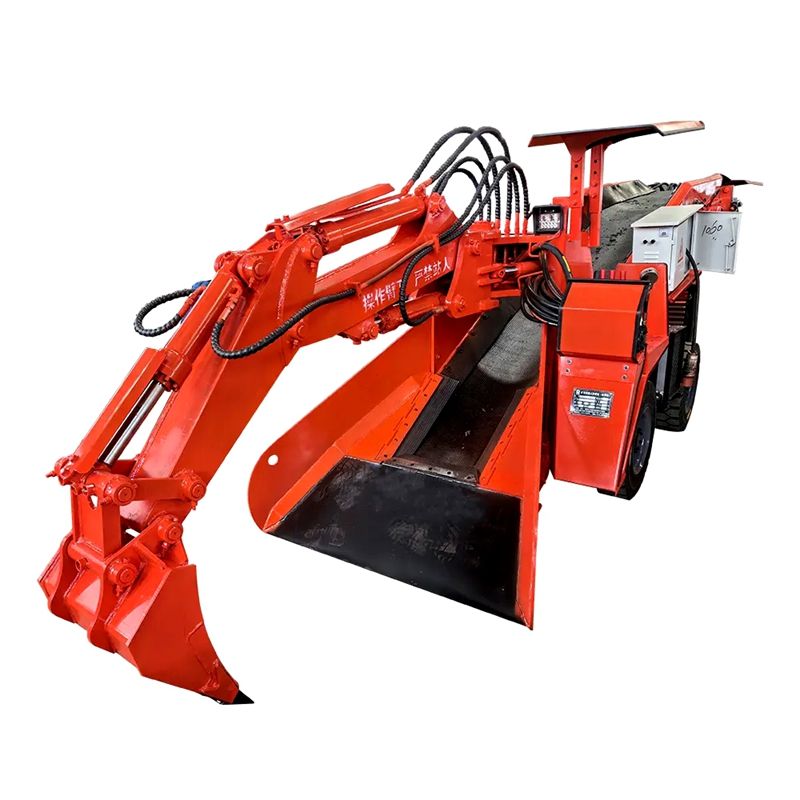

Wheel Mucking Loader

DETAIL PRESENTATION

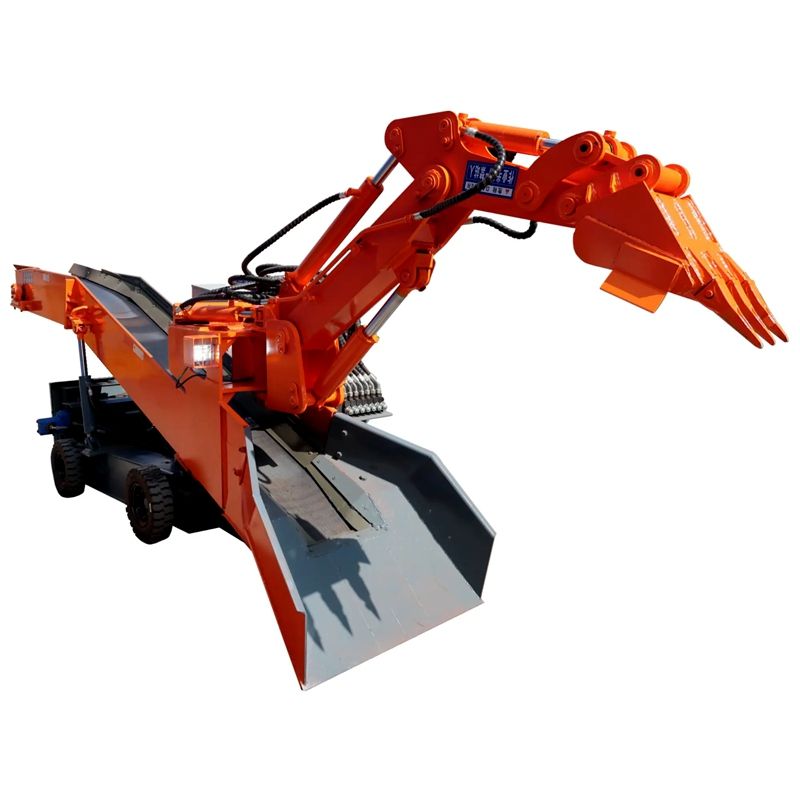

Wheel Mucking Loader

PRODUCT SELLING POINTS

01 Chassis and Tyre The multi-layer spring plates reinforced chassis is and robust tyres bring stability to the entire machine
	02 Simple Operation Straight-forward arrangement of levers to ensure a smooth operation in any working scenario.
03 Hydraulic Ram As a key component of operation effect, we use high quality hydraulic cylinders for the boom, dipper arm and other units.
	04 Core Engine Stable Diesel Engine or Electric Motor from Reliable Factory with high performance, powerful and speedy.
05 Conveying System Taking advantage of specially designed wear-resistant and durable conveying belt, withstanding all type of rock and gravels.
	06 Excavator Bucket By adoption of the similar excavation bucket and teeth, making the digging much easier and regaining efficiency.

Wheel Mucking Loader

PRODUCT SPECIFICATION

Model	BJ1.3-60T-B1
Loading Capacity (m³/h)	≤ 60
Total Machine Mass (kg)	Approximately 2750±5%
Wheelbase (A) (mm)	1550
Track Width (Front/Rear) (mm)	1110/1190
Minimum Turning Radius (m)	≤ 5
Excavation Width (B) (mm)	3000
Digging Reach (C) (mm)	≥ 1400
Excavation Depth (Z) (mm)	≤ 500
Excavation Height (H) (mm)	2100
Maximum Dumping Height (H) (mm)	1350 (Can be Raised)
Loading Length (D) (mm)	1500 (Can be Extended)
Gradability (°)	≤ 5
Maximum Dimension of Pass - through Material (mm)	≤ 600×450
Conveyor Belt Speed (m/s)	0.8±5%
Conveying Capacity (m³/h)	≥ 60
Main Motor Power (Kw)	11
Traveling Speed (Km/h)	1.45
Rated Working Pressure (Mpa)	12
Relief Valve Opening Pressure (Mpa)	12.5
Electrical Insulation Strength (MΩ) - Three - phase	≥ 1.5
Electrical Insulation Strength (MΩ) - Phase - to - phase	≥ 1.5
Maximum Dimensions in Transport State (mm) - Length	5300±50
Maximum Dimensions in Transport State (mm) - Width	1300±50
Maximum Dimensions in Transport State (mm) - Height	1400±50
Minimum Applicable Cross - section (㎡)	2.2×2.2

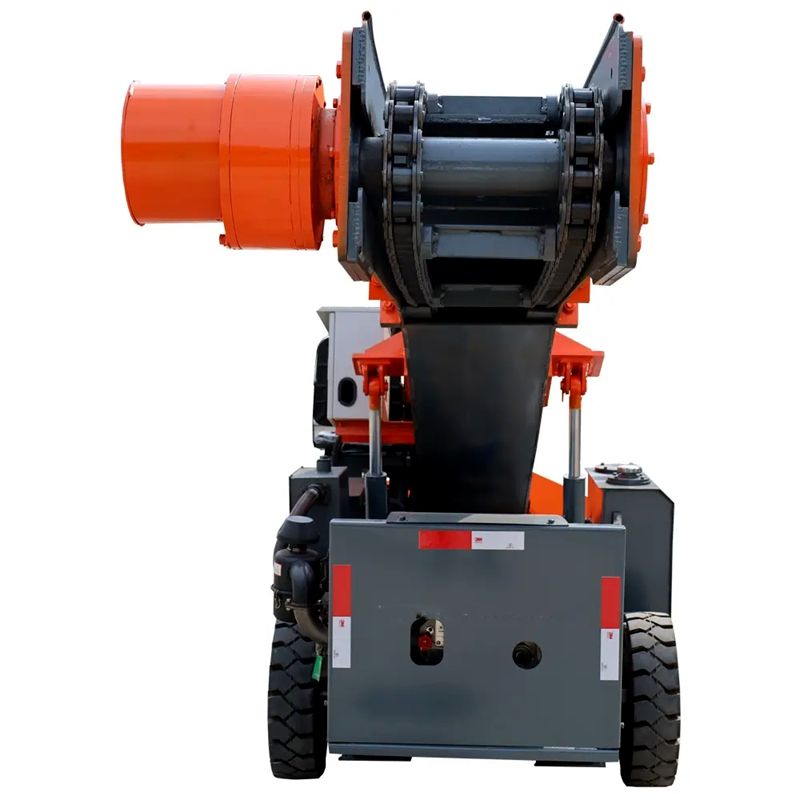

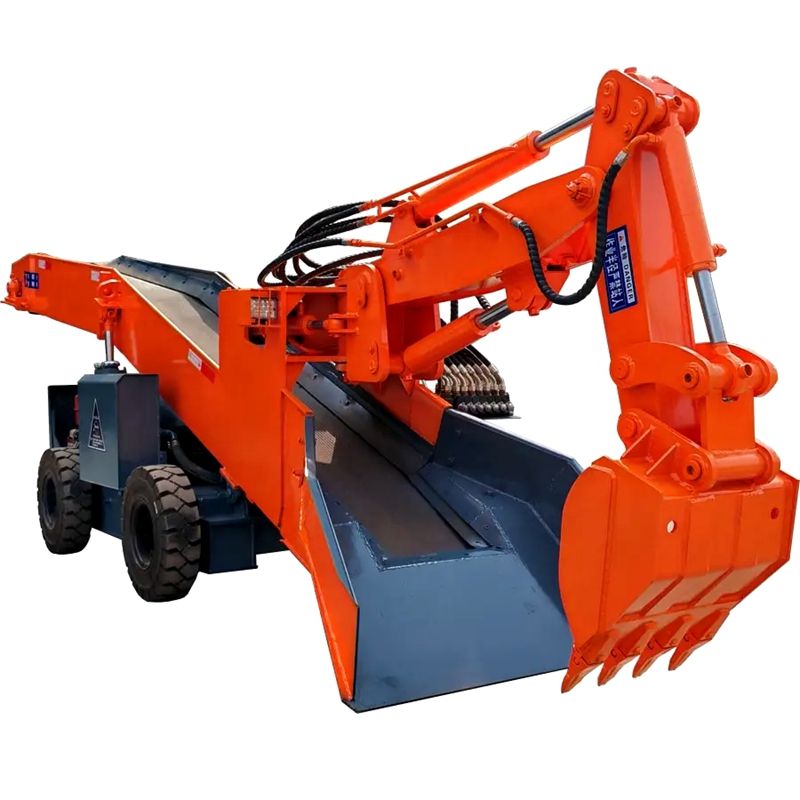

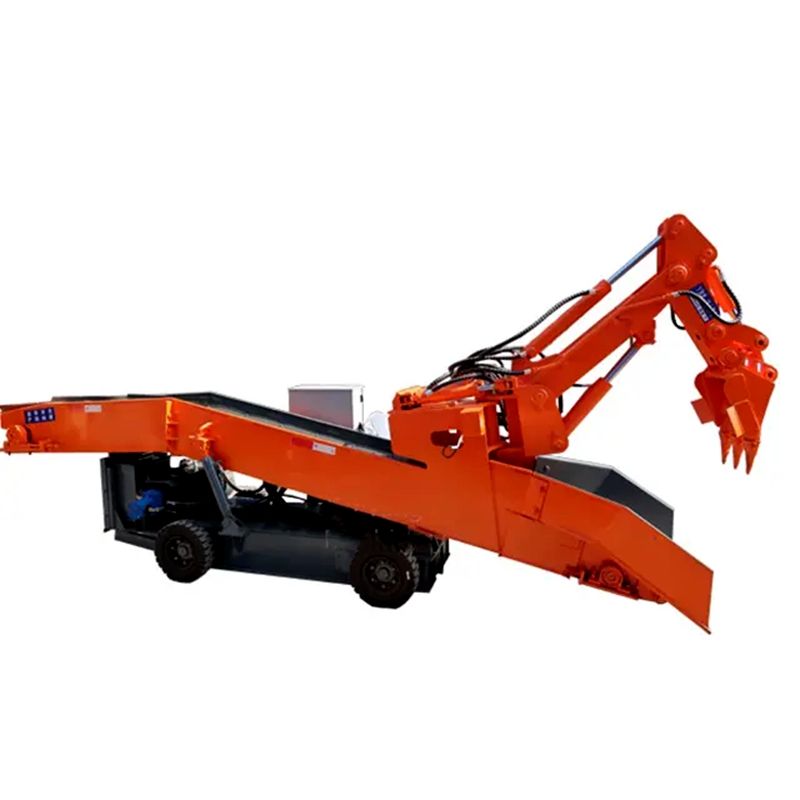

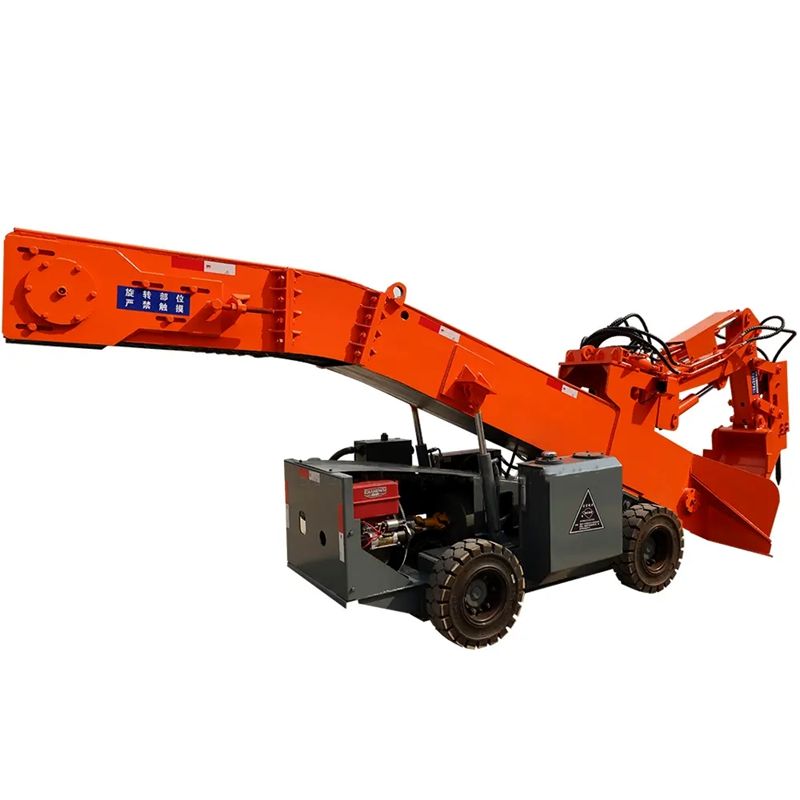

PRODUCT DISPLAY

Wheel Mucking Loader

PRODUCT APPLICATIONS

Wheel Mucking Loader

ABOUT US

Shandong Beijun Machinery Industry Co., Ltd. stands out as a leading - edge enterprise that is dedicated to the exploration, advancement, and manufacturing of mining and construction machinery. Located in Jining, Shandong, the firm covers an expanse of 100 acres and has a production area of 20,000 square meters. By making use of advanced manufacturing technologies, Beijun can reach an annual production volume of 4,000 mining trucks, 500 fully - hydraulic crawler vehicles, and 3,000 aerial work platform trucks.

Beijun has obtained the ISO9001 quality management system certification and the EU CE authorization. It strictly follows the mining safety production rules. The company applies a comprehensive ERP system, incorporating advanced information technology methods to better resource planning and management efficiency. Beijun mainly focuses on the production of mining transport vehicles, crawler hauling vehicles, and aerial work platform trucks.

Backed by a skilled technical team, strict quality control processes, modern testing tools, and effective production methods, the company consistently provides high - quality products. Beijun has more than 200 workers, among which 30 are engineers, 40 are sales staff, and 15 are mechanical engineering experts.

Committed to innovation and independent R & D, Beijun adheres to its core values of "Quality First, Customer - Oriented." Its product range has won extensive praise in the African, South American, and Southeast Asian markets, strengthening Beijun's position as a reliable and innovative industry leader.
