Optimal Wheel Mucking Loader Sell

Space Adaptability: Fits various tunnel sections, operational in both narrow and spacious environments.

Easy Maintenance: Semi-enclosed assembly design streamlines daily inspection and upkeep.

Stable Hydraulics: Adopts load-sensing hydraulic technology for steady, reliable operation without hidden risks.

Durable Structure: Scientific structural design with rational component matching prolongs equipment lifespan.

Contact Now

Product Details

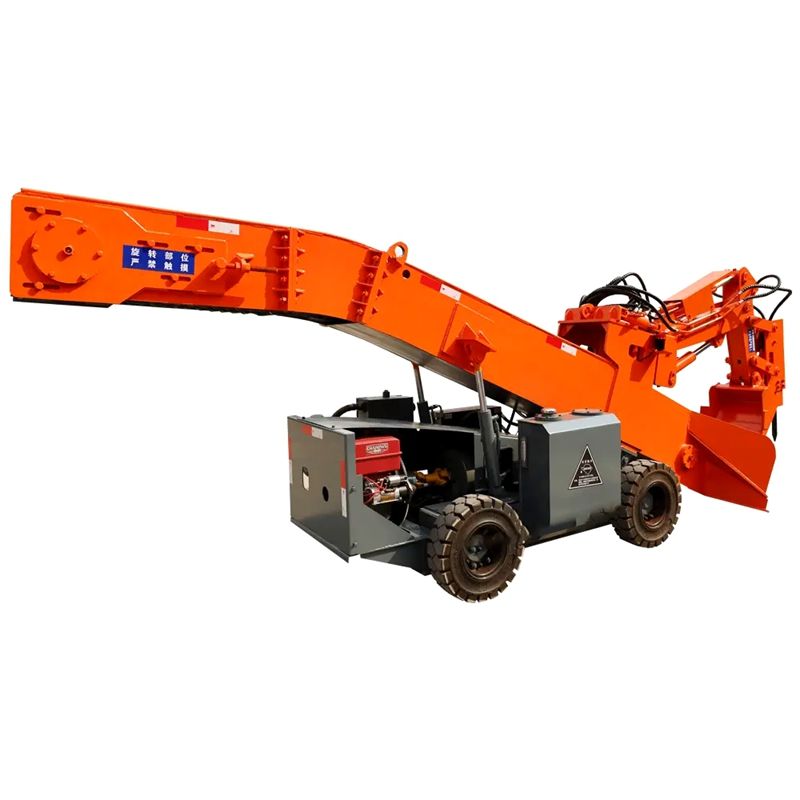

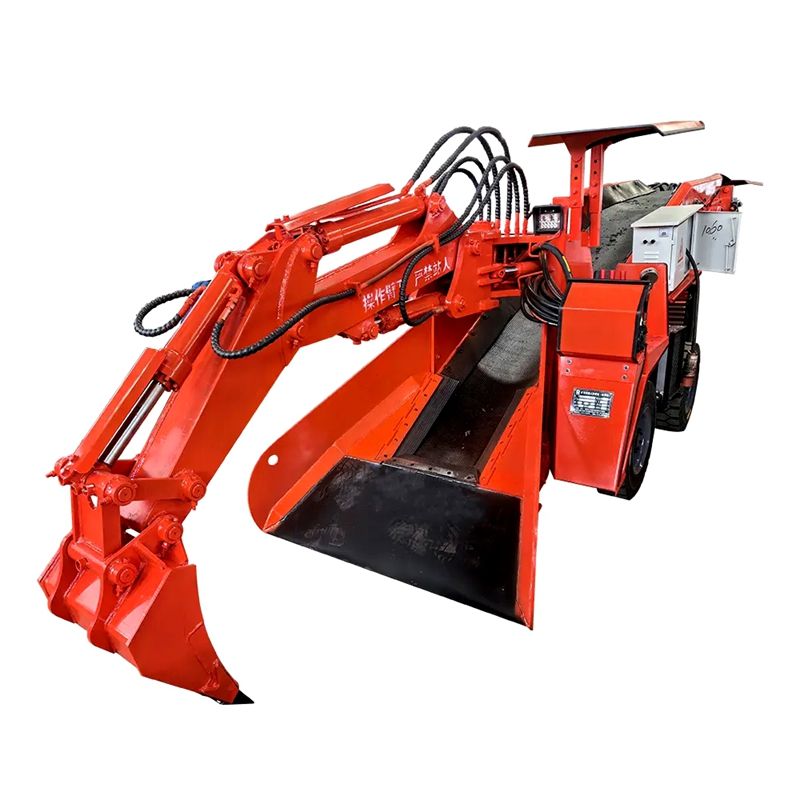

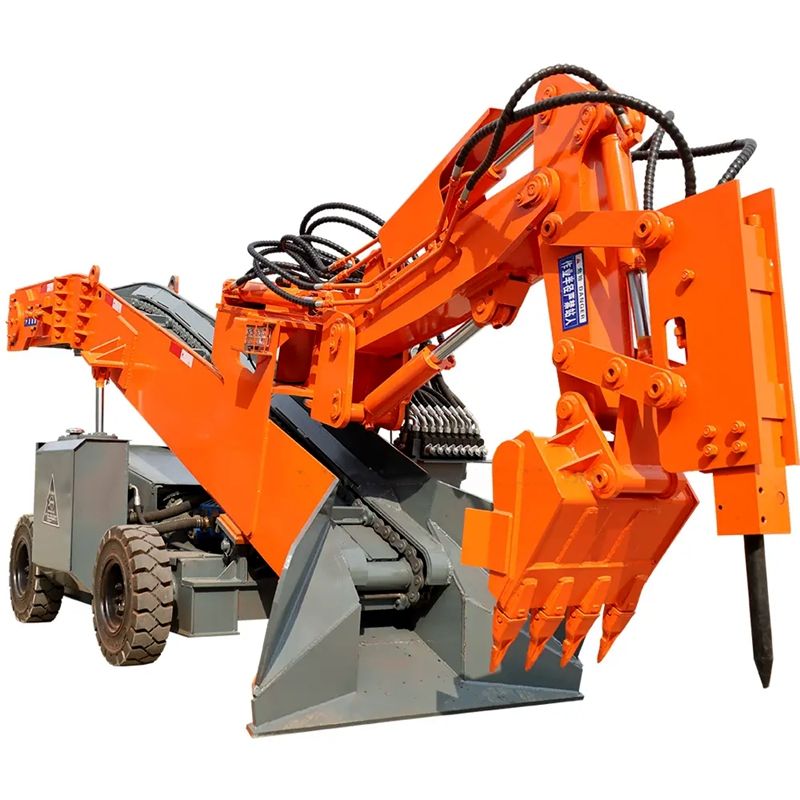

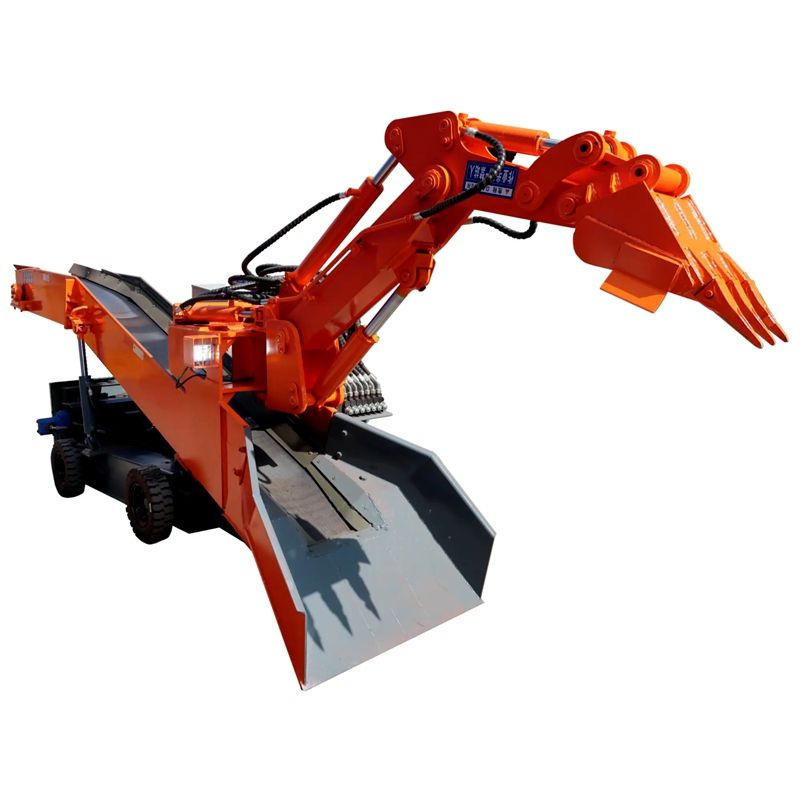

This machine adopts electric full - hydraulic transmission and has four functions: hydraulic walking, excavation and collection, conveying, and loading. It features a compact structure, large propelling force, and a wide mucking range. The main movements are controlled by pilot valves, ensuring easy and convenient operation, safety and comfort, high maneuverability, strong climbing ability, smooth operation without impact. It can load rocks across the entire section without leaving any dead corners, eliminating the need for manual assistance in cleaning the working face. This greatly improves work efficiency, reduces mining costs, and enhances economic benefits. A single unit can discharge 50 - 60 cubic meters of material per hour, replacing the work of more than 30 workers, reducing the number of operators, and simultaneously minimizing potential safety hazards.

Wheel Mucking Loader

DETAIL PRESENTATION

Wheel Mucking Loader

PRODUCT SELLING POINTS

01 Chassis and Tyre The multi-layer spring plates reinforced chassis is and robust tyres bring stability to the entire machine
	02 Simple Operation Straight-forward arrangement of levers to ensure a smooth operation in any working scenario.
03 Hydraulic Ram As a key component of operation effect, we use high quality hydraulic cylinders for the boom, dipper arm and other units.
	04 Core Engine Stable Diesel Engine or Electric Motor from Reliable Factory with high performance, powerful and speedy.
05 Conveying System Taking advantage of specially designed wear-resistant and durable conveying belt, withstanding all type of rock and gravels.
	06 Excavator Bucket By adoption of the similar excavation bucket and teeth, making the digging much easier and regaining efficiency.

Wheel Mucking Loader

PRODUCT SPECIFICATION

Model	BJ-60T-B
Loading Capacity (m³/h)	≤ 60
Total Machine Mass (kg)	3100
Wheelbase (A) (mm)	1480
Track Width (Front/Rear) (mm)	1180/1130
Minimum Turning Radius (m)	≤ 5
Excavation Width (B) (mm)	3000
Digging Reach (C) (mm)	≥ 1400
Excavation Depth (Z) (mm)	≤ 500
Excavation Height (H) (mm)	2150
Maximum Dumping Height (H) (mm)	1300 (Can be Raised)
Loading Length (D) (mm)	1500 (Can be Extended)
Gradability (°)	≤ 5
Maximum Dimension of Pass - through Material (mm)	≤ 600×450
Conveyor Belt Speed (m/s)	0.8±5%
Conveying Capacity (m³/h)	≥ 60
Main Motor Power (Kw)	11
Traveling Speed (Km/h)	1.45
Rated Working Pressure (Mpa)	12
Relief Valve Opening Pressure (Mpa)	12.5
Electrical Insulation Strength (MΩ) - Three - phase	≥ 1.5
Electrical Insulation Strength (MΩ) - Phase - to - phase	≥ 1.5
Maximum Dimensions in Transport State (mm) - Length	5500
Maximum Dimensions in Transport State (mm) - Width	1550
Maximum Dimensions in Transport State (mm) - Height	1650
Minimum Applicable Cross - section (㎡)	2.2×2.2

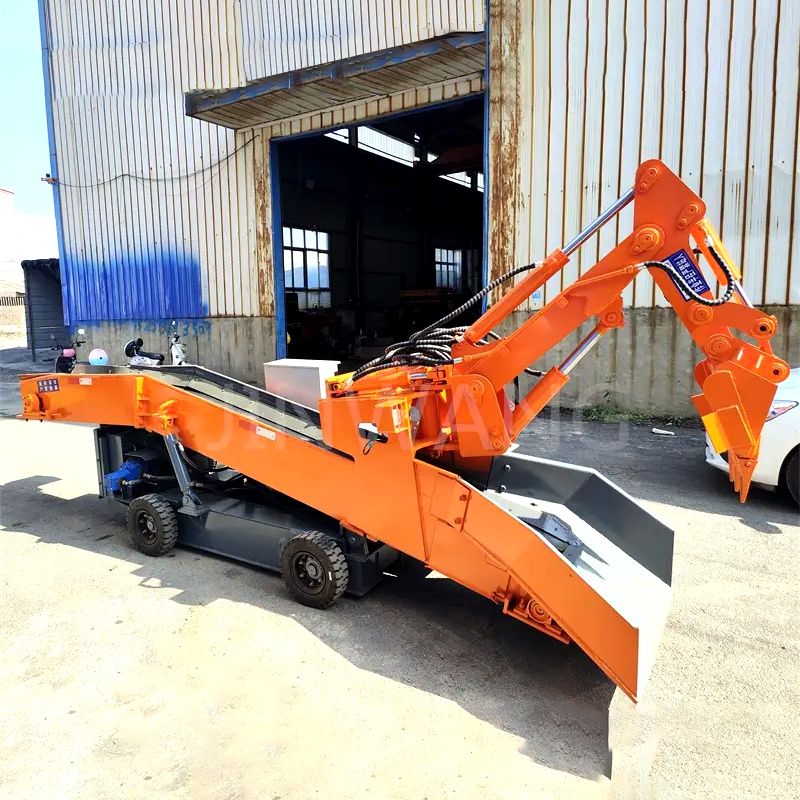

PRODUCT DISPLAY

Wheel Mucking Loader

PRODUCT APPLICATIONS

Wheel Mucking Loader

ABOUT US

Shandong Beijun Machinery Industry Co., Ltd. sets itself apart as a prominent enterprise that is devoted to the research, development, and production of mining and construction machinery. Positioned in Jining, Shandong, the company spans an area of 100 acres and has a 20,000 - square - meter production space. By leveraging advanced manufacturing technologies, Beijun can attain an annual production capacity of 4,000 mining trucks, 500 fully - hydraulic crawler vehicles, and 3,000 aerial work platform trucks.

Beijun has secured the ISO9001 quality management system certification and the EU CE approval. It strictly abides by mining safety production regulations. The firm deploys a comprehensive ERP system, integrating advanced information technology means to improve resource planning and management efficacy. Beijun mainly concentrates on manufacturing mining transportation vehicles, crawler haulage vehicles, and aerial work platform trucks.

Supported by a competent technical staff, strict quality control measures, modern testing equipment, and efficient production approaches, the company constantly offers high - quality products. Beijun has more than 200 employees, including 30 engineers, 40 salespersons, and 15 mechanical engineering professionals.

Committed to innovation and independent research and development, Beijun adheres to its core principles of "Quality Comes First, Customer - Centric." Its product portfolio has won wide acclaim in the African, South American, and Southeast Asian markets, enhancing Beijun's status as a reliable and innovative industry forerunner.
