Leading Hydraulic Mucking Machine Sale

Rapid Maintenance: Thanks to its well - engineered structure, it allows for quick identification of malfunctions, reducing both the time and effort required for upkeep.

Powerful Loading Capability: Demonstrates outstanding performance in the loading process, efficiently handling rock materials to boost construction productivity.

Steady Hydraulic System: Utilizes load - sensing hydraulic technology to ensure stable and reliable operation, eliminating potential safety hazards.

Sturdy Construction: With a scientifically designed structure and properly matched components, the equipment's service life is extended.

Contact Now

Product Details

The BJ - 120/22T - B1 wheeled mucking rock loader is a high - efficiency, uninterrupted - working machine for handling ore. Fundamentally, it is designed for digging out rock - formed mine roadways and semi - coal rock roadways. Additionally, it can be applied to loading operations in diversion tunnels, railway tunnel construction projects, and national defense cavern building works. This loader can be combined with the hydraulic mine drilling trucks produced by our company, achieving complete mechanization of mine excavation and significantly increasing the excavation speed. It is perfectly adapted to small - cross - section and sloped areas.

Wheel Mucking Loader

DETAIL PRESENTATION

Wheel Mucking Loader

PRODUCT SELLING POINTS

	01 Excavator Bucket By adoption of the similar excavation bucket and teeth, making the digging much easier and regaining efficiency.
02 Conveying System Taking advantage of specially designed wear-resistant and durable conveying belt, withstanding all type of rock and gravels.
	03 Core Engine Stable Diesel Engine or Electric Motor from Reliable Factory with high performance, powerful and speedy.
04 Hydraulic Ram As a key component of operation effect, we use high quality hydraulic cylinders for the boom, dipper arm and other units.
	05 Simple Operation Straight-forward arrangement of levers to ensure a smooth operation in any working scenario.
06 Chassis and Tyre The multi-layer spring plates reinforced chassis is and robust tyres bring stability to the entire machine

Wheel Mucking Loader

PRODUCT SPECIFICATION

Model	BJ-120/22T-B1
Loading Capacity (m³/h)	≤ 120
Total Machine Mass (kg)	4700±5%
Axle (Bridge) Distance (mm)	1900
Track (Wheel) Distance (mm)	1580/1450
Minimum Turning Radius (m)	≤ 5
Minimum Ground Clearance (mm)	≥ 190
Excavation Width (mm)	3800
Excavation Depth (mm)	≤ 500
Excavation Height (mm)	3000
Digging Reach (from Bucket Lip) (mm)	1800
Dumping Height (mm)	≥ 1750, Customizable
Dumping Distance (mm)	≥ 2200, Customizable
Output Volume (m³)	2
Adaptable Slope Gradient (°)	≤ 5 (Hard Ground)
Conveyor Belt Speed (m/s)	0.8±5%
Total Motor Power (Kw)	18.5
Traveling Speed (m/s)	1.45
Rated Working Pressure (Mpa)	12
Relief Valve Opening Pressure (Mpa)	12.5
Electrical Insulation - Three - phase (MΩ)	> 1.5
Electrical Insulation - Phase - to - phase (MΩ)	> 1.5
Dimensions - Length (mm)	7000±50
Dimensions - Width (mm)	2000±50
Dimensions - Height (mm)	2000±50
Minimum Applicable Tunnel Cross - section (㎡)	2.6×2.6

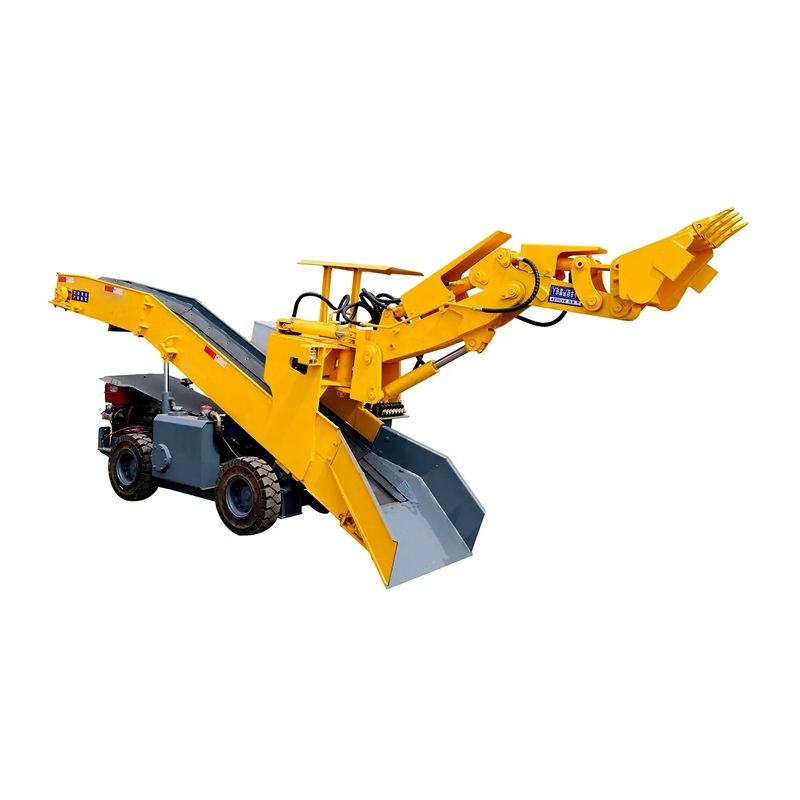

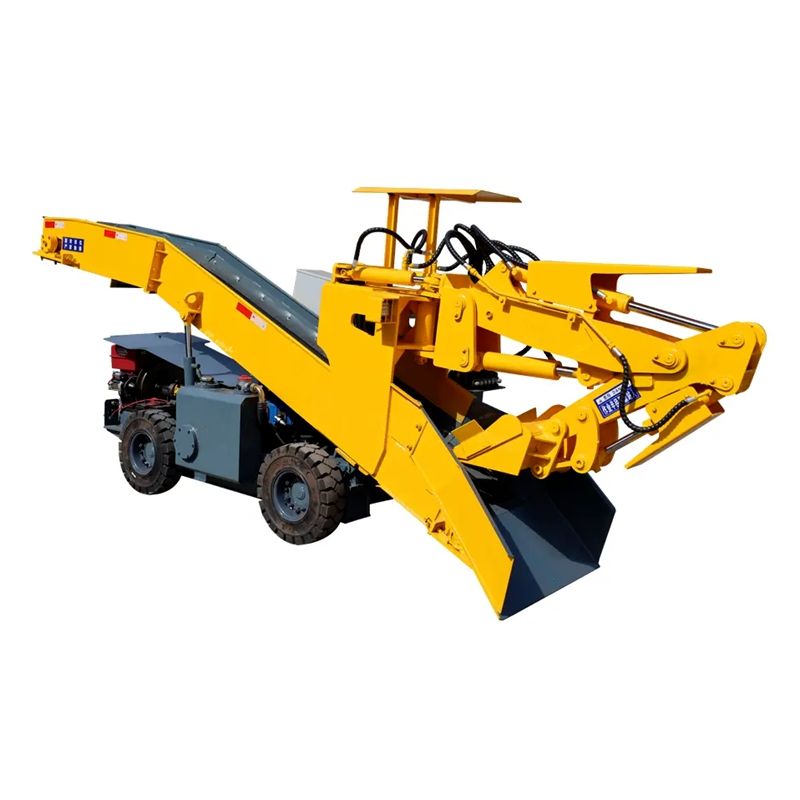

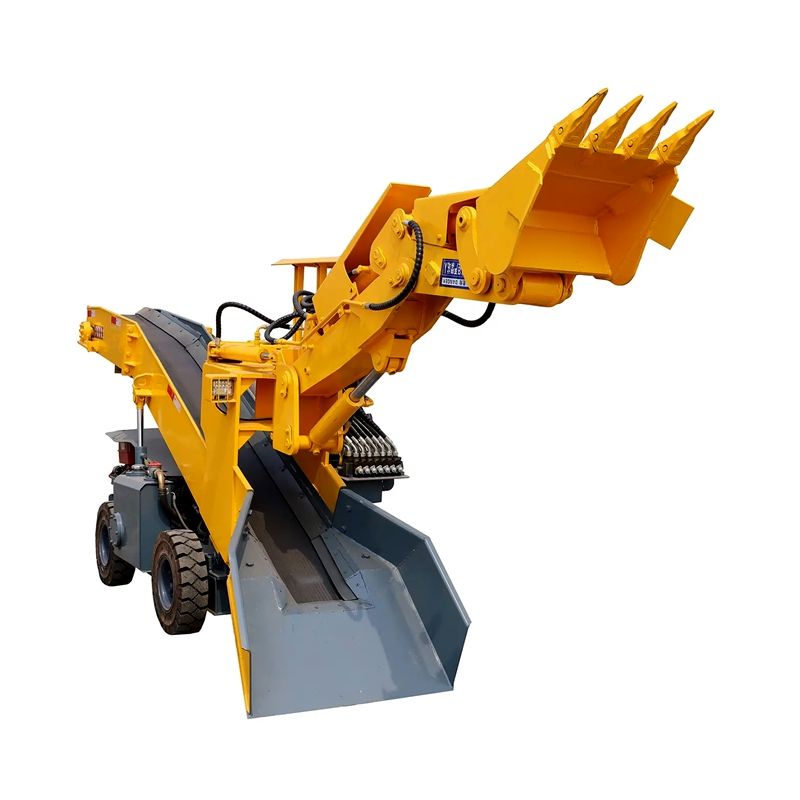

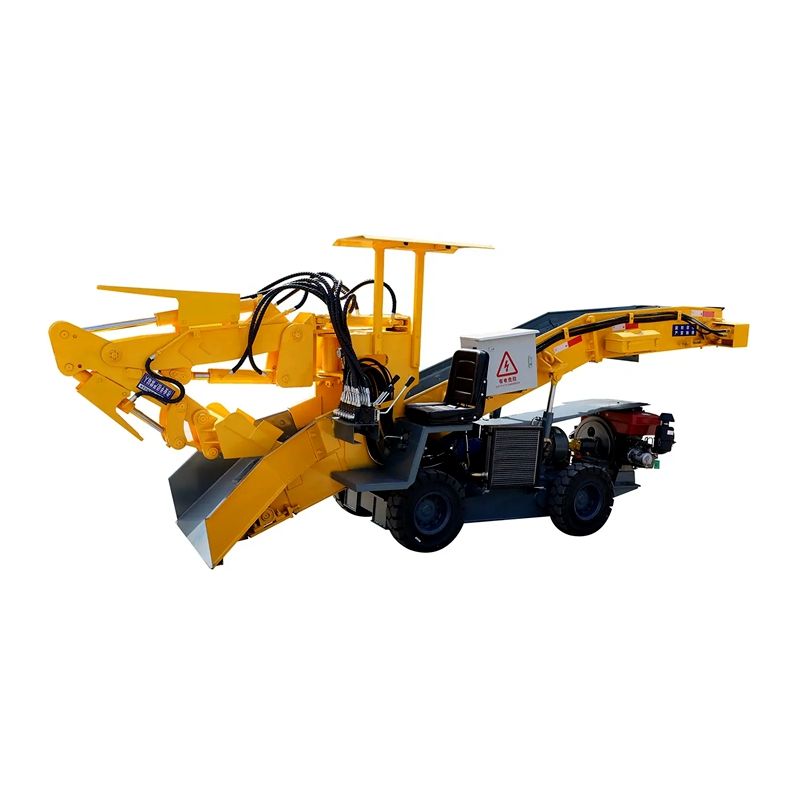

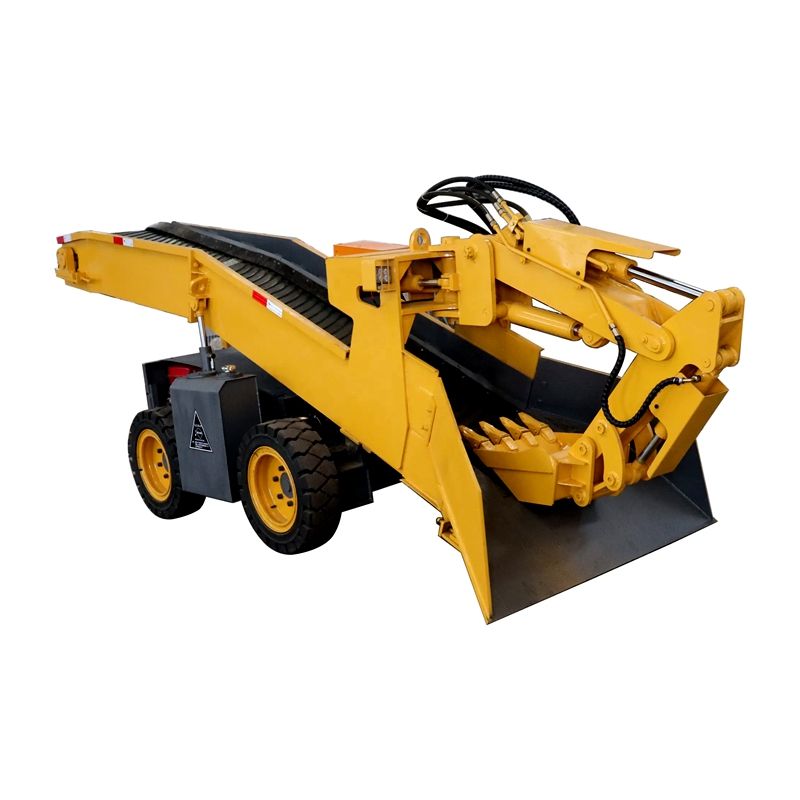

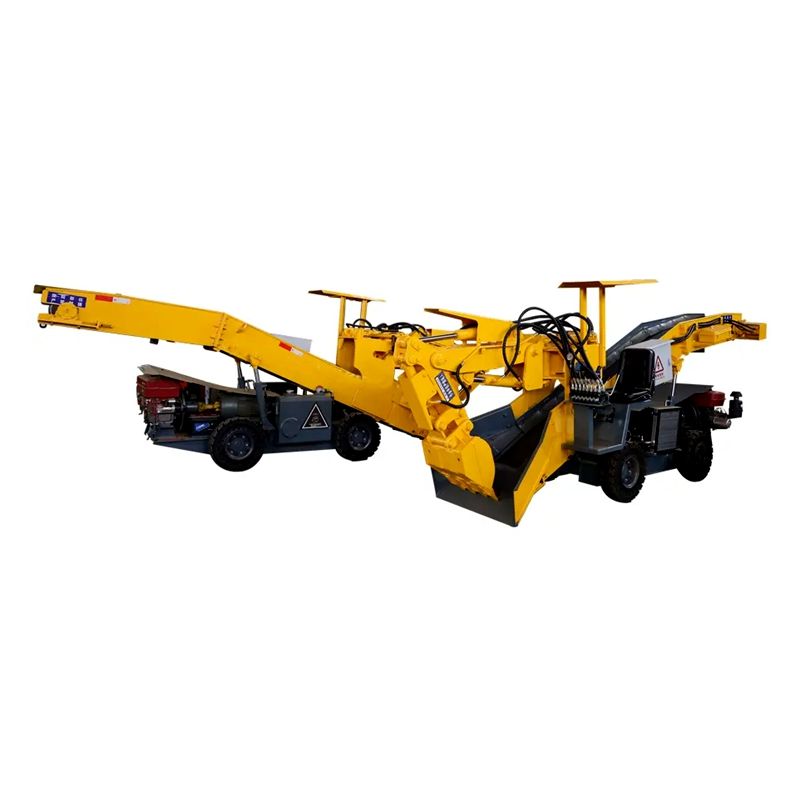

PRODUCT DISPLAY

Wheel Mucking Loader

PRODUCT APPLICATIONS

Wheel Mucking Loader

ABOUT US

Shandong Beijun Machinery Industry Co., Ltd. emerges as a preeminent enterprise, wholeheartedly committed to the research, development, and manufacturing of mining and construction machinery. Situated in Jining, Shandong, the company spans a sprawling 100 - acre area and houses a 20,000 - square - meter production plant. Through the application of state - of - the - art production technologies, Beijun achieves an annual output of 4,000 mining trucks, 500 fully - hydraulic crawler vehicles, and 3,000 aerial work platform trucks.

Beijun has successfully obtained the ISO9001 quality management system accreditation and EU CE certification, and strictly complies with mining safety and production norms. The company has implemented a comprehensive ERP system, incorporating advanced information technology solutions to optimize resource planning and boost management effectiveness. Beijun primarily focuses on the production of mining transport vehicles, crawler haulage equipment, and aerial work platform trucks.

Backed by a skilled technical team, strict quality control processes, contemporary testing facilities, and efficient production strategies, the company continuously provides top - notch products. Beijun employs over 200 individuals, including 30 engineers, 40 sales representatives, and 15 mechanical engineering experts.

Dedicated to innovation and independent research and development, Beijun firmly adheres to its core tenets of "Quality - Centric, Customer - Oriented." Its product portfolio has received widespread praise in the African, South American, and Southeast Asian markets, further solidifying Beijun's status as a trustworthy and innovative industry pioneer.
