Hot Sale Powerful Wheel Mucking Loader

Versatile Dual Power System: The electric-diesel dual drive configuration allows for seamless transitions between underground and surface operations, adapting effortlessly to different working environments.

Convenient Maintenance: Thanks to its semi-enclosed modular design, routine checks and maintenance tasks are made more straightforward and efficient.

Intuitive Operation: With an easy-to-use control system, the equipment significantly reduces the complexity of operation, ensuring accessibility for operators of all skill levels.

Rapid Repair Capability: The scientifically engineered structure enables quick identification of malfunctions, making the repair process more time-efficient and less labor-intensive.

Contact Now

Product Details

The high - efficiency wheel mucking loader is meticulously crafted for tunnel construction and debris evacuation, offering robust capabilities within constricted areas. Fitted with a state - of - the - art tracking mechanism, this equipment ensures superior maneuverability and steadfast stability, even in tough subterranean conditions. It combines various operations such as digging, loading, and hauling, guaranteeing peak efficiency and minimizing operational expenditures.

This loader is equipped with a sophisticated electro - hydraulic control system, providing two power modes: electric and diesel. For underground work, electric power is the preferred option as it helps cut down on emissions and heightens safety. With its space - saving design and durable construction, the loader is a perfect fit for tunneling projects, delivering consistent performance and maximizing productivity.

DETAIL PRESENTATION

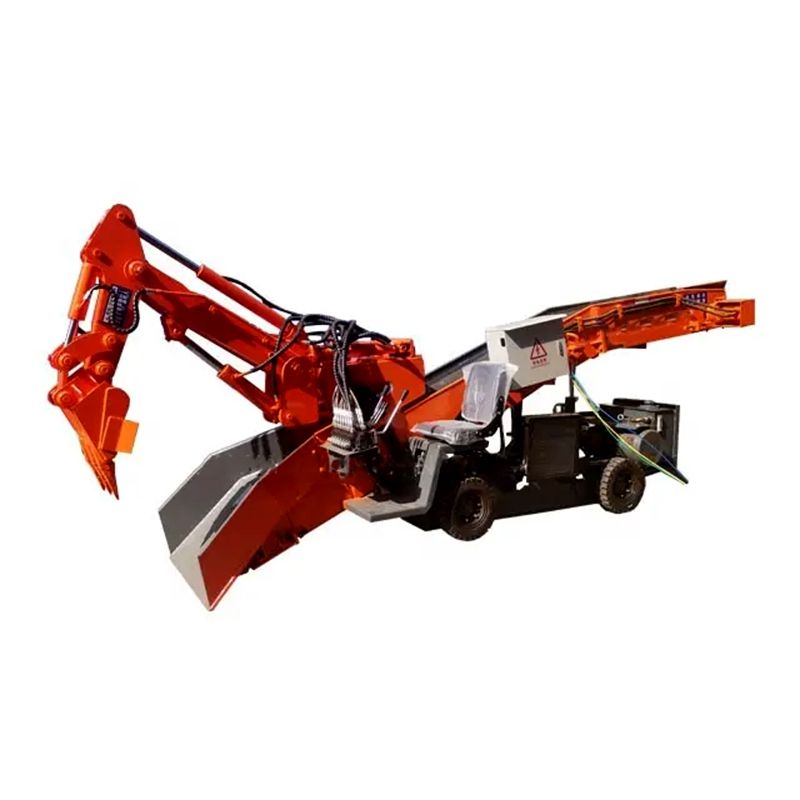

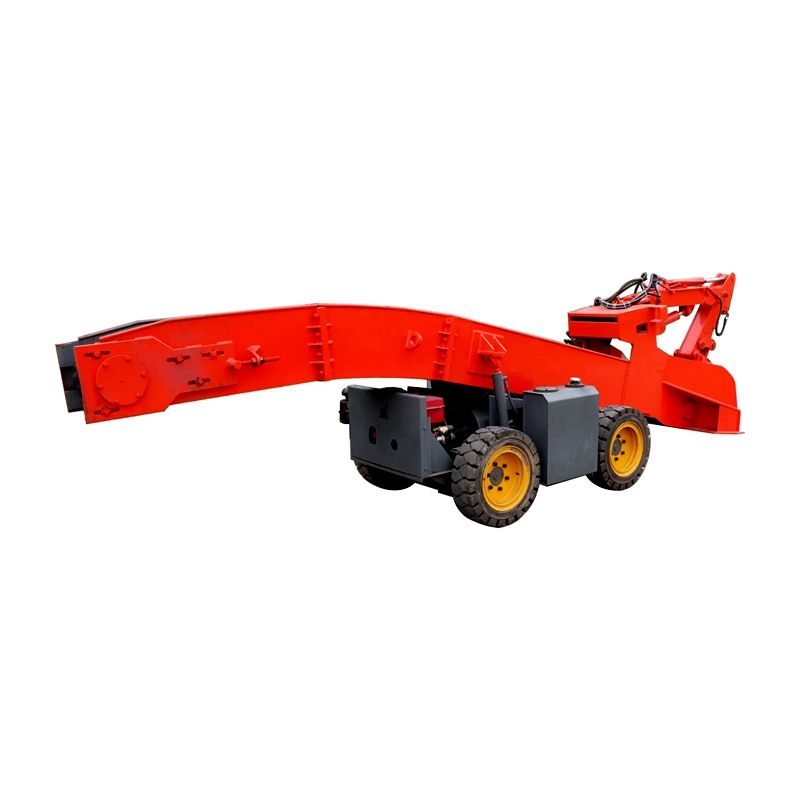

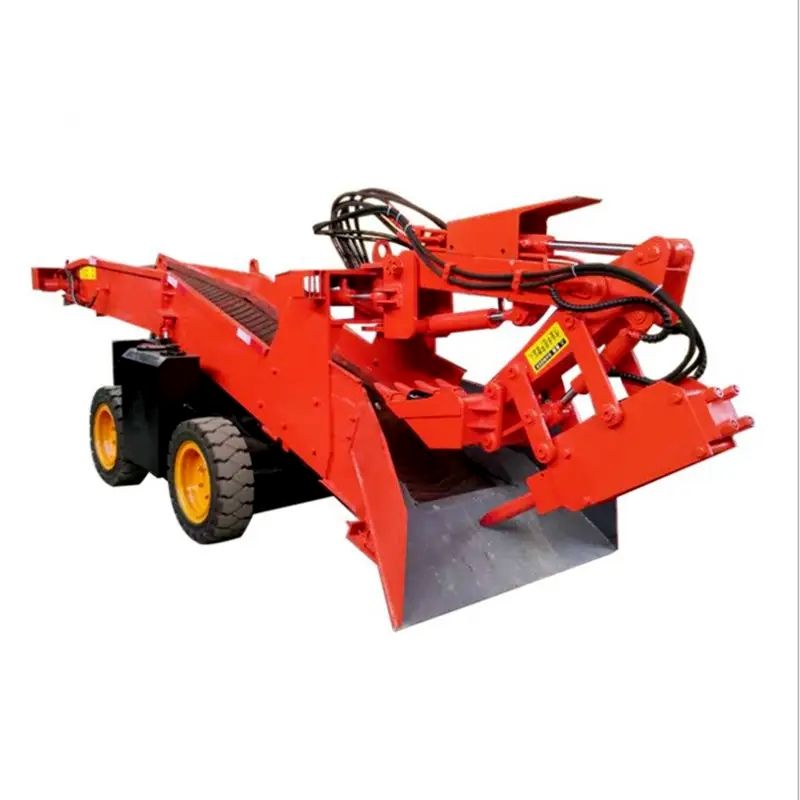

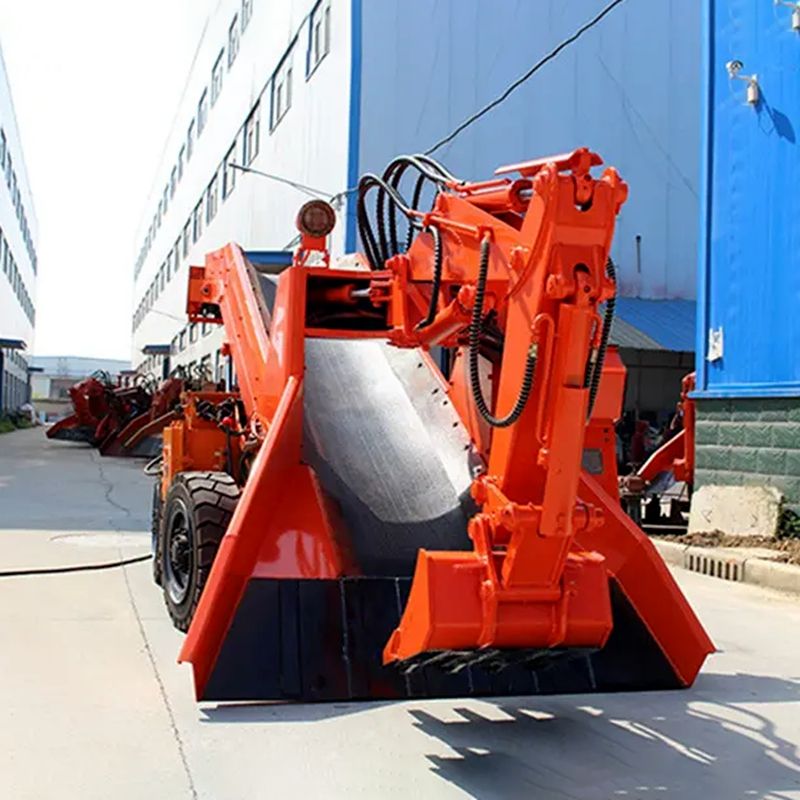

Wheel Mucking Loader

PRODUCT SELLING POINTS

01 Chassis and Tyre The multi-layer spring plates reinforced chassis is and robust tyres bring stability to the entire machine
	02 Simple Operation Straight-forward arrangement of levers to ensure a smooth operation in any working scenario.
03 Hydraulic Ram As a key component of operation effect, we use high quality hydraulic cylinders for the boom, dipper arm and other units.
	04 Core Engine Stable Diesel Engine or Electric Motor from Reliable Factory with high performance, powerful and speedy.
05 Conveying System Taking advantage of specially designed wear-resistant and durable conveying belt, withstanding all type of rock and gravels.
	06 Excavator Bucket By adoption of the similar excavation bucket and teeth, making the digging much easier and regaining efficiency.

Wheel Mucking Loader

PRODUCT SPECIFICATION

Model	-	BJ-70T1-C
Overall Dimensions (Length × Width × Height)	mm	5500 × 1500 × 1500
Loading Capacity	m³/h	≤ 70
Total Machine Mass	kg	3100
Excavation Width	mm	3000
Excavation Height	mm	2000
Excavation Depth	mm	≤ 550
Applicable Climbing Gradient	°	≤ 5 (Hard Ground)
Minimum Cross - section of Applicable Roadway	m	2.2 × 2.2
Digging Reach	mm	1600
Minimum Turning Radius	°	≤ 5
Dumping Height	mm	1500 (Can be Increased)
Dumping Distance	mm	1600 (Can be Extended)
Motor Power	kW	15
Traveling Speed	m/s	1.45 ± 5%
Maximum Dimension of Pass - through Material	mm	600 × 500
Track Width	mm	1250/1220
Wheelbase	mm	1550

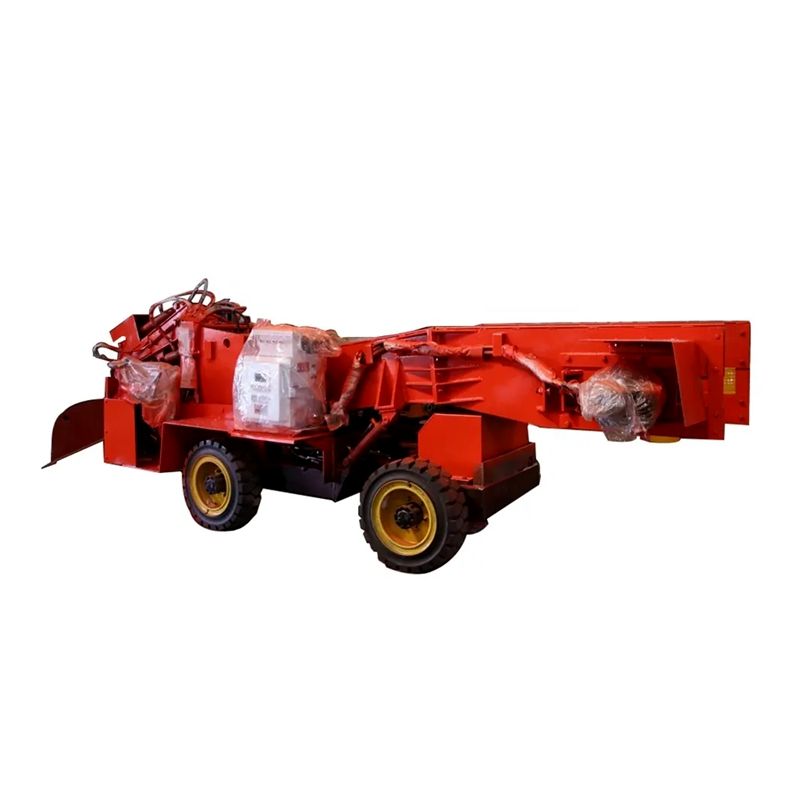

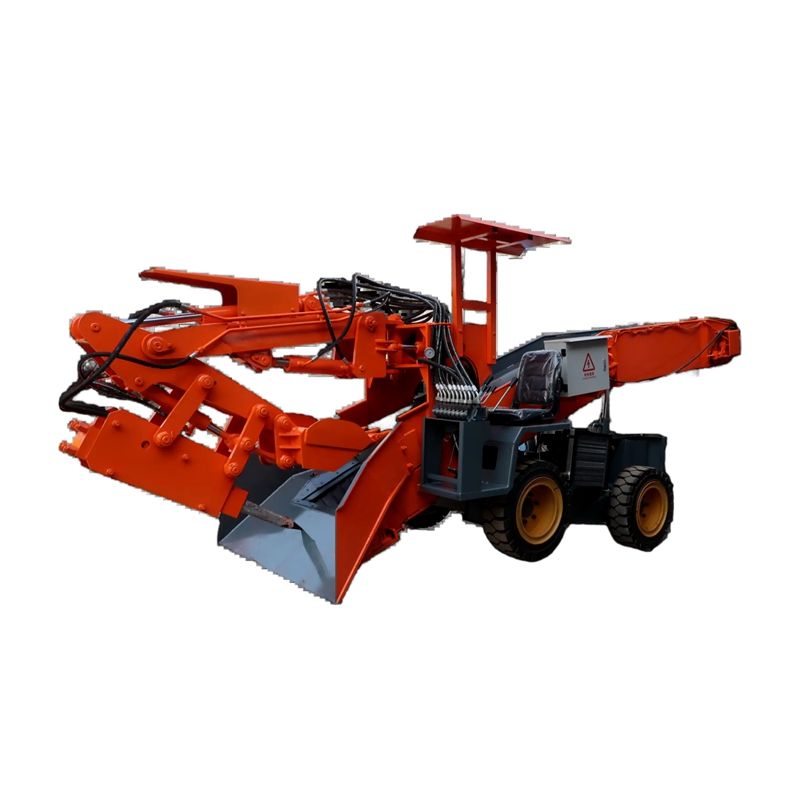

PRODUCT DISPLAY

Wheel Mucking Loader

PRODUCT APPLICATIONS

Wheel Mucking Loader

ABOUT US

Shandong Beijun Machinery Industry Co., Ltd. stands out as a leading entity in the research, innovation, and manufacturing of mining and construction machinery. Located in Jining, Shandong, the company spans an expansive area of 100 acres and features a 20,000 - square - meter production facility. By leveraging advanced manufacturing technologies, Beijun has an annual production capacity of 4,000 mining trucks, 500 fully hydraulic crawler vehicles, and 3,000 aerial work platform trucks.

Beijun has been awarded the ISO9001 quality management system certification and the EU CE mark. It strictly adheres to mining safety production standards. The company has implemented a comprehensive enterprise resource planning (ERP) system, integrating advanced information technology solutions to enhance resource planning and management efficiency. Beijun's main focus lies in the production of mining transport vehicles, crawler hauling equipment, and aerial work platform trucks.

With the support of a highly proficient technical team, rigorous quality control procedures, modern testing equipment, and efficient production strategies, the company consistently supplies high - quality products. Beijun employs over 200 staff members, including 30 engineers, 40 sales professionals, and 15 mechanical engineering specialists.

Committed to innovation and independent R&D, Beijun firmly upholds its core principles of "Quality First, Customer - Oriented." Its product range has earned widespread acclaim in the African, South American, and Southeast Asian markets, further solidifying Beijun's reputation as a dependable and innovative industry leader.
