Flash Sale Reliable Wheel Mucking Loader

Outstanding Energy Efficiency: Streamlines energy usage, minimizing wastage and ensuring long - term cost -effectiveness.

Intuitive Operation: With an easy - to - use control system, it simplifies operations, making it accessible for all users.

Speedy Maintenance: Its well - designed structure allows for quick fault diagnosis, saving both time and labor during upkeep.

Comprehensive Productivity: Combines excavation, loading, and transportation functions, guaranteeing a smooth and efficient workflow.

Contact Now

Product Details

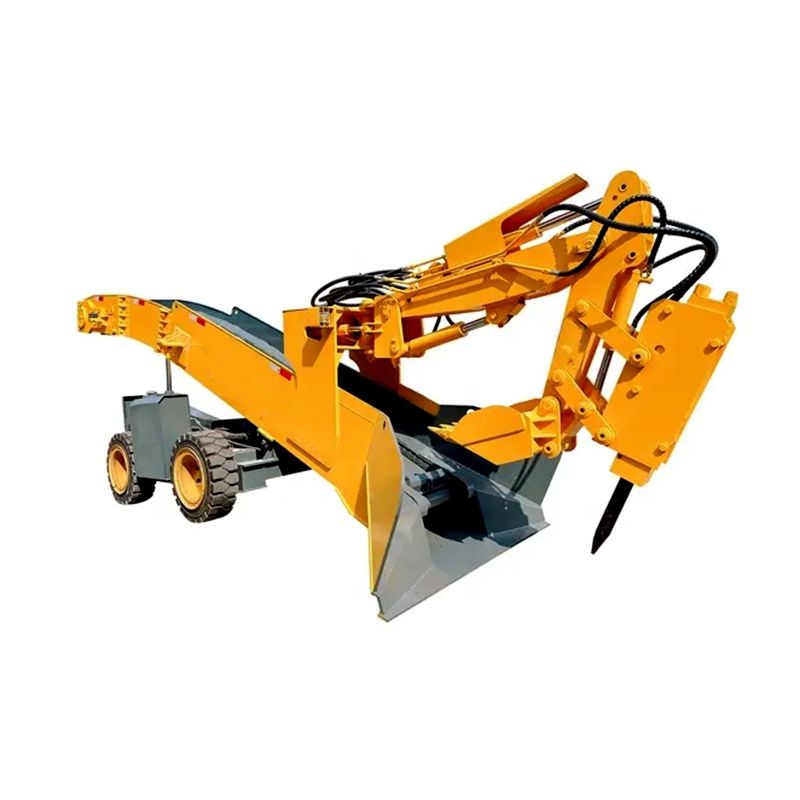

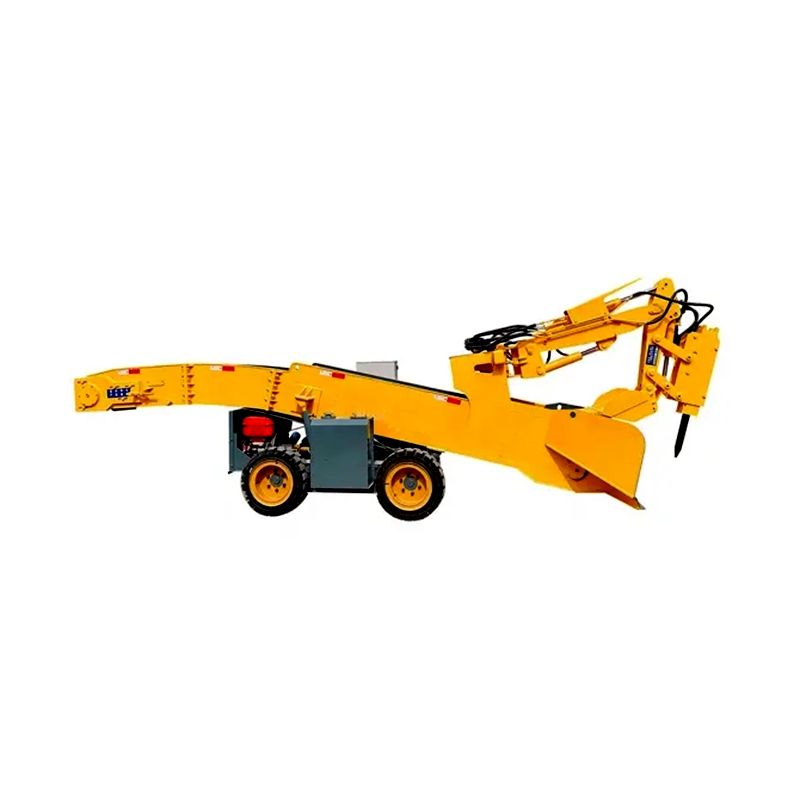

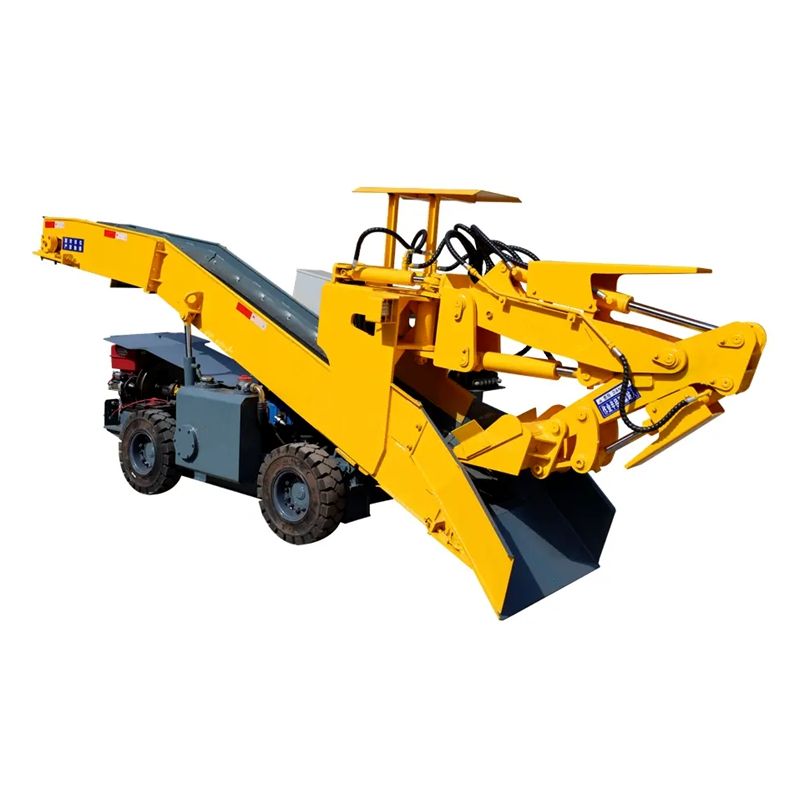

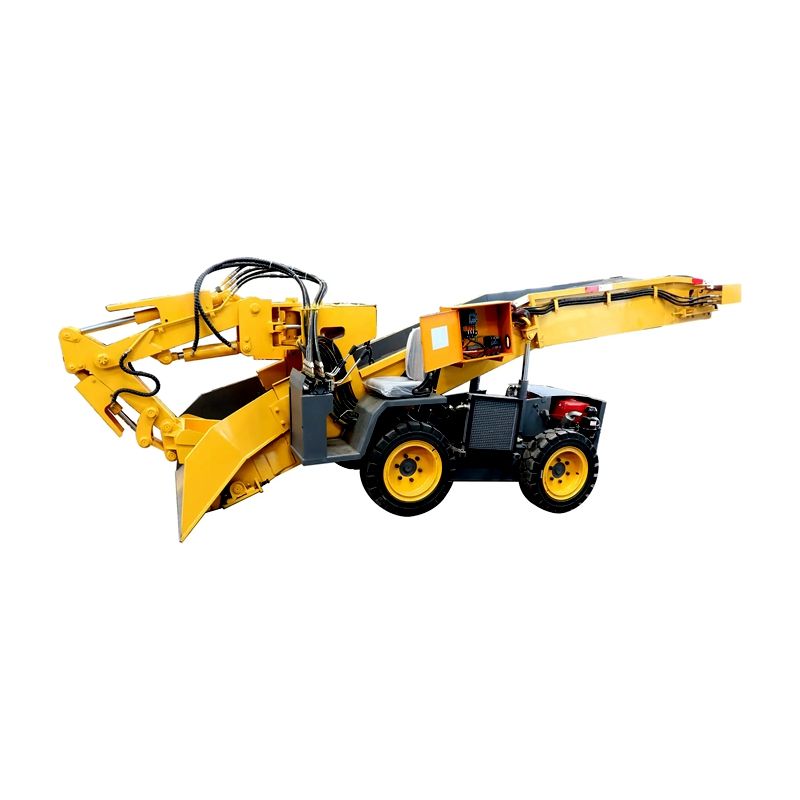

The BJ-70T-C wheeled mucking rock loader is a high - efficiency equipment engineered for uninterrupted ore extraction operations. Fundamentally, it is used in the excavation of rock - based and semi - coal rock mine roadways. Moreover, it can be applied to loading activities in diversion tunnels, railway tunnel construction projects, and the building of national defense caverns.

This loader can be perfectly coordinated with our company's hydraulic mine drilling trucks. When combined, they bring automation to the mine excavation process and substantially boost the excavation rate. It is especially well - adapted for operations in confined cross - section areas and on inclined surfaces.

Wheel Mucking Loader

DETAIL PRESENTATION

Wheel Mucking Loader

PRODUCT SELLING POINTS

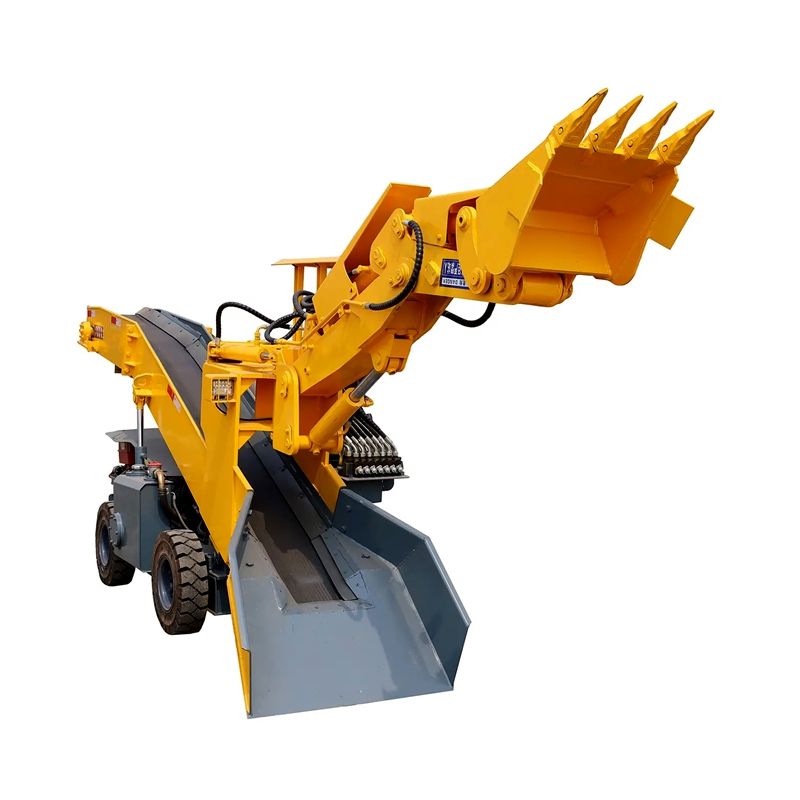

	01 Excavator Bucket By adoption of the similar excavation bucket and teeth, making the digging much easier and regaining efficiency.
02 Conveying System Taking advantage of specially designed wear-resistant and durable conveying belt, withstanding all type of rock and gravels.
	03 Core Engine Stable Diesel Engine or Electric Motor from Reliable Factory with high performance, powerful and speedy.

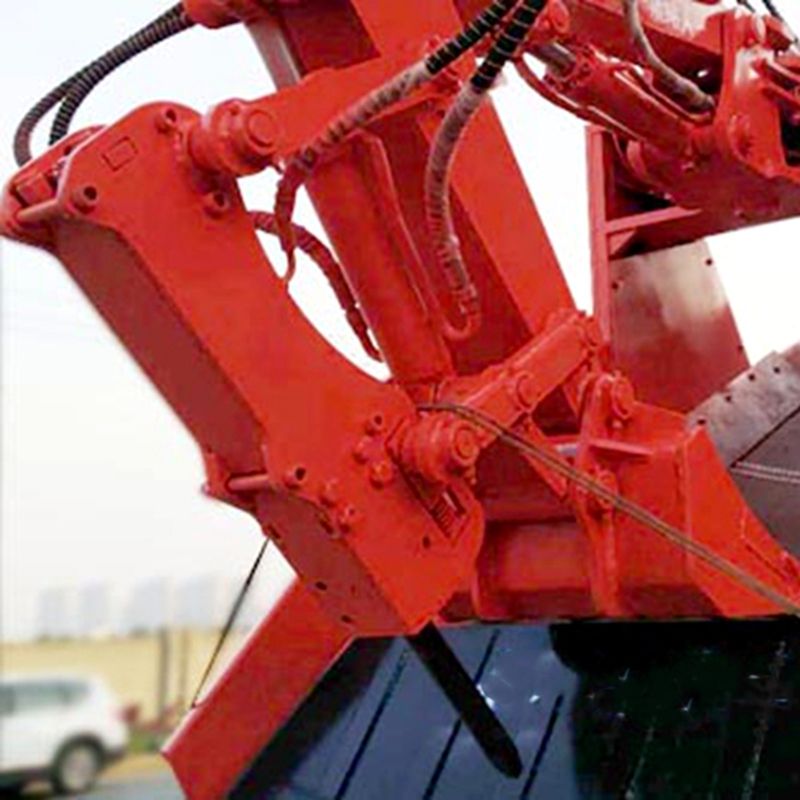

04 Hydraulic Ram As a key component of operation effect, we use high quality hydraulic cylinders for the boom, dipper arm and other units.
	05 Simple Operation Straight-forward arrangement of levers to ensure a smooth operation in any working scenario.
06 Chassis and Tyre The multi-layer spring plates reinforced chassis is and robust tyres bring stability to the entire machine

Wheel Mucking Loader

PRODUCT SPECIFICATION

Model	-	BJ-70T-C
Overall Dimensions (Length×Width×Height)	mm	5500×1500×1500
Loading Capacity	m³/h	≤70
Total Machine Mass	kg	3100
Excavation Width	mm	3000
Excavation Height	mm	2000
Excavation Depth	mm	≤550
Applicable Climbing Gradient	(°)	≤5 (Hard Ground)
Minimum Cross - section of Applicable Roadway	m	2.2×2.2
Digging Reach	mm	1600
Minimum Turning Radius	(°)	≤5
Dumping Height	mm	1500 (Can be Increased)
Dumping Distance	mm	1600 (Can be Extended)
Motor Power	kw	15
Traveling Speed	m/s	1.45±5%
Maximum Dimension of Pass - through Material	mm	600×500
Track Width	mm	1250/1220
Wheelbase	mm	1550

PRODUCT DISPLAY

Wheel Mucking Loader

PRODUCT APPLICATIONS

Wheel Mucking Loader

ABOUT US

Shandong Beijun Machinery Industry Co., Ltd. distinguishes itself as a cutting - edge enterprise dedicated to the research, development, and fabrication of mining and construction machinery. Situated in Jining, Shandong, the company encompasses an area of 100 acres and operates a 20,000 - square - meter manufacturing plant. By applying advanced manufacturing technologies, Beijun is able to produce 4,000 mining trucks, 500 fully hydraulic crawler vehicles, and 3,000 aerial work platform trucks annually.

Beijun has obtained the ISO9001 quality management system certification and meets EU CE standards, strictly abiding by mining safety regulations. The company implements an all - inclusive ERP system, incorporating sophisticated IT solutions to enhance resource planning and operational effectiveness. Its main focus lies in the production of mining transport vehicles, crawler hauling equipment, and aerial work platforms.

Backed by a proficient technical team, strict quality control procedures, contemporary testing facilities, and efficient production methods, the company continuously supplies high - quality products. With a workforce of over 200 employees, including 30 engineers, 40 sales professionals, and 15 mechanical engineering experts, Beijun combines professional knowledge with innovative thinking.

Devoted to innovation and independent research and development, Beijun firmly upholds its core tenets of "Quality Uppermost, Customer - Oriented." Its product range has received wide acclaim in the African, South American, and Southeast Asian markets, further strengthening the company's standing as a reliable and innovative industry pioneer.
