Exceptional Wheel Mucking Loader Buy

Versatile Spatial Compatibility: Capable of seamlessly integrating into diverse tunnel cross - sections, it can operate effectively in both constricted and roomy environments.

Exceptional Terrain Handling: Boasting robust climbing capabilities, it can conquer tunnel inclines and adeptly navigate intricate terrains with ease.

Responsive Maneuverability: With a minimal turning radius, it can effortlessly navigate through tight spots, enabling smooth and flexible operation.

Ideal Sizing: Its dimensions are perfectly suited for construction sites, streamlining the installation process and enhancing usability.

Contact Now

Product Details

This equipment employs an electric full - hydraulic transmission system, integrating four essential functions: hydraulic movement, excavation and collection, material conveyance, and loading. Its streamlined and compact structure enables it to generate substantial pushing force and cover a broad mucking range. The primary operations are managed by pilot - operated valves, ensuring an intuitive and straightforward operation. This not only guarantees safety and comfort but also offers excellent maneuverability, robust climbing performance, and a stable, vibration - free operation.

Capable of loading rocks across the entire cross - section without any omission，it eliminates the necessity for manual surface cleaning. This significantly boosts work productivity, cuts down on mining expenses, and maximizes economic returns. With a material unloading capacity of 50 - 60 cubic meters per hour, a single unit can effectively substitute the workload of over 30 workers. This reduction in the number of operators not only enhances labor efficiency but also minimizes potential work - related safety hazards.

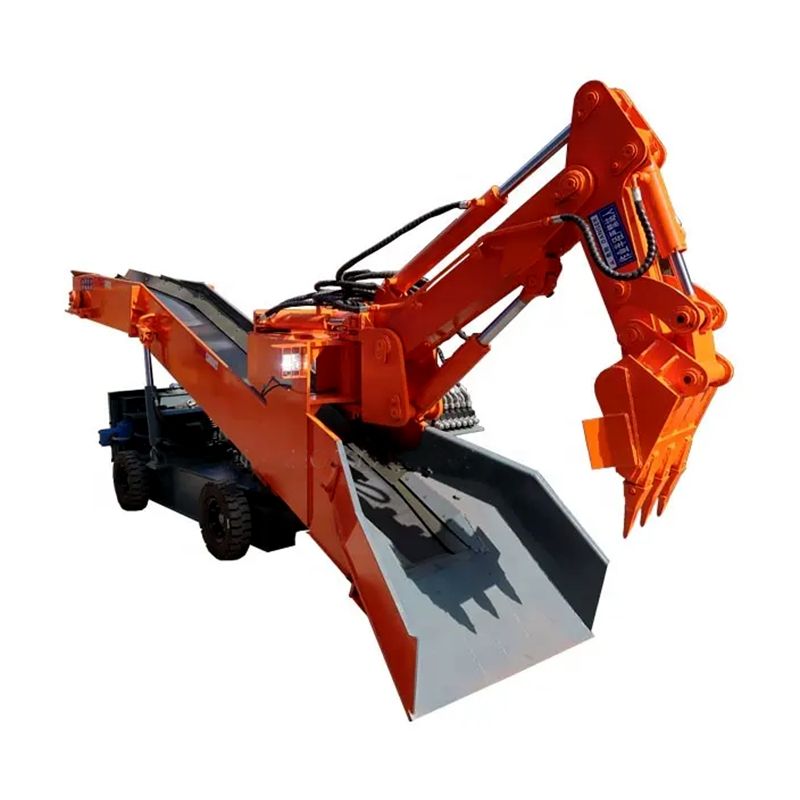

Wheel Mucking Loader

DETAIL PRESENTATION

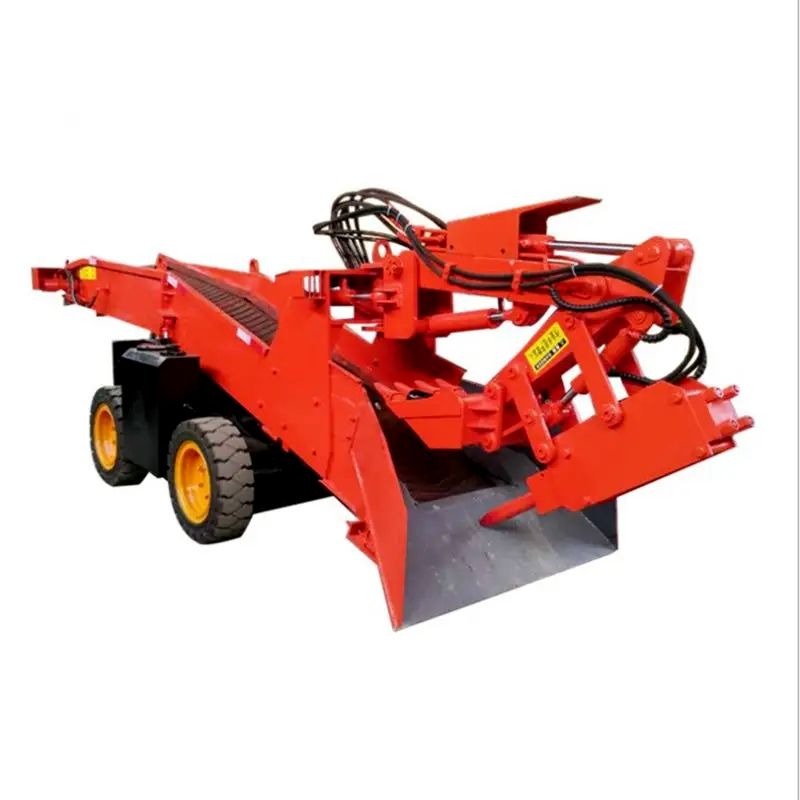

Wheel Mucking Loader

PRODUCT SELLING POINTS

01 Chassis and Tyre The multi-layer spring plates reinforced chassis is and robust tyres bring stability to the entire machine
	02 Simple Operation Straight-forward arrangement of levers to ensure a smooth operation in any working scenario.
03 Hydraulic Ram As a key component of operation effect, we use high quality hydraulic cylinders for the boom, dipper arm and other units.
	04 Core Engine Stable Diesel Engine or Electric Motor from Reliable Factory with high performance, powerful and speedy.
05 Conveying System Taking advantage of specially designed wear-resistant and durable conveying belt, withstanding all type of rock and gravels.
	06 Excavator Bucket By adoption of the similar excavation bucket and teeth, making the digging much easier and regaining efficiency.

Wheel Mucking Loader

PRODUCT SPECIFICATION

Model	BJ1.3-60T-B2
Loading Capacity (m³/h)	≤ 60
Total Machine Mass (kg)	Approximately 2750±5%
Wheelbase (A) (mm)	1550
Track Width (Front/Rear) (mm)	1110/1190
Minimum Turning Radius (m)	≤ 5
Excavation Width (B) (mm)	3000
Digging Reach (C) (mm)	≥ 1400
Excavation Depth (Z) (mm)	≤ 500
Excavation Height (H) (mm)	2100
Maximum Dumping Height (H) (mm)	1300 (Can be Raised)
Loading Length (D) (mm)	1500 (Can be Extended)
Gradability (°)	≤ 5
Maximum Dimension of Pass - through Material (mm)	≤ 600×450
Conveyor Belt Speed (m/s)	0.8±5%
Conveying Capacity (m³/h)	≥ 60
Main Motor Power (Kw)	11
Traveling Speed (Km/h)	1.45
Rated Working Pressure (Mpa)	12
Relief Valve Opening Pressure (Mpa)	12.5
Electrical Insulation Strength (MΩ) - Three - phase	≥ 1.5
Electrical Insulation Strength (MΩ) - Phase - to - phase	≥ 1.5
Maximum Dimensions in Transport State (mm) - Length	5300±50
Maximum Dimensions in Transport State (mm) - Width	1300±50
Maximum Dimensions in Transport State (mm) - Height	1400±50
Minimum Applicable Cross - section (㎡)	2.2×2.2

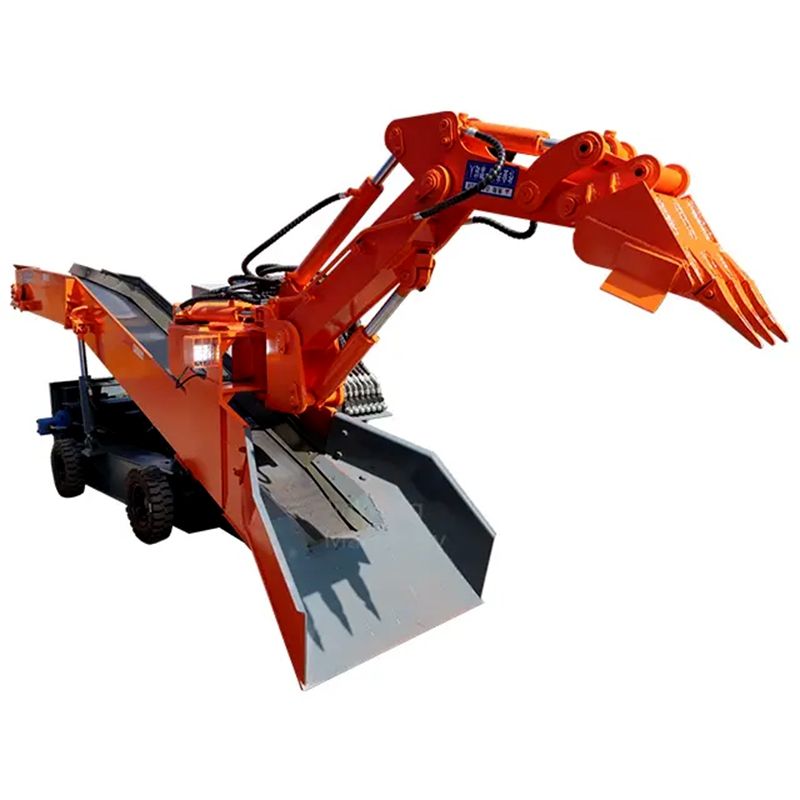

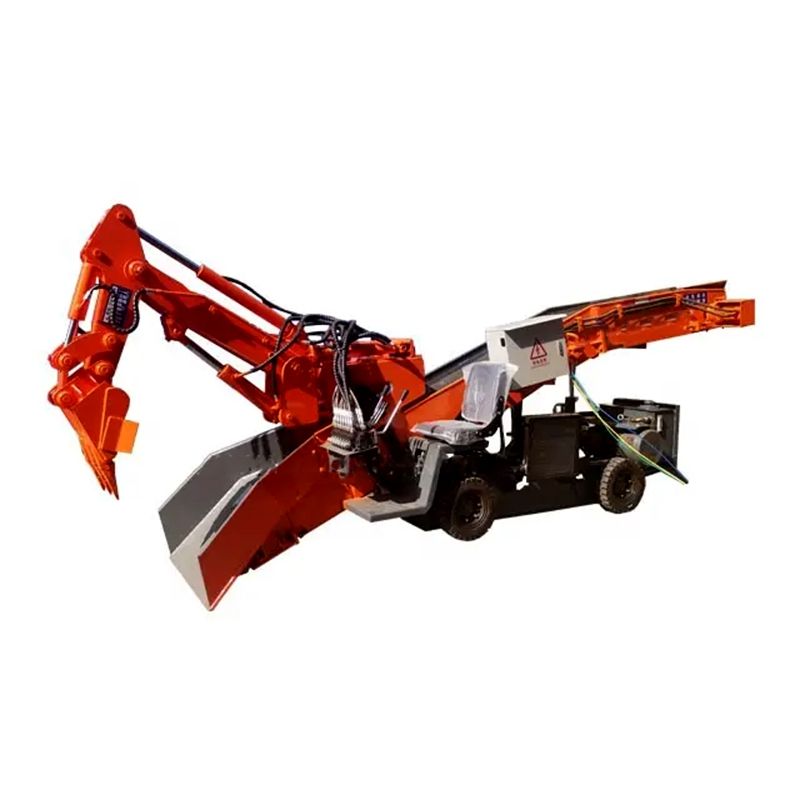

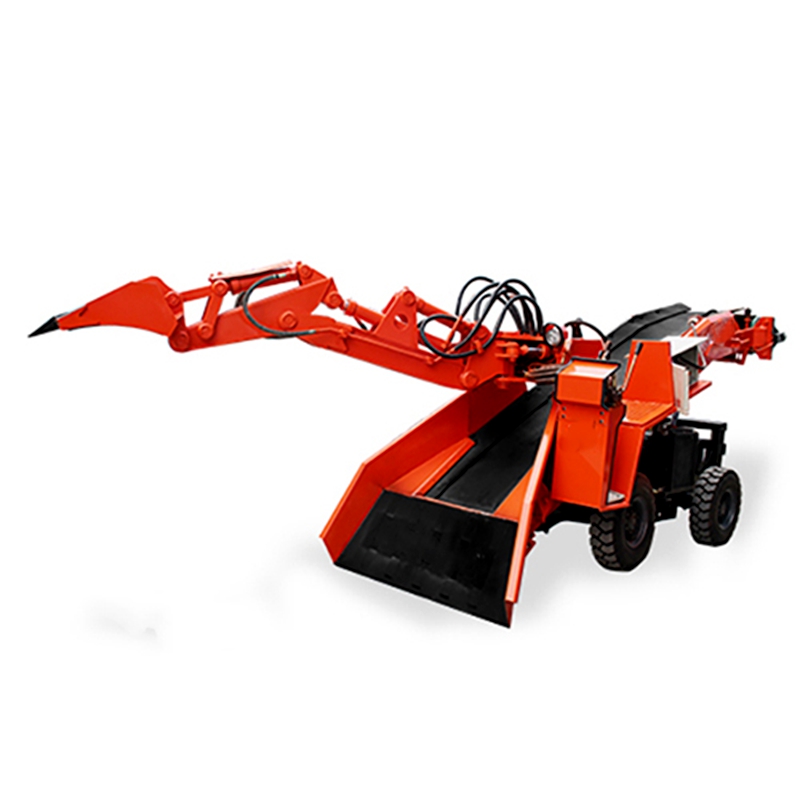

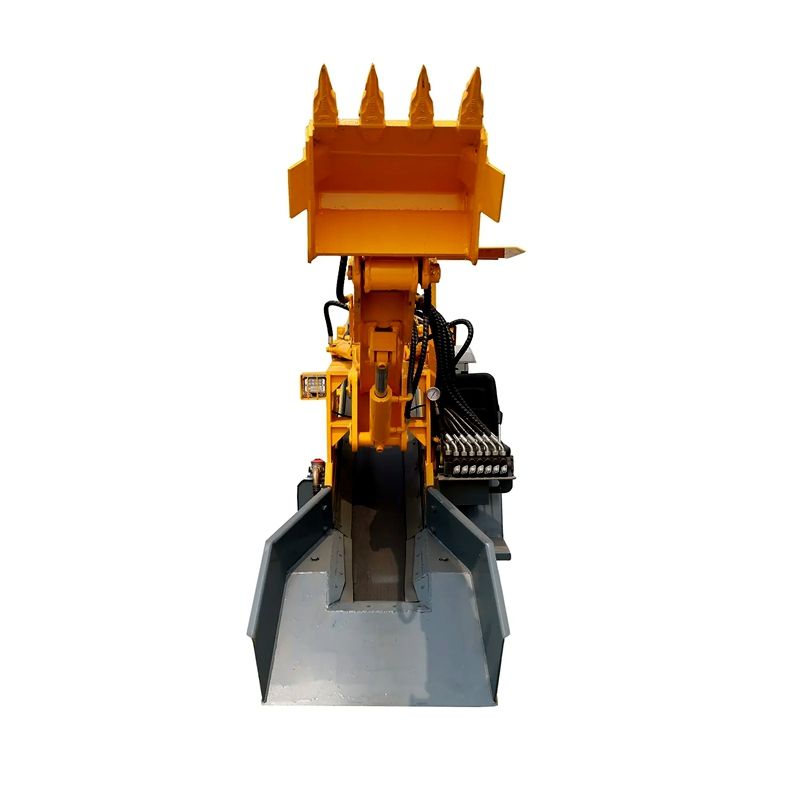

PRODUCT DISPLAY

Wheel Mucking Loader

PRODUCT APPLICATIONS

Wheel Mucking Loader

ABOUT US

Shandong Beijun Machinery Industry Co., Ltd. emerges as a top - tier enterprise, wholeheartedly dedicated to the research, development, and production of mining and construction machinery. Located in Jining, Shandong, the company sprawls across 100 acres of land, boasting a 20,000 - square - meter manufacturing plant. Through the utilization of cutting - edge production technologies, Beijun achieves an annual manufacturing capacity of 4,000 mining trucks, 500 fully hydraulic crawler vehicles, and 3,000 aerial work platform trucks.

Beijun has successfully obtained the ISO9001 quality management system accreditation and the EU CE certification. It scrupulously complies with mining safety and production norms. The firm has implemented an all - inclusive ERP system, incorporating sophisticated information technology solutions to optimize resource planning and elevate management efficiency. Beijun mainly focuses on the production of mining transport vehicles, crawler hauling machinery, and aerial work platform trucks.

Supported by a highly proficient technical team, stringent quality control procedures, contemporary testing apparatus, and effective production strategies, the company consistently provides high - quality products. Beijun employs over 200 staff members, among whom are 30 engineers, 40 sales personnel, and 15 mechanical engineering experts.

Committed to innovation and independent R & D, Beijun steadfastly adheres to its core tenets of "Quality First, Customer - Oriented." Its product portfolio has received widespread praise in the markets of Africa, South America, and Southeast Asia, further strengthening Beijun's standing as a trustworthy and innovative pacesetter in the industry.
