Convenient Wheel Mucking Loader Sale

Smooth Conveyance: Enables continuous material transport, shortening transfer time and accelerating project progress.

Air-friendly Operation: Minimizes tunnel air pollution, creating a healthier construction environment.

Reliable Performance: High-quality manufacturing ensures stable long-term operation and low failure rates.

Optimal Dimensions: Size suits construction sites, simplifying installation and usage.

Contact Now

Product Details

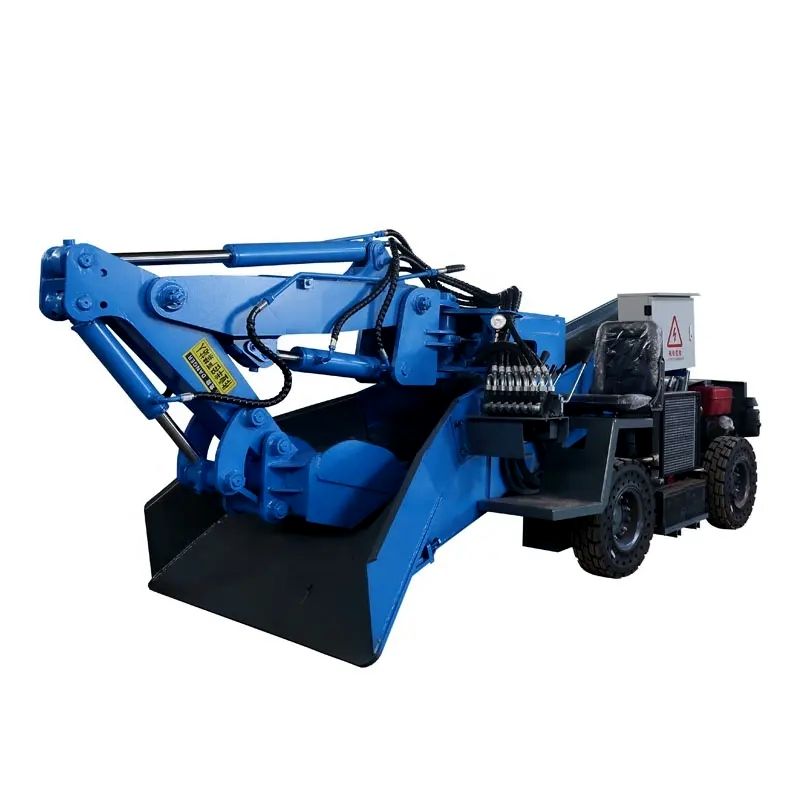

The BJ - 60 - C wheeled mucking rock loader functions as a high - efficiency device that can operate continuously for ore extraction. Mainly, it is employed for the digging of mine rock roadways and semi - coal rock roadways. Additionally, it can be applied to loading operations in diversion tunnels, during railway tunnel construction, and in the building of national defense caverns.

This loader can be combined with the hydraulic mine drilling trucks produced by our company. Through this combination, it makes the mine excavation process mechanized and significantly increases the excavation speed. It is highly appropriate for small - cross - section regions and areas with slopes.

DETAIL PRESENTATION

Wheel Mucking Loader

PRODUCT SELLING POINTS

01 Chassis and Tyre The multi-layer spring plates reinforced chassis is and robust tyres bring stability to the entire machine
	02 Simple Operation Straight-forward arrangement of levers to ensure a smooth operation in any working scenario.
03 Hydraulic Ram As a key component of operation effect, we use high quality hydraulic cylinders for the boom, dipper arm and other units.
	04 Core Engine Stable Diesel Engine or Electric Motor from Reliable Factory with high performance, powerful and speedy.
05 Conveying System Taking advantage of specially designed wear-resistant and durable conveying belt, withstanding all type of rock and gravels.
	06 Excavator Bucket By adoption of the similar excavation bucket and teeth, making the digging much easier and regaining efficiency.

Wheel Mucking Loader

PRODUCT SPECIFICATION

Project Name	Unit	BJ-60-C
Loading Capacity	m³/h	≤60
Total Machine Mass	kg	3100
Excavation Width	mm	3000
Excavation Height	mm	2150
Excavation Depth	mm	≤500
Digging Reach	mm	≥1400
Gradability	°	≤5
Dumping Height	mm	1300 (Can be Raised)
Dumping Distance	mm	1500 (Can be Extended)
Minimum Turning Radius	°	≤5
Total Motor Power	kW	11
Traveling Speed	km/h	1.45
Maximum Dimension of Pass - through Material	mm	600×450
Wheelbase	mm	1480
Track Width	mm	1180
Minimum Cross - section of Applicable Roadway	m	2.2×2.2
Overall Dimensions (Length×Width×Height)	mm	5500×1550×1650

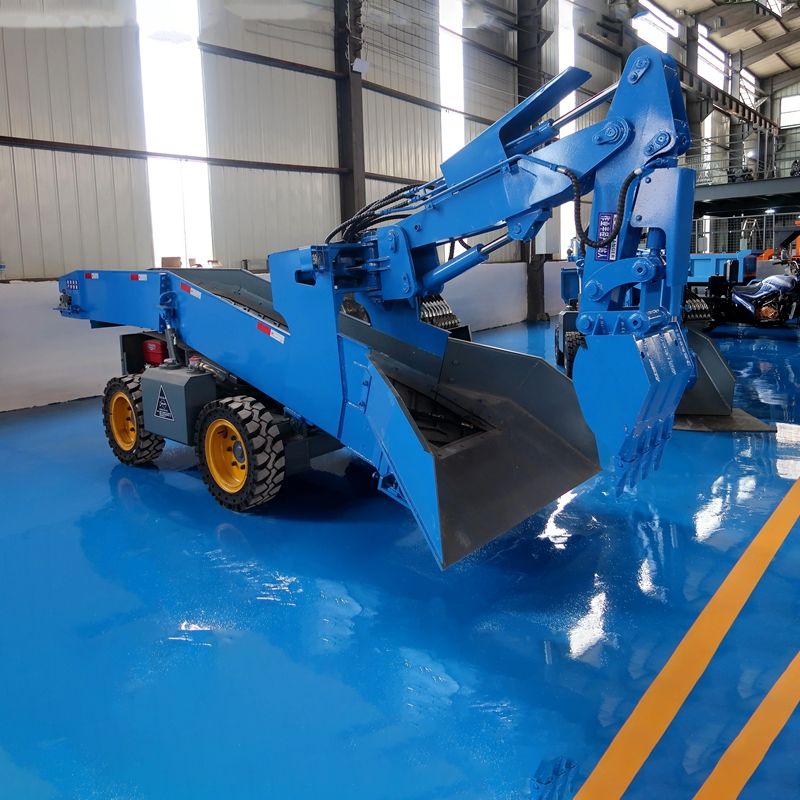

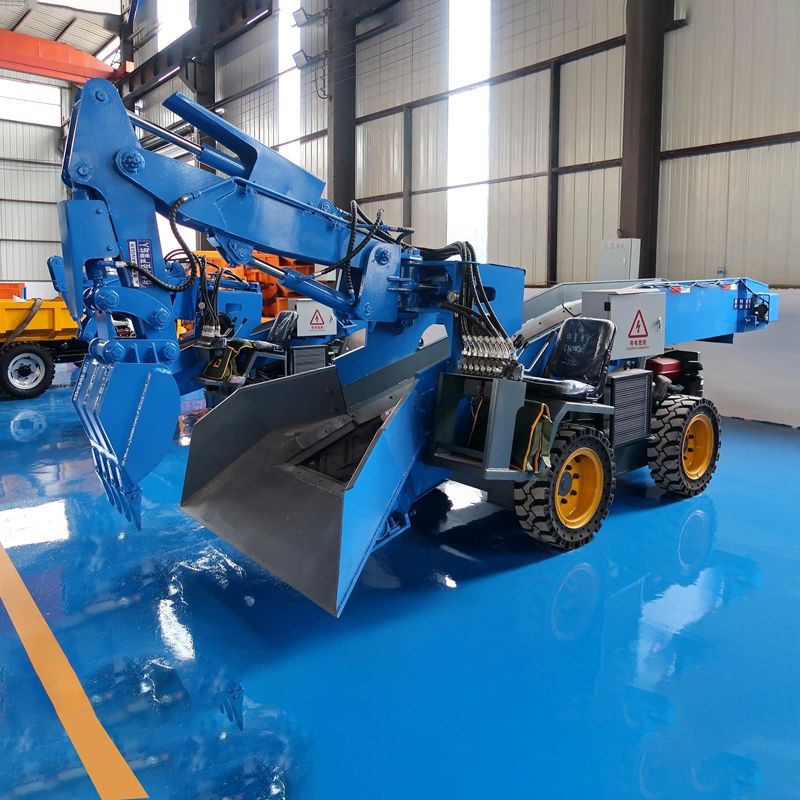

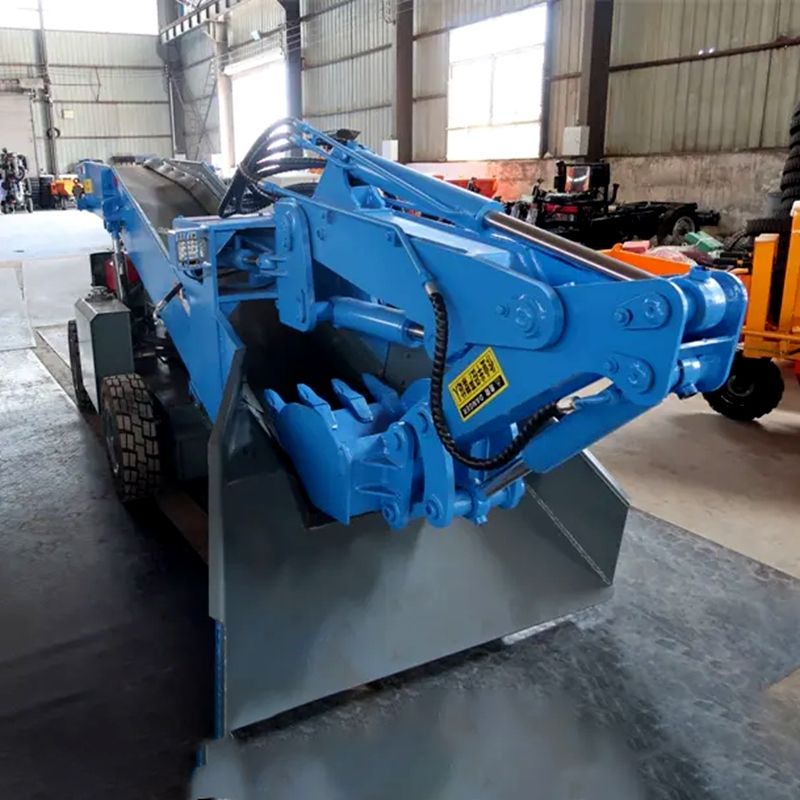

PRODUCT DISPLAY

Wheel Mucking Loader

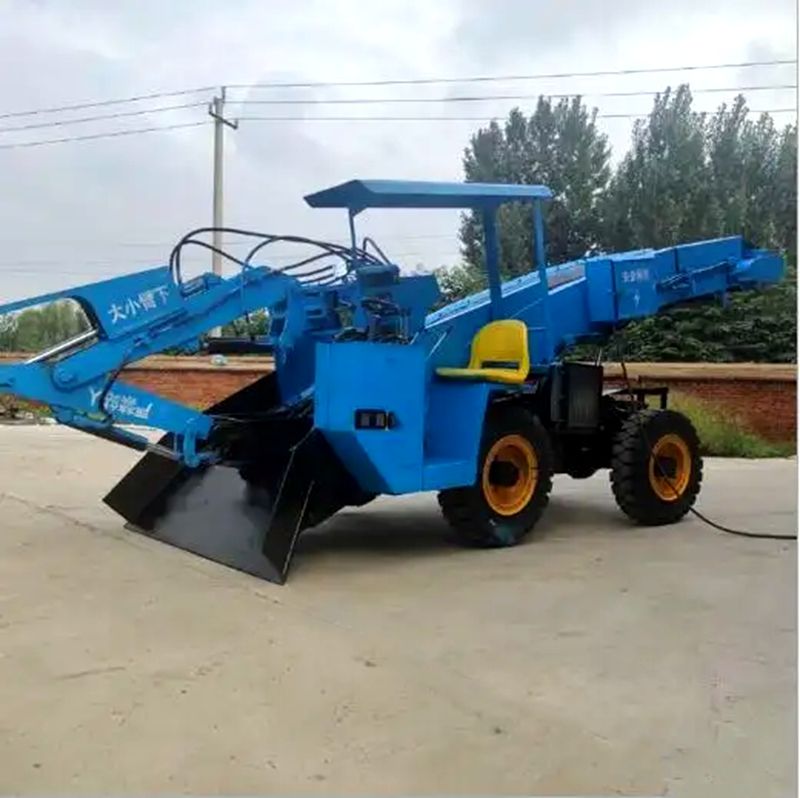

PRODUCT APPLICATIONS

Wheel Mucking Loader

ABOUT US

Shandong Beijun Machinery Industry Co., Ltd. stands out as a leading enterprise dedicated to the research, development, and production of mining and construction machinery. Located in Jining, Shandong, the company occupies an area of 100 acres and has a manufacturing area of 20,000 square meters. Leveraging state - of - the - art production techniques, Beijun is capable of achieving an annual output of 4,000 mining trucks, 500 fully hydraulic crawler vehicles, and 3,000 aerial work platform trucks.

Beijun has acquired the ISO9001 quality management system certification and the EU CE certification. It strictly complies with mining safety production regulations. The firm adopts a comprehensive ERP system, incorporating advanced information technology means to improve resource planning and management effectiveness. Beijun's principal emphasis is on manufacturing mining transport vehicles, crawler haulage vehicles, and aerial work platform trucks.

Supported by a highly skilled technical team, strict quality control processes, modern testing equipment, and efficient production approaches, the company constantly supplies high - quality products. Beijun has more than 200 employees, among whom there are 30 engineers, 40 sales representatives, and 15 mechanical engineering professors.

Committed to innovation and independent R & D, Beijun adheres to its core principles of "Quality - Oriented, Customer - Centric." Its product line has received widespread praise in the markets of Africa, South America, and Southeast Asia, enhancing Beijun's position as a trustworthy and innovative industry forerunner.
