Underground Explosive Transporter For Sale
Superior Comfort on the Road: Robust engine performance paired with premium dynamics guarantees a smooth and secure driving experience.
Safety as Priority: Equipped with explosion-proof containers featuring fire-resistant lining, impact-resistant bumpers, and safety-compliant underbody plates.
Advanced Security Protocols: Integrates anti-theft systems, double-locking mechanisms, and approved safety fuel tanks with reinforced protective components.
User-Oriented Maintenance: Includes settling chambers, drainage valves, and a 24V motor-operated, hassle-free refueling system.

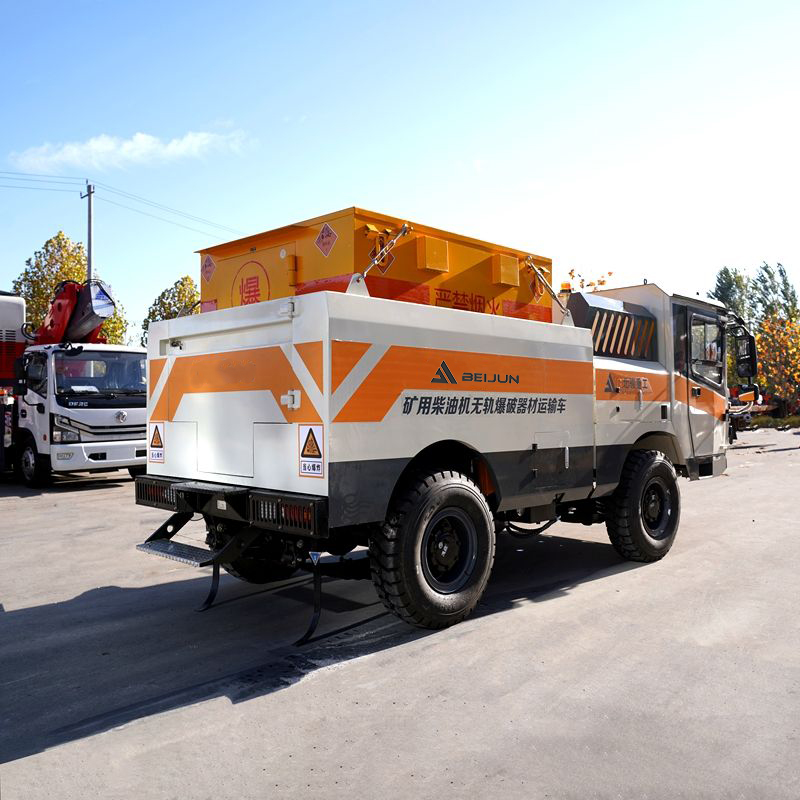

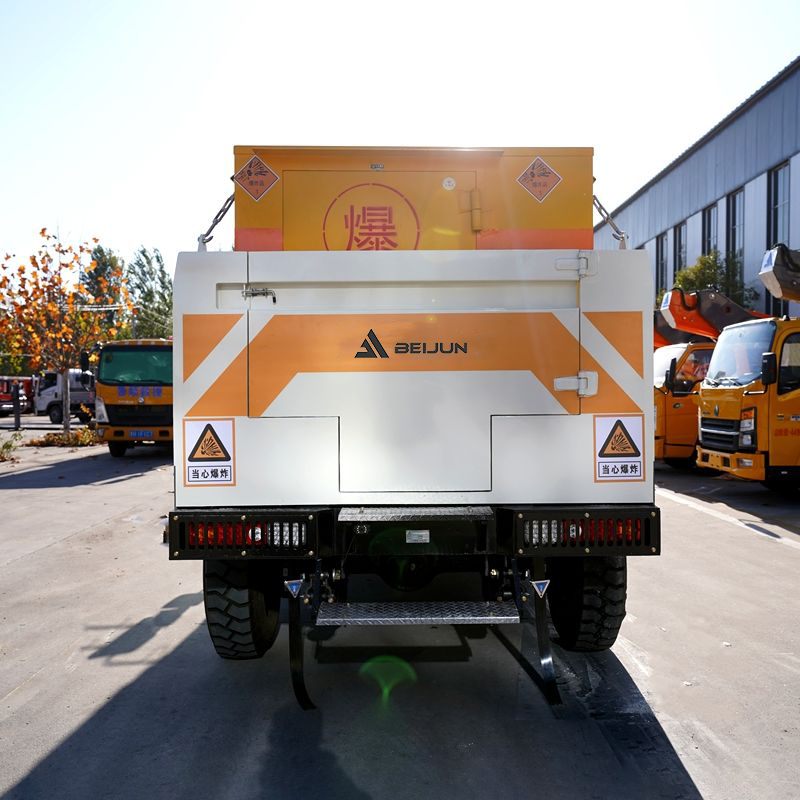

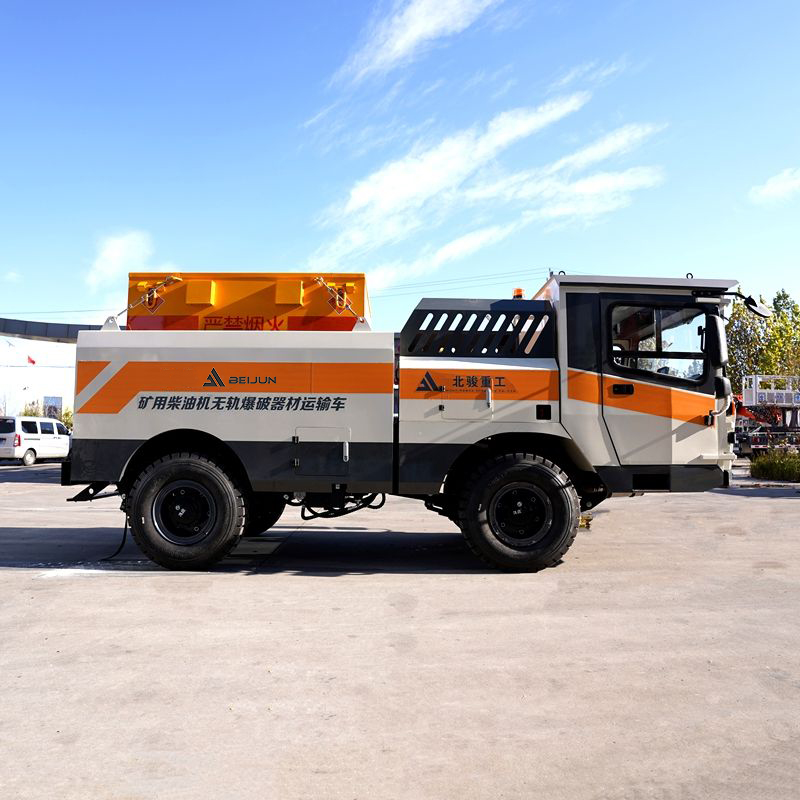

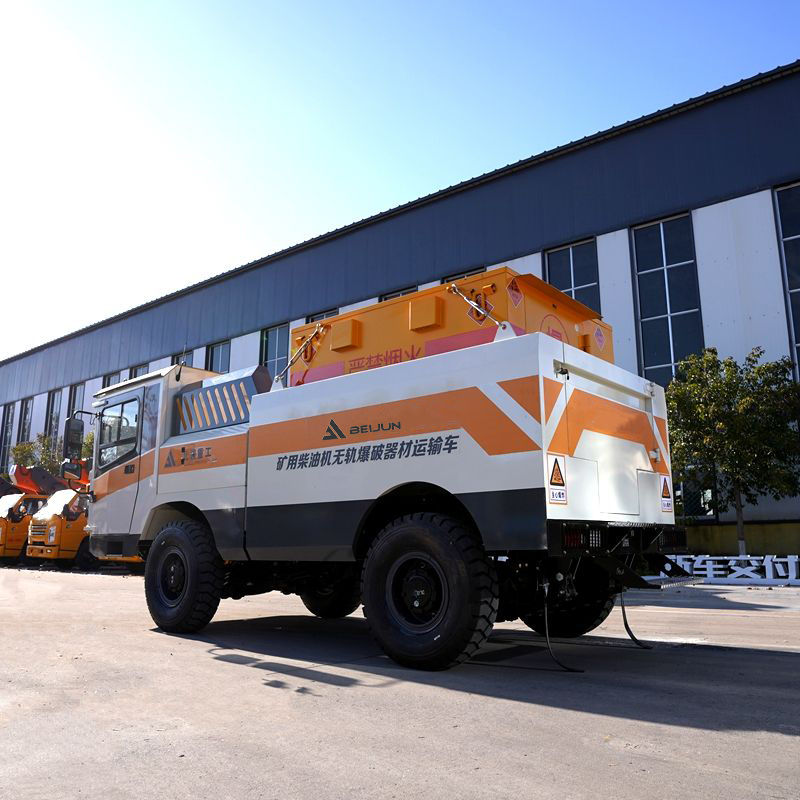

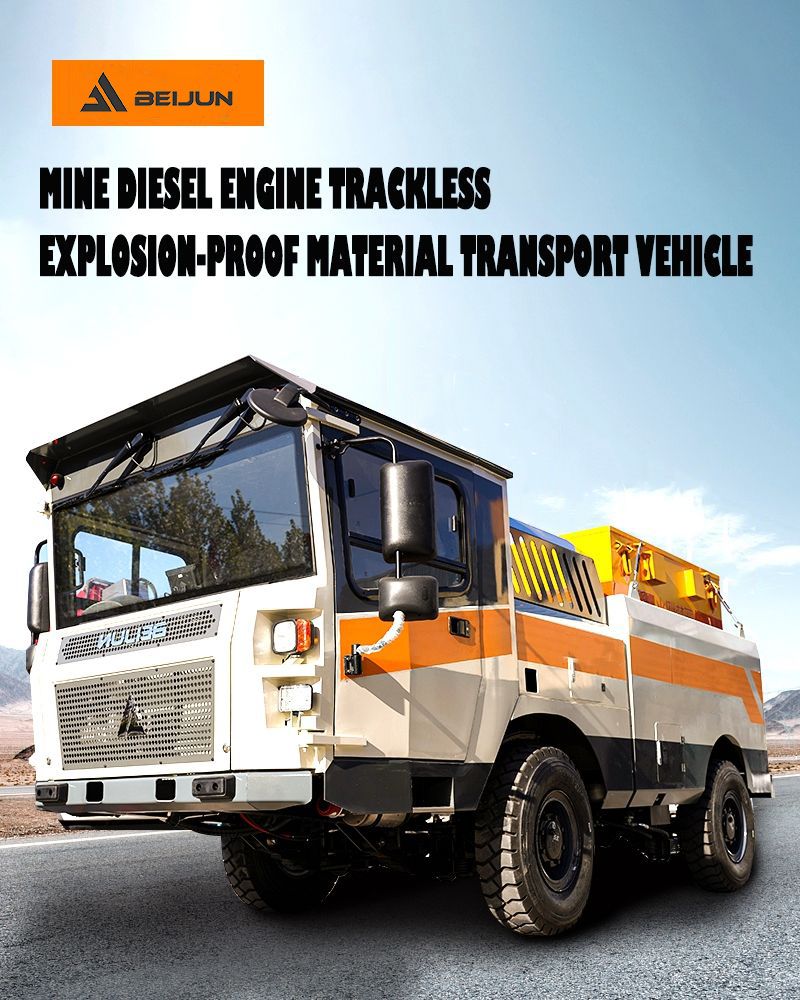

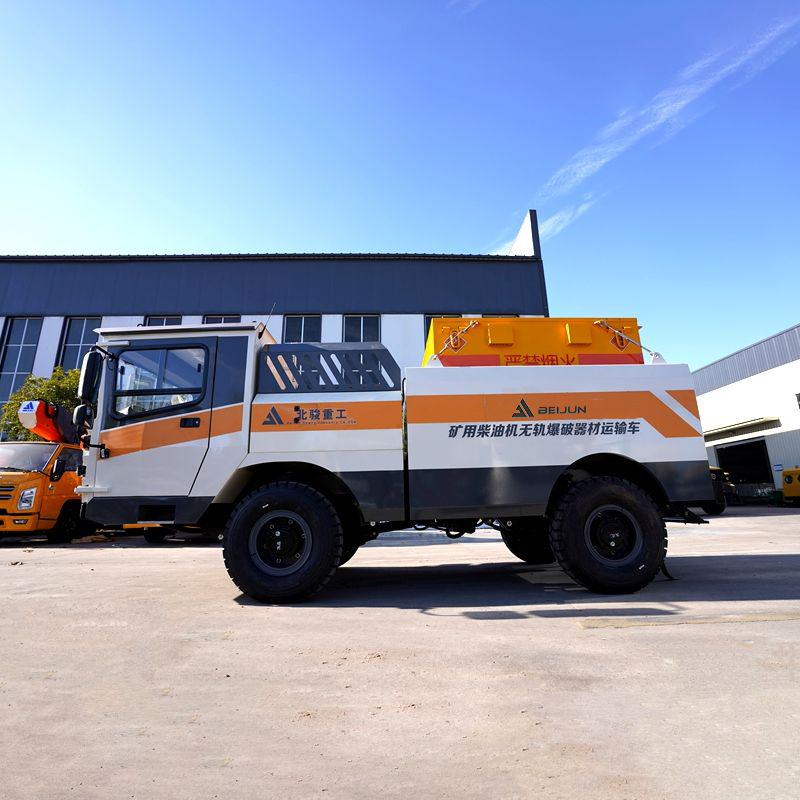

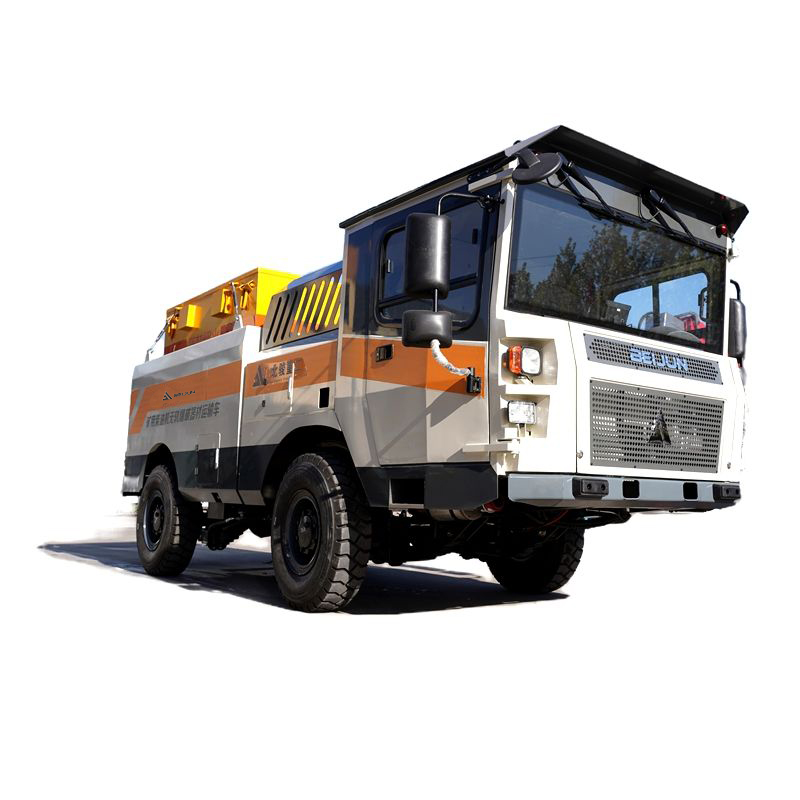

The FL-3 Mine Diesel-powered Non-rail Explosive Cargo Carrier is specially engineered to meet the rigorous demands of underground mining and construction activities. Constructed with a robust framework and high-performance engine system, it ensures efficient and dependable material transport, covering iron ore, phosphate ore, machinery parts, and explosive materials. Its streamlined design enables smooth navigation through narrow tunnel networks, while the four-wheel-drive system offers outstanding traction and slope-handling capabilities, even on tough terrains.
This vehicle features an explosion-proof cargo area with fire-resistant interior coatings and advanced safety setups like smoke-detecting sensors, ensuring top operational safety. Bolstered by an anti-theft alarm system, dual-locking access doors, and a user-friendly refueling setup, this transporter stands out for its structural sturdiness, safety compliance, and ease of maintenance. The FL-3 embodies an ideal solution for boosting productivity in underground work environments.

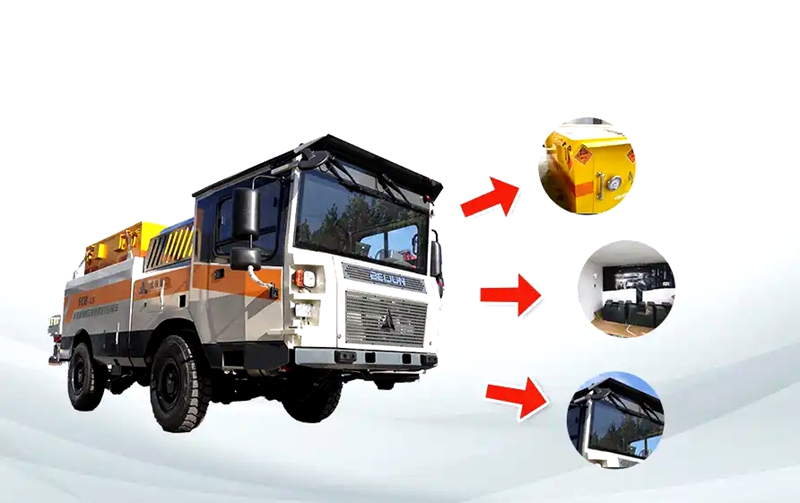

DETAIL PRESENTATION
PRODUCT SELLING POINTS

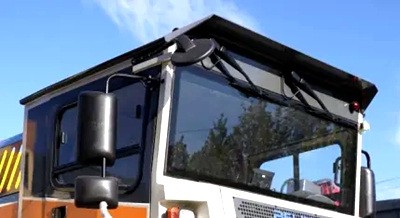

01 Enclosed cab, HVAC | |

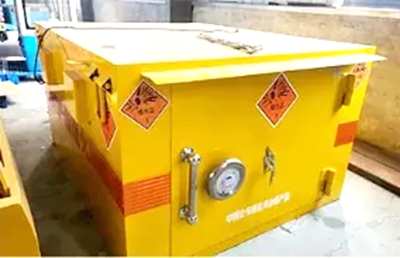

02 The explosion-proof casing as a whole completely complies with safety specifications, is outfitted with a smoke alarm device, and equipped with anti-theft equipment. | |

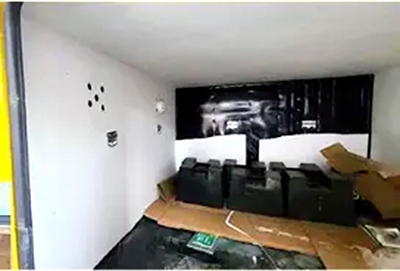

03 The inside adopts fire-retardant panel, and the front area is fitted with anti-collision buffering rubber plate. |
PRODUCT SPECIFICATION
FL - 3 | |
Item | Details |
Dimensions | 5085×1850×2200mm |
Engine power | 65kW |
Climbing ability | 14° |
Instrument type | LCD instrument panel |
Curb weight | 5030kg |
Diesel capacity | 60L |
Maximum gravity | 20kN |
Air filtration | Dry - type three - stage filtration |
Loading capacity | 3000kg |
Driver's side ceiling light | Equipped with switch (24V) |
Wheelbase | 2500mm |
Tail gas purification | DOC + Silencer |
People number | 2 |
Transmission | Fast 8JS55E - C |
Front wheelbase | 1500mm |
Front light function | Switching between high and low beams |
Maximum gradient | 20% |
All lights | Turn signals, front headlights, side - marker lights, tail lights, brake lights |
Minimum steering radius (outer side) | 7670mm |
Tire | Engineer 9.006 - 1 |
Forward maximum speed | 18.0 (on road) km/h |
Shock absorption system | Hydraulic shock absorber, double - layer steel plate spring |
Minimum ground clearance | 260mm |
Bucket size | 2380×1000×645mm |
Reverse maximum speed | 2.5 (on road surface) km/h |
Engine brand | Chaichai |
Cabin | Enclosed cab |
Engine model | 4J88 |
Air - conditioning | Heating and cooling |

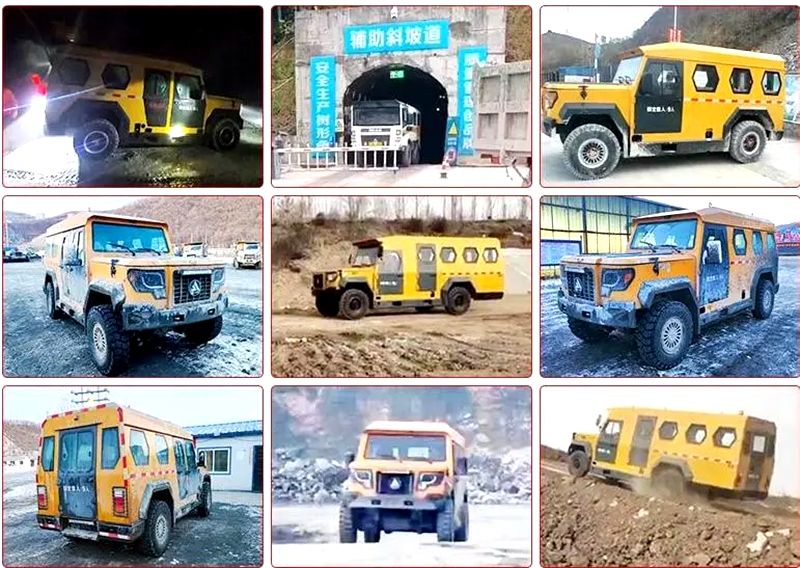

PRODUCT APPLICATIONS
ABOUT US
Shandong Beijun Machinery Industry Co., Ltd. ranks among the top companies dedicated to the research, innovation, and production of mining and construction equipment. Located in Jining, Shandong Province, the firm spans a 40.47-hectare premises with a 20,000 m² modern manufacturing plant. Utilizing cutting-edge manufacturing technologies, Beijun achieves a yearly output of 4,000 mining trucks, 500 full-hydraulic crawler transporters, and 3,000 aerial work platforms.
The company has obtained ISO9001 quality assurance certification, CE compliance, and mining safety operation licenses. Adopting a comprehensive ERP system for enterprise resource planning, Beijun utilizes advanced information technology to enhance resource distribution and simplify administrative processes.
Backed by a skilled technical staff, strict quality control systems, modern testing facilities, and precision production processes, Beijun produces high-quality products that fulfill client needs and promote sustainable development. The company has a workforce of over 200 specialists, comprising 30 engineers, 40 sales personnel, and 15 experts in mechanical engineering design.
Dedicated to innovation and self-reliant research and development, Beijun adheres to the principle of "Quality First, Customer Priority." Its products are highly regarded in African, South American, and Southeast Asian markets, reinforcing its standing as a trusted and innovative industry leader.

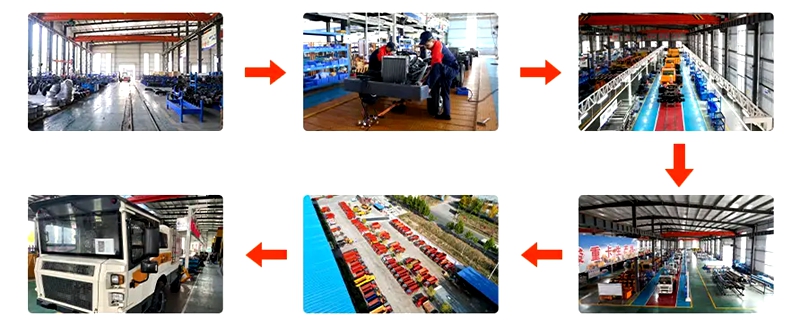

PRODUCT MANUFACTURING PROCESS
PACKAGING AND TRANSPORT
MARKETING NETWORK

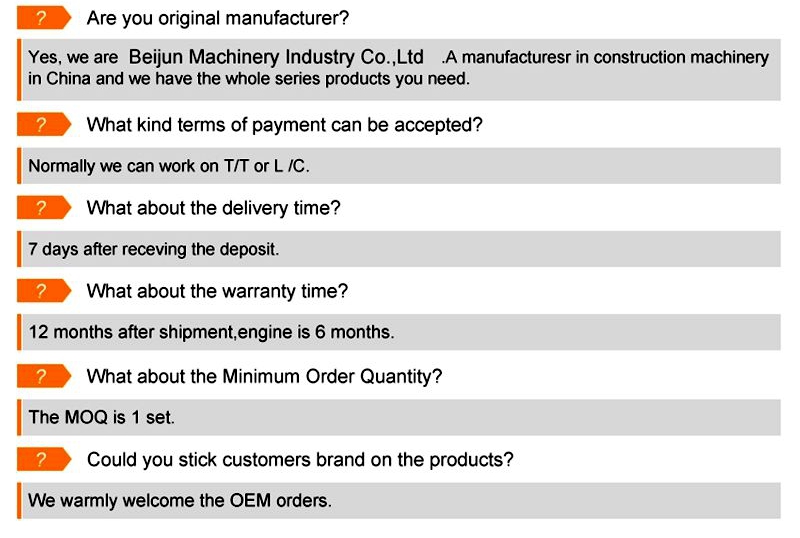

FAQ
