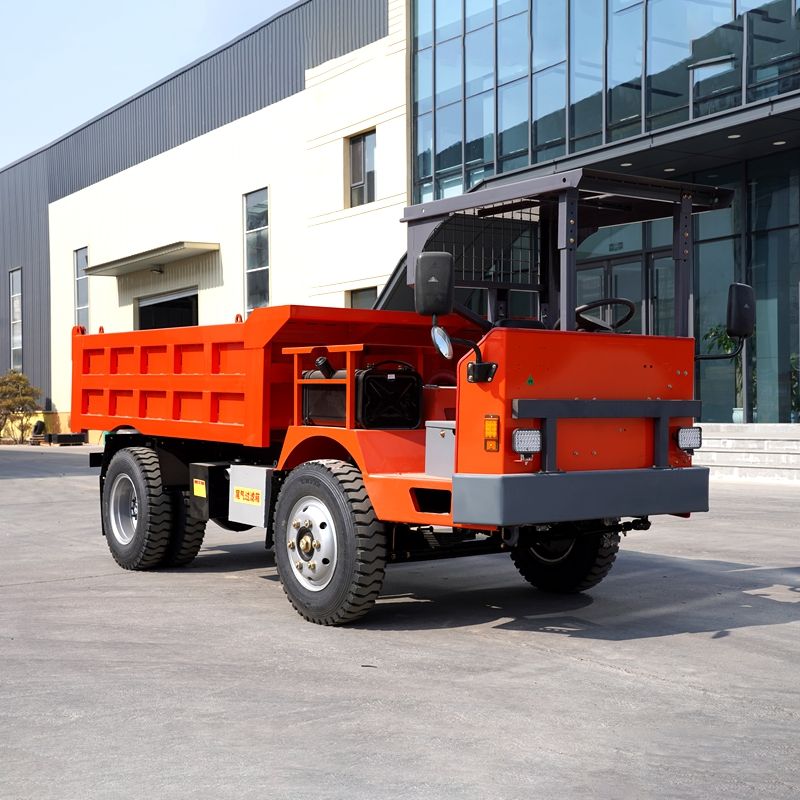

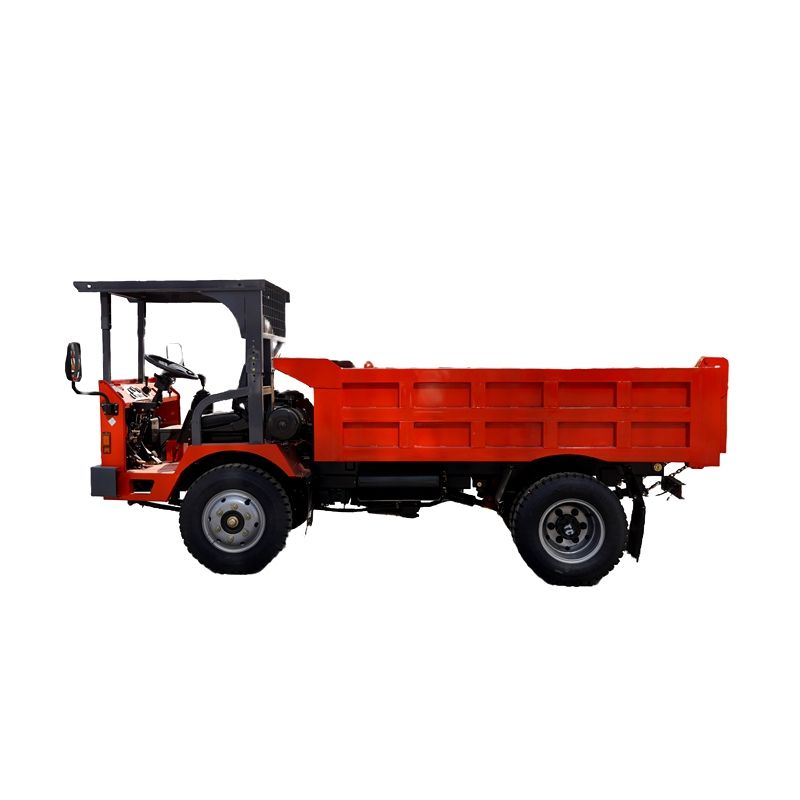

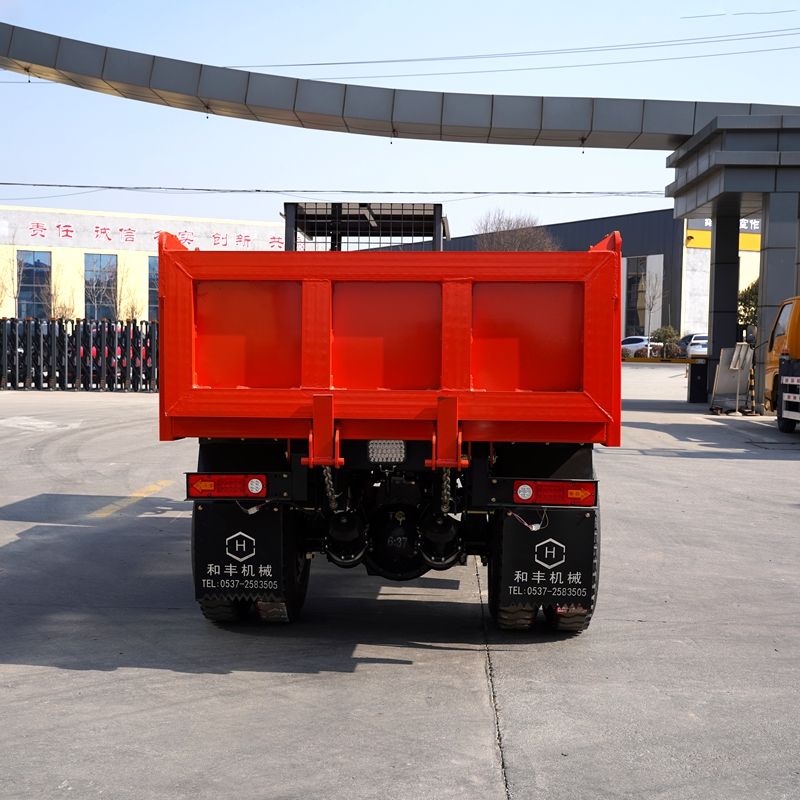

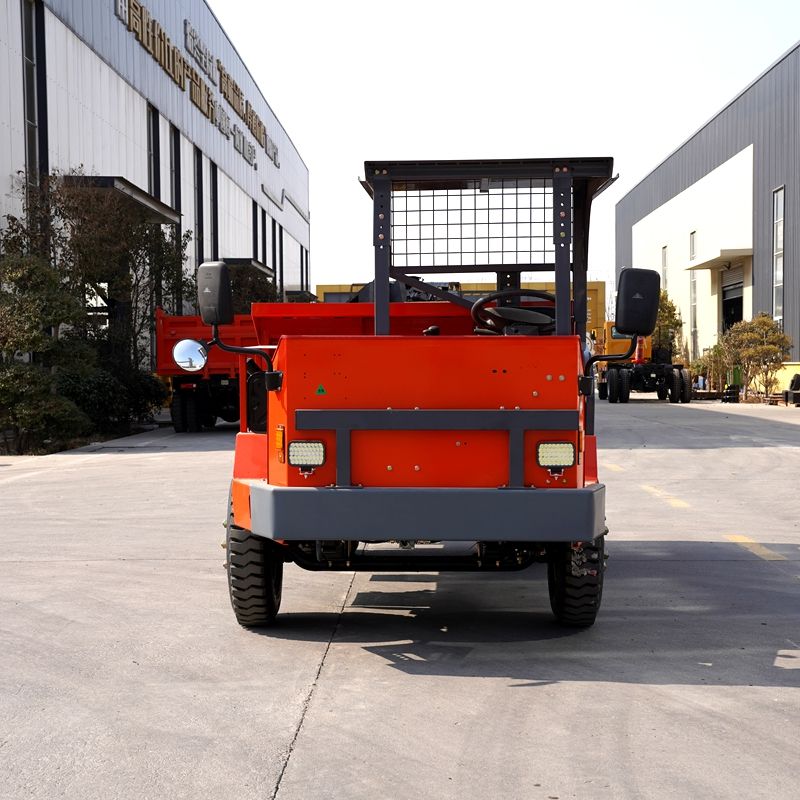

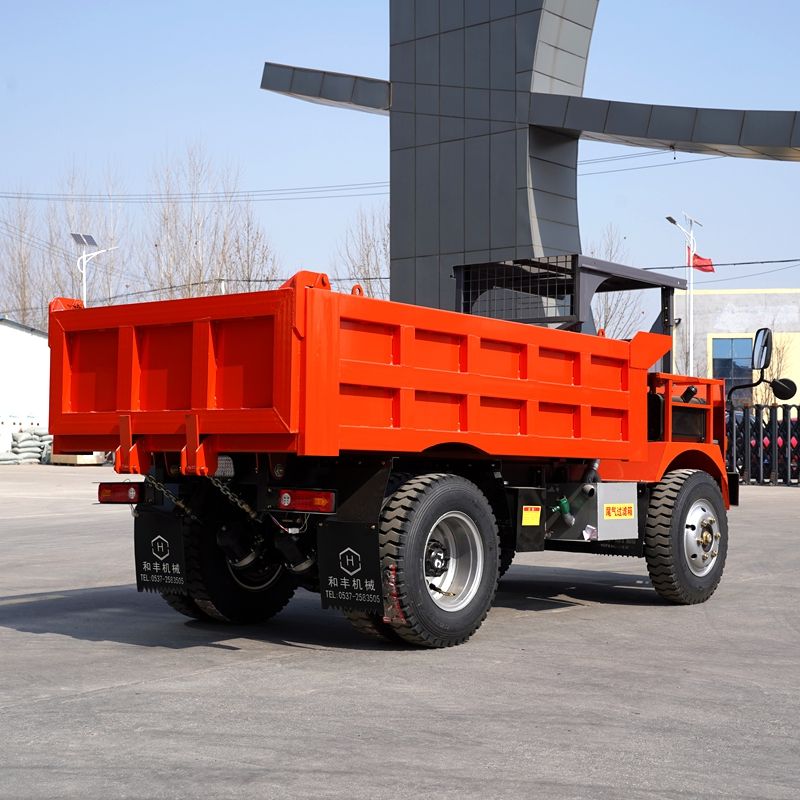

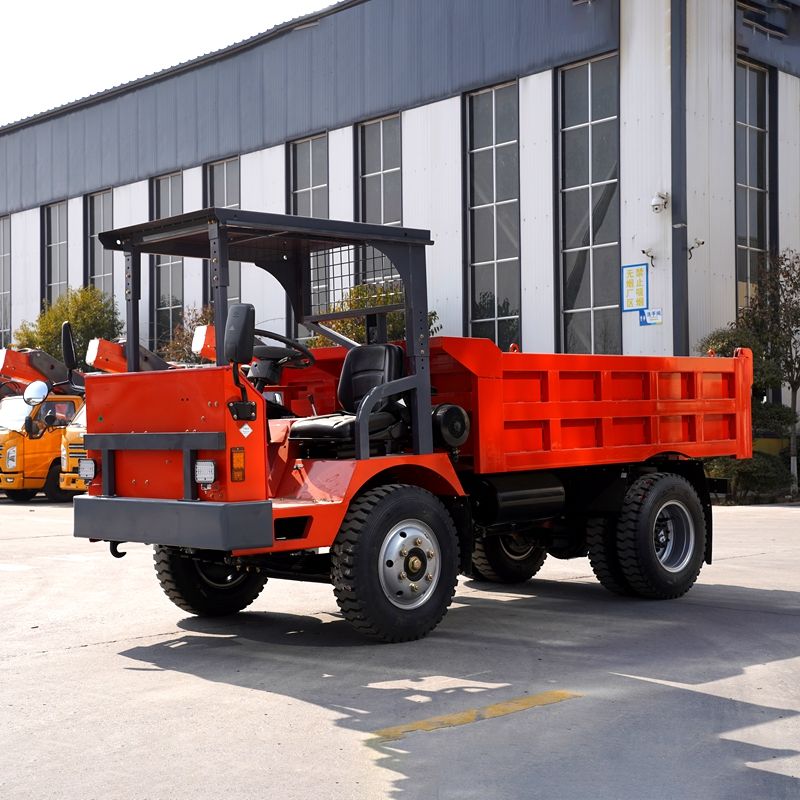

5 T RWD Small Underground Mining Truck

Efficient Material Handling：Hydraulic rapid-discharge system + compact wheelbase enable fast unloading and nimble maneuvering, minimizing haul times in mining workflows.

Durability & Reliability：Sturdy chassis/heavy-duty axles, dust-resistant drivetrain, and abrasion-proof tires endure vibrations and debris, ensuring low-maintenance performance in harsh environments.

Cost-Effective Operations：Fuel-efficient design + modular service access reduce lifecycle expenses for small-to-medium mining operations.

Versatile Terrain Adaptability：Aggressive-tread tires ensure reliable performance on rough, muddy, or uneven terrain, suitable for both open-pit and underground transport.

Contact Now

Product Details

With the seamless integration of a renowned-brand engine, a sophisticated drivetrain, and a robust rear axle, this Rear-wheel Drive mining truck delivers outstanding performance. Characterized by low-speed, high-torque output and strong traction, it effortlessly conquers steep mine slopes and navigates complex tunnel networks, showcasing its high-efficiency transport capabilities in challenging underground environments.

The truck’s dedicated chassis frame is constructed from the same high-strength materials as ten-wheel heavy-duty trucks, making it sturdier and more durable than conventional frames. Under heavy payloads and across rough mine roads, it maintains stability and remains resistant to deformation or cracking, establishing itself as a reliable workhorse in harsh mining conditions.

Whether operating on the expansive work areas of open-pit mines or the confined passages of iron ore and rare-metal mines, this four-wheel mining truck—featuring high horsepower, a compact footprint, and low noise emissions—delivers outstanding performance. Its user-friendly and agile operation, combined with an energy-efficient design, makes it the ideal choice for optimized mining transportation workflows.

5 Ton Small Underground Mining Truck

DETAIL PRESENTATION

PRODUCT SELLING POINTS

Engine

Yun nei yu chai engine strongpower stability is good

Hydraulic Dump

High strength, low center of gravity, smooth operation;

High transportation efficiency.

FRAME

The frame USES 70manganese material(crane big arm matenial)

custom square tube production use time is long

PRODUCT SPECIFICATION

Model Name	5 TON Wheeled Mining Dump Truck
Brand Logo	KA
Engine Model	Chang Chai 490, 63 horsepower
Transmission	Dongfeng 145 front - mounted high - low speed transmission
Axle Model	Front axle 1069, rear axle 1069
Bucket Size	2.8 * 1.6 * 0.55 (meters)
Bucket Plate Specifications	Bottom: 8mm, Side: 6mm
Tire	700 - 16 Chaoyang mining tires (double rear tires)
Frame Model	140 * 60 * 8 (mm)
Spring Plate	Front: 10 pieces, Rear: 10 + 6 pieces, 70mm * 10mm
Hydraulic Cylinder	Diameter 115mm, Stroke 900mm
Braking Method	Wet braking
Exhaust Gas Treatment	Water treatment
Driving Style	Mining - specific safety lifting canopy
Vehicle Height	1.8 meters
Shifting Method	Shift cable
Overall Dimensions	4.4 * 1.65 * 1.55 (length * width * height, in meters)

PRODUCT APPLICATIONS

5 Ton Small Underground Mining Truck

PRODUCT MANUFACTURING PROCESS

ABOUT US

Shandong Beijun Machinery Industry Co., Ltd. stands out as a leading player in the research, development, and manufacturing of mining and construction machinery. Located in Jining, Shandong, the company occupies a land area of 100 acres, featuring a 20,000-square-meter production facility. Utilizing state-of-the-art manufacturing technologies, Beijun achieves an annual output of 4,000 mining trucks, 500 fully hydraulic crawler vehicles, and 3,000 aerial work platform trucks.

Beijun is accredited with ISO9001 quality management system certification and EU CE certification, while strictly complying with mining safety production regulations. The company employs an integrated ERP system, leveraging advanced information technology solutions to enhance resource planning and operational efficiency. Beijun’s core product lines encompass mining transport vehicles, crawler haulage vehicles, and aerial work platform trucks.

Backed by a talented technical team, strict quality assurance protocols, modern testing equipment, and streamlined production processes, the company consistently delivers high-quality products. Beijun employs over 200 professionals, including 30 engineers, 40 sales specialists, and 15 mechanical engineering professors with deep expertise.

Committed to innovation and independent R&D, Beijun upholds its core values of "Quality First, Customer-Centric." Its product range has gained extensive recognition in African, South American, and Southeast Asian markets, further solidifying Beijun’s reputation as a reliable and innovative industry leader.
