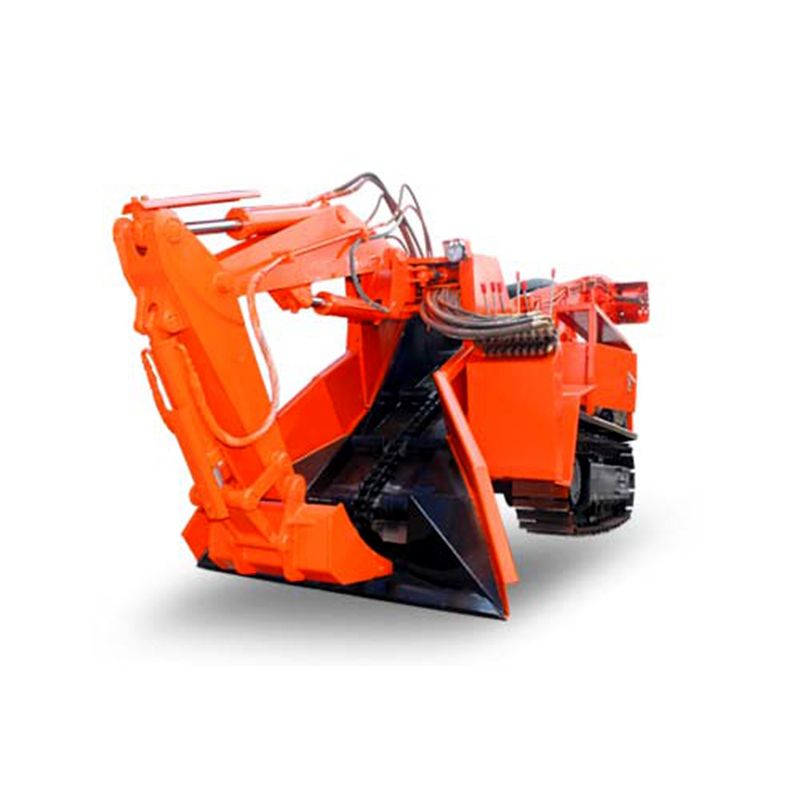

Special Crawler Type Mucking Loader With Breaker

Energy - Efficient Design: The well - engineered power system enhances energy efficiency, effectively lowering operating expenses.

Dependable Operation: Constructed with top - notch quality, it guarantees consistent performance over the long run and minimizes the risk of breakdowns.

Streamlined Productivity: Combines excavation, loading, and transportation functions, ensuring a smooth and uninterrupted workflow.

Efficient Material Handling: Facilitates continuous transportation of materials, reducing transfer durations and speeding up project timelines.

Contact Now

Product Details

The Crawler - Mounted Mucking Loader with Rock Breaker is a highly adaptable and essential piece of equipment in contemporary mining and tunneling activities. This machinery combines several crucial functions, serving not merely as a loader but as a complete system that integrates excavation, transportation, loading, and movement. Additionally, it is fitted with a robust breaker, enabling efficient rock - shattering operations.

Due to its sophisticated design, this loader offers remarkable operational efficiency, facilitating swift advancements in excavation and loading tasks. Its crawler - based structure provides it with outstanding adaptability to diverse spatial constraints. It can operate effectively in confined tunnels or on rough, uneven surfaces. Furthermore, in contrast to numerous conventional machines, it generates less air pollution within tunnel environments, thereby helping to create a safer and more conducive working atmosphere for miners.

Crawler Type Mucking Loader With Breaker

DETAIL PRESENTATION

Crawler Type Mucking Loader With Breaker

PRODUCT SELLING POINTS

Crawler Type Mucking Loader With Breaker

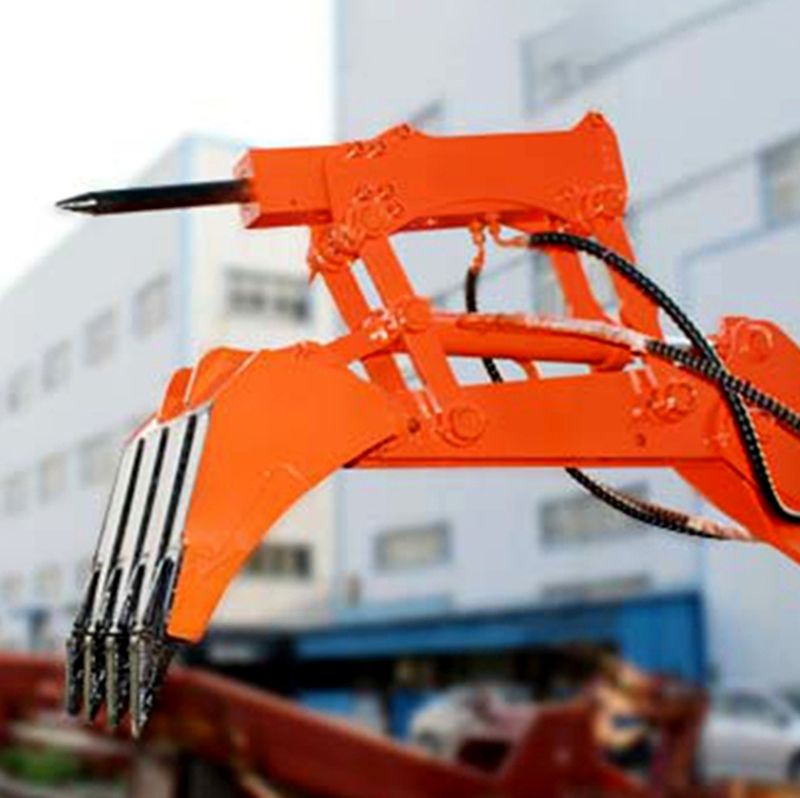

Working arm

The big arm and small arm can be adjust to adopt imported wear resistant materials, so reducing loss, and improving the durability of use.

Conveying belt

It is made of high hardness material. The special design to ensure the successful conveying of the rock

Crawler Type Mucking Loader With Breaker

Removable mode

Through reasonable design can realize the field assembly construction convenient, that crews can assemble just as easily as they can break them down into movable parts

PRODUCT SPECIFICATION

Model	BJ-70-B
Loading Capacity (m³/h)	≤70
Total Machine Mass (kg)	(Approx.) 3800±5%
Wheelbase (A) (mm)	1550
Track Gauge (Front/Rear) (mm)	1250/1220
Minimum Turning Radius (m)	≤5
Excavating Width (B) (mm)	3000
Digging Reach (C) (mm)	1600
Loading Width (Z) (mm)	650
Excavating Height (H) (mm)	2050
Maximum Unloading Height (H) (mm)	1500 (Can be Increased)
Loading Length (D) (mm)	1600 (Can be Extended)
Gradeability (°)	≤5
Maximum Material Pass - through Capacity (mm)	≤640×500
Conveyor Belt Speed (m/s)	0.8±5%
Conveying Capacity (m³/h)	≥60
Main Motor Power (Kw)	11
Travel Speed (Km/h)	1.45
Rated Working Pressure (Mpa)	12
Safety Valve Opening Pressure (Mpa)	12.5
Electrical Insulation Strength (MΩ) - Three - Phase	≥1.5
Electrical Insulation Strength (MΩ) - Phase - to - Phase	≥1.5
Maximum Dimensions in Transport State (mm) - Length	6300±50
Maximum Dimensions in Transport State (mm) - Width	1500±50
Maximum Dimensions in Transport State (mm) - Height	1500±50
Minimum Applicable Cross - Section (m²)	2.2×2.2

PRODUCT APPLICATIONS

Crawler Type Mucking Loader With Breaker
