Multi Functional Crawler Mucking Loader Sell

Ideal Sizing and Proportions: Its dimensions are perfectly tailored for construction environments, facilitating effortless installation and smooth operation.

Intuitive and Effortless Operation: Featuring straightforward controls, it streamlines the operating process, making it accessible and easy to manage for users.

Heavy - Duty Loading Capability: Demonstrates outstanding proficiency in loading tasks, rapidly processing rock materials and significantly boosting construction efficiency.

Consistent and Dependable Functionality: Crafted with superior quality, it guarantees stable performance over extended periods, minimizing the occurrence of breakdowns.

Contact Now

Product Details

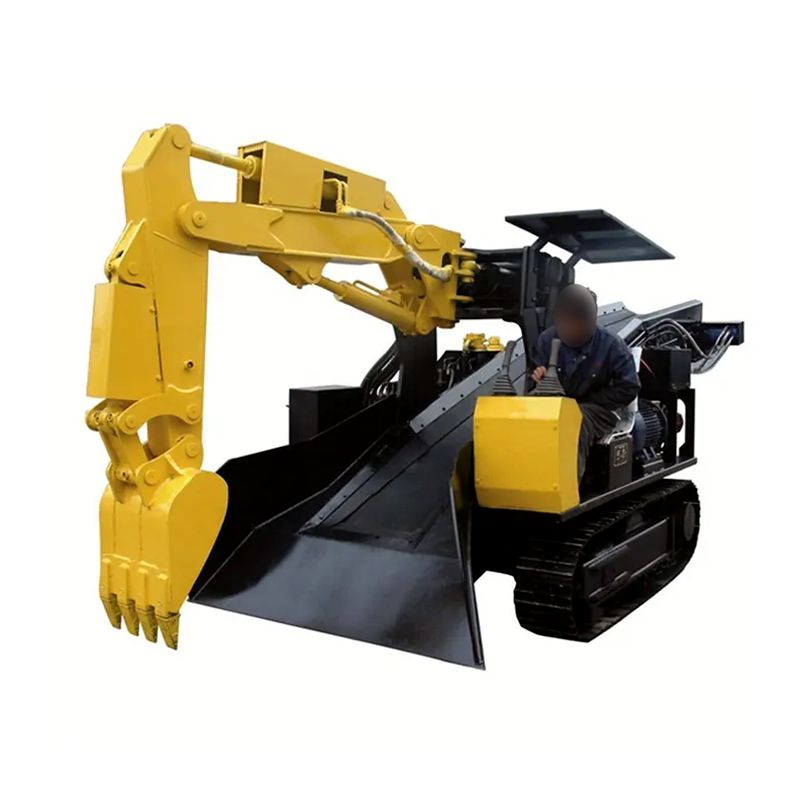

The BJ135 - 80 crawler mucking rock loader is a highly efficient, continuously operating ore - extracting machine. Fundamentally, it is designed for the excavation of rock roadways and semi - coal rock roadways in mines. Additionally, it can be applied to loading operations in diversion tunnels, railway tunnel construction, and national defense cavern building projects. This loader can be used in conjunction with the hydraulic mine drilling trucks produced by our company, promoting the mechanization of mine excavation and significantly increasing the excavation speed. Owing to its crawler - based structure, it demonstrates remarkable adaptability in small - cross - section and sloped areas, offering enhanced stability and traction when compared to wheeled counterparts.

Tunnel Mucking Loader

DETAIL PRESENTATION

Tunnel Mucking Loader

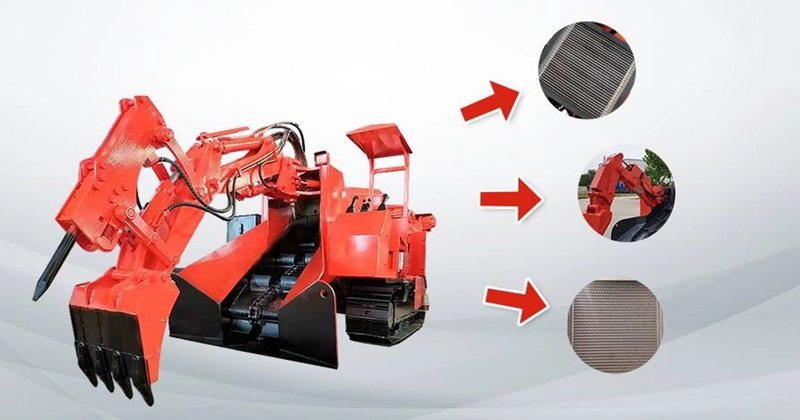

PRODUCT SELLING POINTS

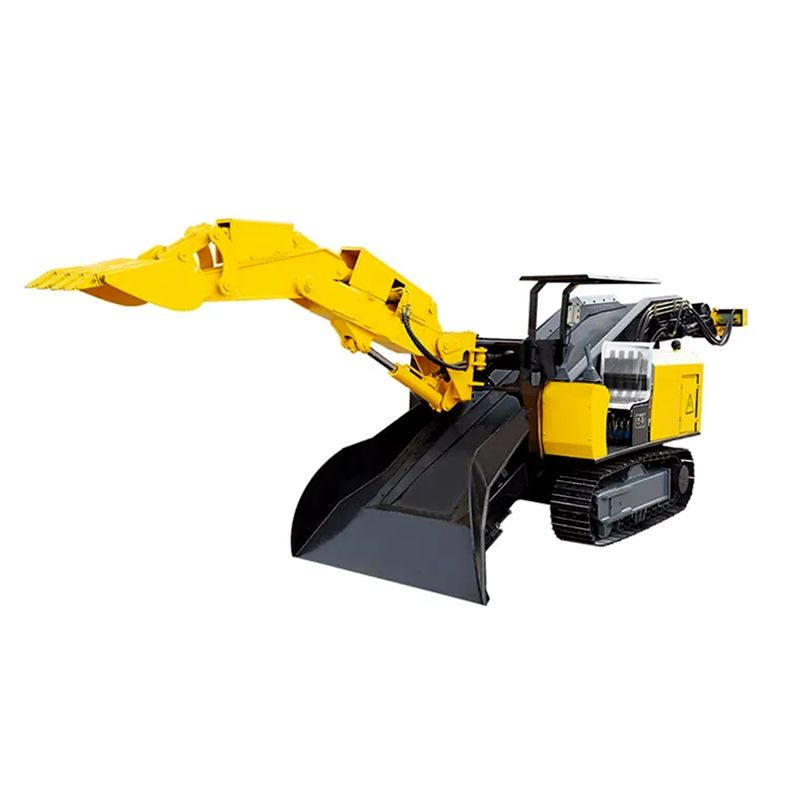

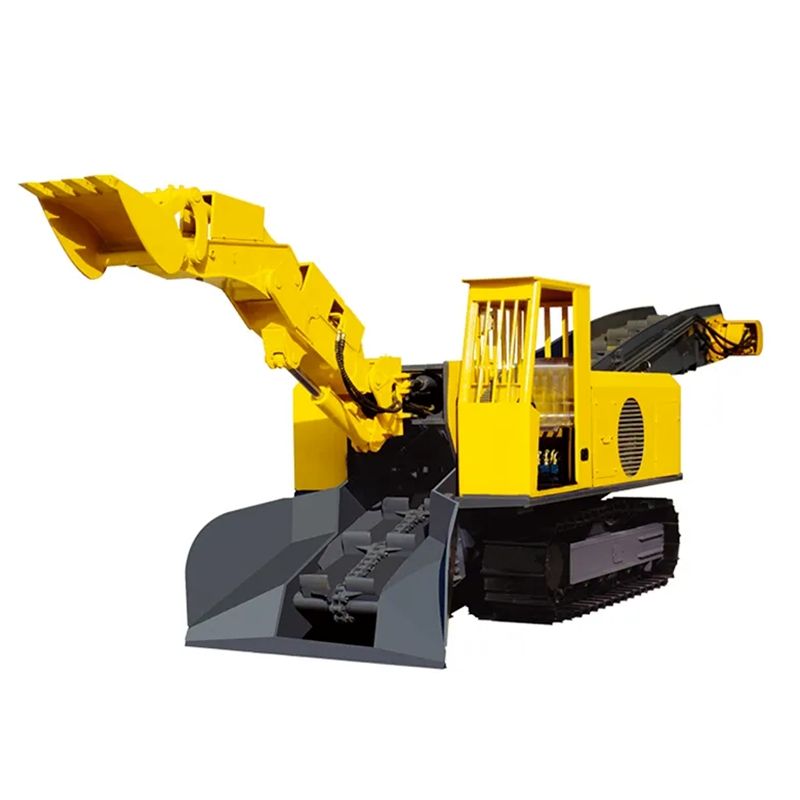

Crawler Mucking Loader

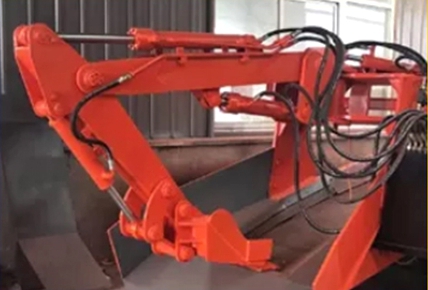

Working arm

The big arm and small arm can be adjust to adopt imported wear resistant materials, so reducing loss, and improving the durability of use.

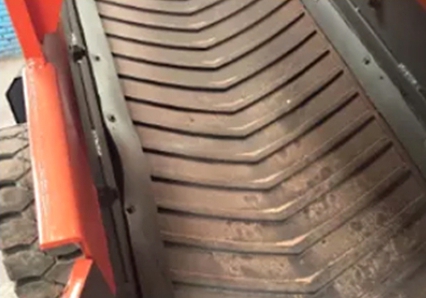

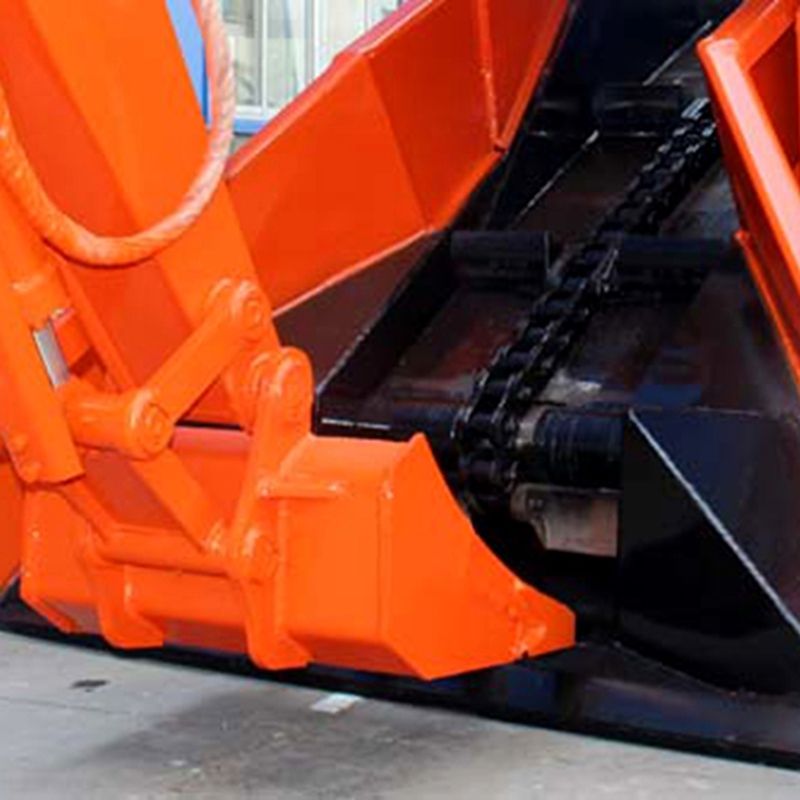

Conveying belt

It is made of high hardness material. The special design to ensure the successful conveying of the rock

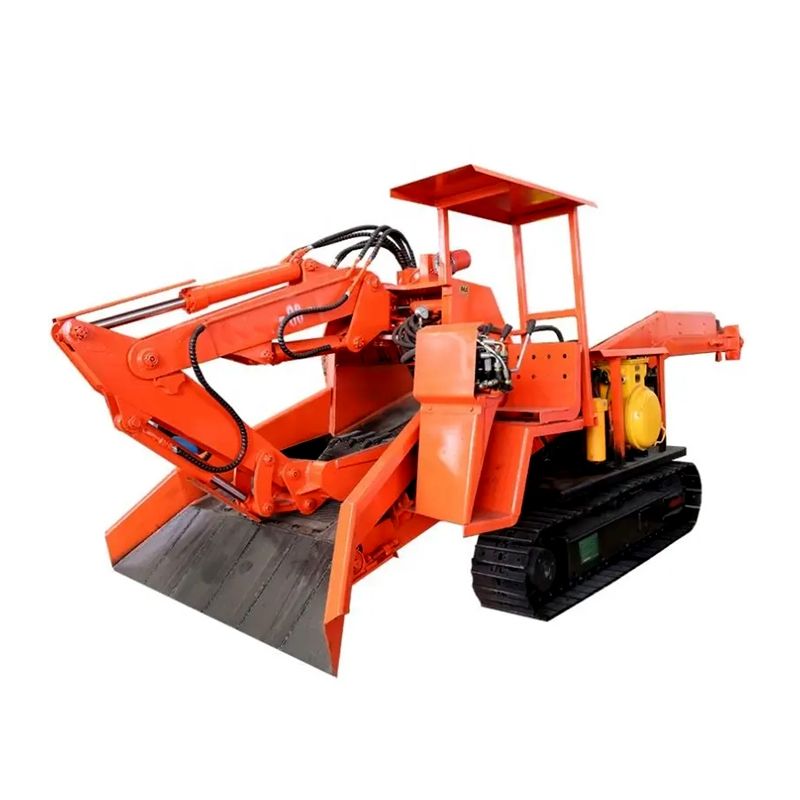

Crawler Mucking Loader

Removable mode

Through reasonable design can realize the field assembly construction convenient, that crews can assemble just as easily as they can break them down into movable parts

PRODUCT SPECIFICATION

Index	Unit	BJ135-80
Loading Capacity	m³/h	≤80
Overall Machine Mass	kg	6800±200
Minimum Turning Radius	R	≤3
Minimum Ground Clearance	mm	300
Digging Width	mm	4100
Digging Depth	mm	550
Digging Height	mm	2900
Digging Distance	mm	2010
Unloading Height (Customizable)	mm	1700
Unloading Distance (Customizable)	mm	1900
Applicable Climbing Slope	°	±25
Scraper Chain Speed	m/s	0.54
Total Motor Power	kW	30 (Double 15)
Main Motor Power	kW	30 (Double 15)
Fan Power	kW	1.5
Traveling Speed	km/h	2.1±0.05
Rated Working Pressure	Mpa	18
Electrical Insulation (Three-Phase)	MQ	>1.5
Electrical Insulation (Between Phases)	MQ	>1.5
Overall Dimension (Length)	mm	6750±50
Overall Dimension (Width)	mm	1820±50
Overall Dimension (Height)	mm	2060±50
Applicable Section	m	2.6*2.6

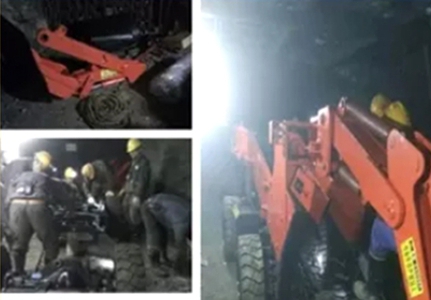

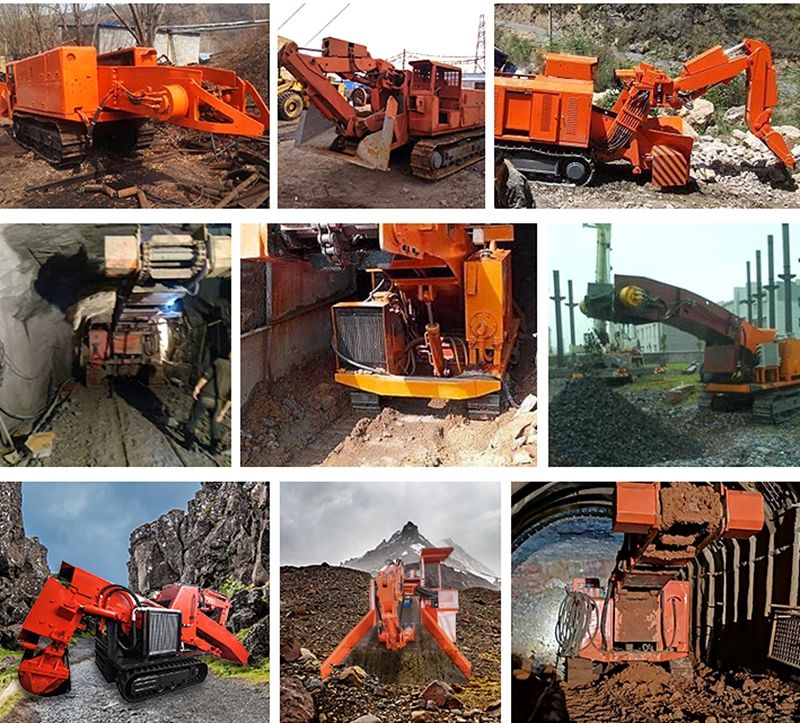

PRODUCT APPLICATIONS

Tunnel Mucking Loader
