High Performance Crawler Mucking Loader Purchase

Reliable Hydraulic System: Utilizes load - sensing hydraulic technology to ensure stable, risk - free operation with consistent performance.

Exceptional Terrain Adaptability: Demonstrates robust climbing capabilities, enabling it to effortlessly navigate tunnel inclines and complex terrains.

Streamlined Productivity: Combines excavation, loading, and transportation functions, guaranteeing a smooth and uninterrupted workflow.

Environmentally Conscious Operation: Reduces air contamination within tunnels, fostering a safer and more conducive construction atmosphere.

Contact Now

Product Details

The mucking loader, alternatively referred to as the excavating loader, integrates multiple essential functions including digging, hauling, loading, and movement. Its remarkable working efficiency, outstanding ability to adapt to diverse spatial constraints, and negligible air pollution generated inside tunnels have made it a crucial and irreplaceable piece of equipment in tunnel construction.

Fitted with an electro - hydraulic control system, it performs five primary functions: hydraulic - based locomotion, gathering of mining materials, transporting, loading, and cleaning up floor debris. Our mucking loader comes with a dual - drive system, offering both electric - powered and diesel - powered configurations. When used in a mining environment, the electric - powered mode is advisable because it is more eco - friendly and secure. In outdoor operations, the large - volume hydraulic oil tank allows for uninterrupted operation over long durations.

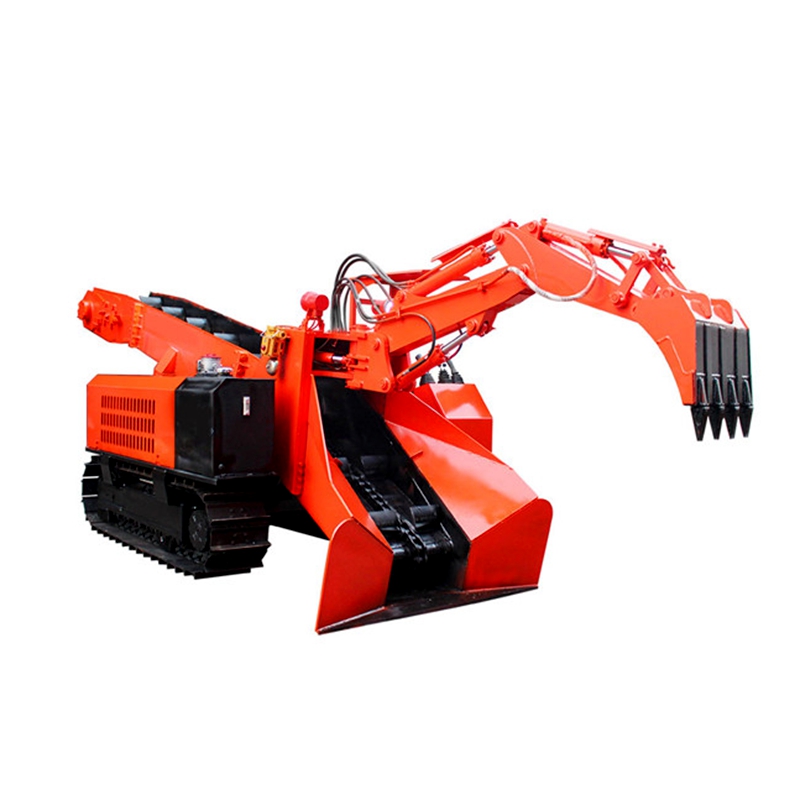

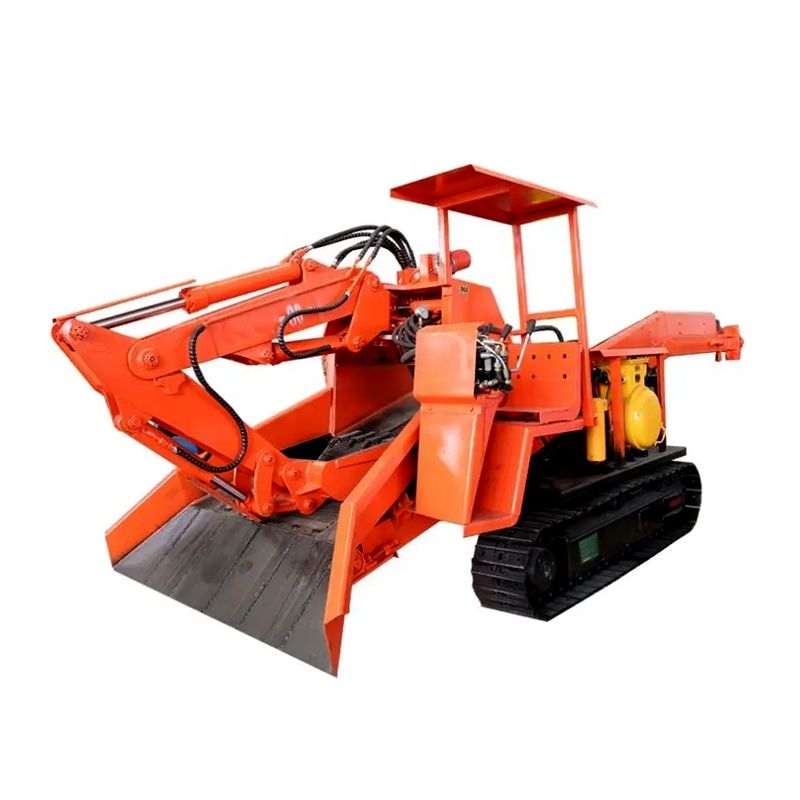

Tunnel Mucking Loader

DETAIL PRESENTATION

Tunnel Mucking Loader

PRODUCT SELLING POINTS

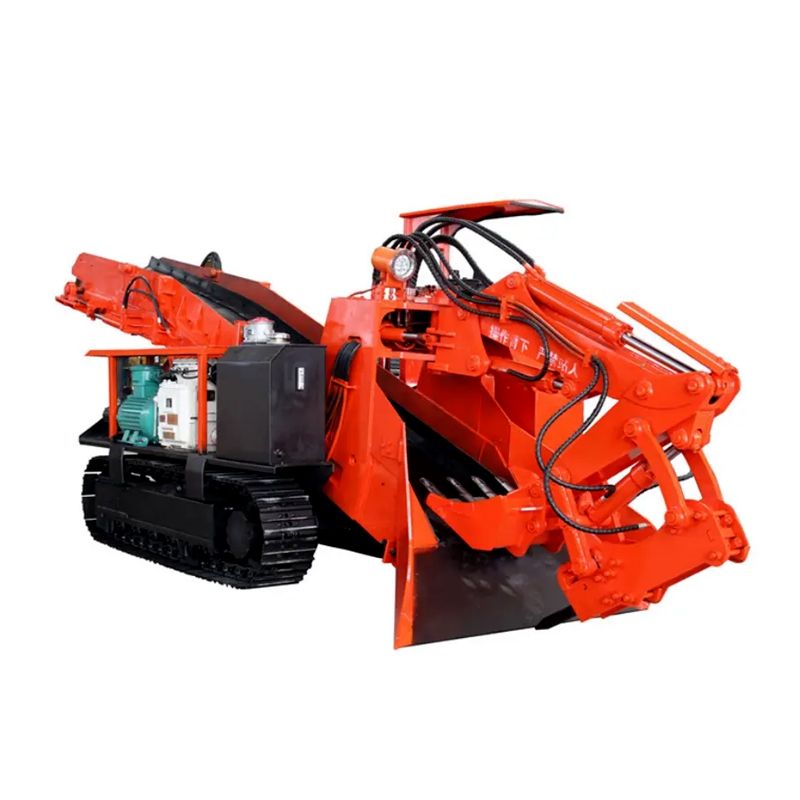

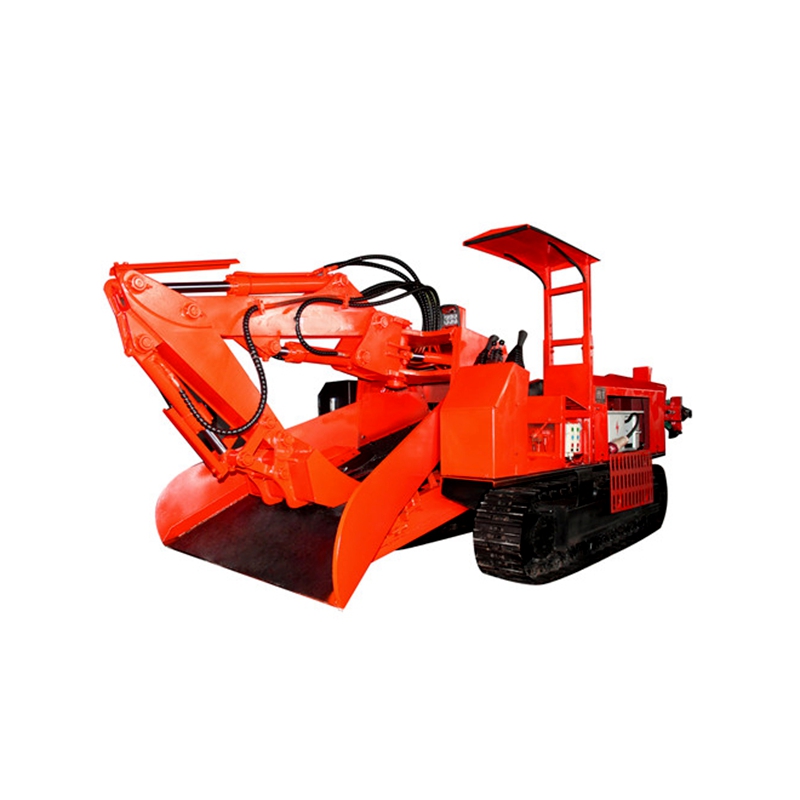

Crawler Mucking Loader

Working arm

The big arm and small arm can be adjust to adopt imported wear resistant materials, so reducing loss, and improving the durability of use.

Conveying belt

It is made of high hardness material. The special design to ensure the successful conveying of the rock

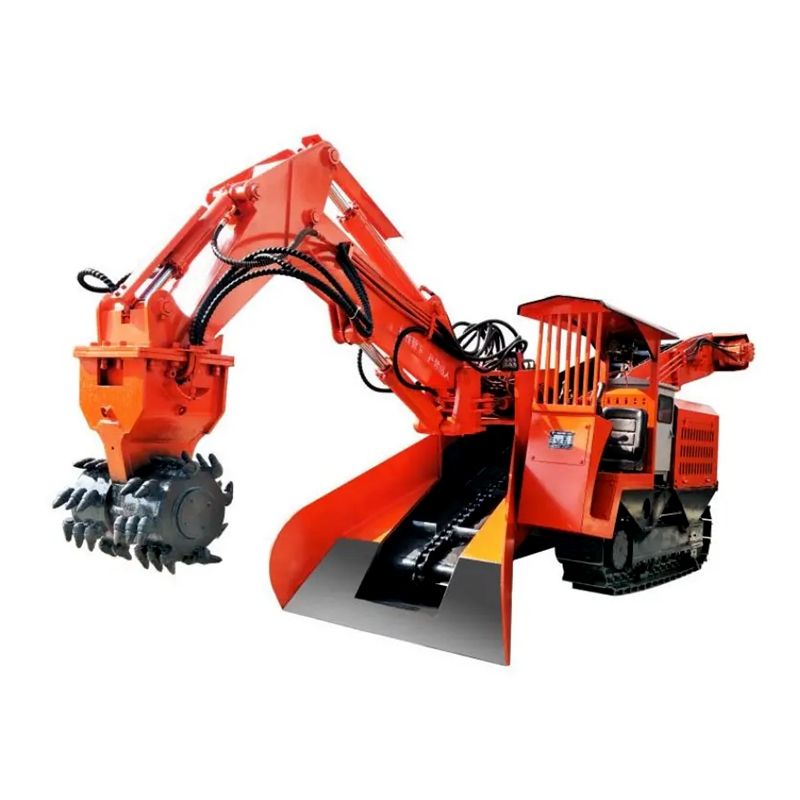

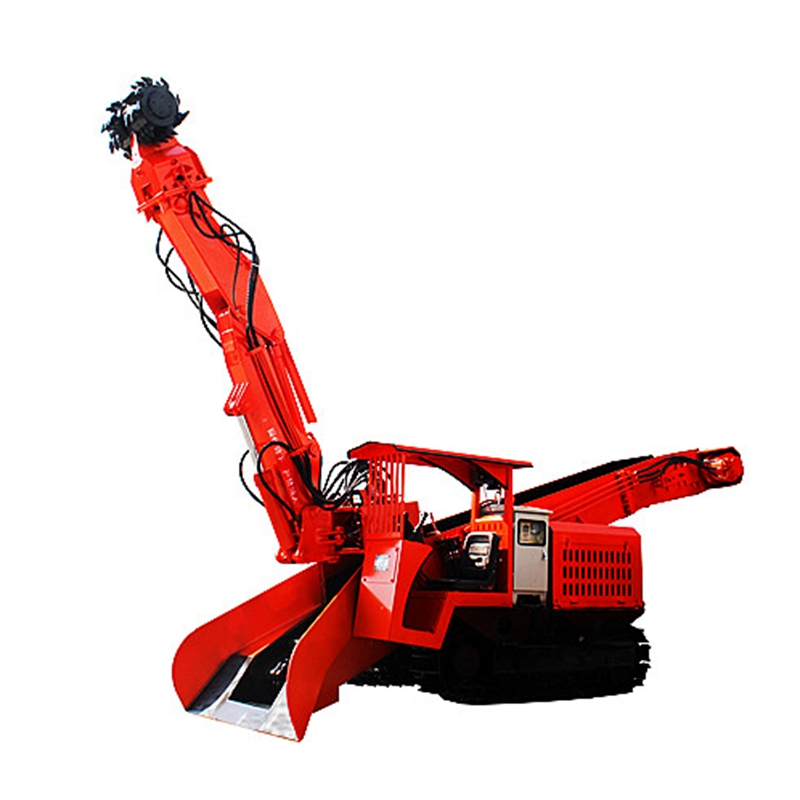

Crawler Mucking Loader

Removable mode

Through reasonable design can realize the field assembly construction convenient, that crews can assemble just as easily as they can break them down into movable parts

PRODUCT SPECIFICATION

Model	BJ-80/37L
Machine Weight	6500kg
Loading Ability	80m³
Digging Width	2800mm
Digging Distance	1800mm
Digging Height	2100mm
Digging Depth	700mm
Dumping Height	1400-1600
Dumping Distance	1500mm(could be raised)
Traveling Speed	0.63±5%km/h
Speed of Scraper Chain	0.5m/s
Working pressure	≤20Mpa
Ground clearance	200mm
Power	37kw
Operate mode/Operation Manner	Mechanical pilot
Crawler Inner Width	900mm
Maximum Material Dimension(Width*Height)	650600500
Overall Dimensions during transport	550015501650mm
Overall Dimensions during operating	700015502000
Grade ability	≤25º
Adaptive Tunnel Fracture(Width*Height)	2*2m
Adaptive Tunnel Slope	/

PRODUCT APPLICATIONS

Tunnel Mucking Loader
