Durable Crawler Tunnel Mucking Loader Sell

All - in - One Functionality: Integrates excavation, hauling, loading, and movement capabilities, making it a perfect fit for tunnel construction projects.

Eco - Conscious Operation: For subterranean work, electric power is the recommended choice as it helps cut down on pollution and enhances safety levels.

Dual - Powered Mechanism: The dual - drive system accommodates both electric and diesel power sources, with electric power being the top pick for underground applications.

Sophisticated Hydraulic Control: The hydraulic control system encompasses five key functions - locomotion, excavation, transportation, loading, and floor debris removal - ensuring consistent and dependable performance.

Contact Now

Product Details

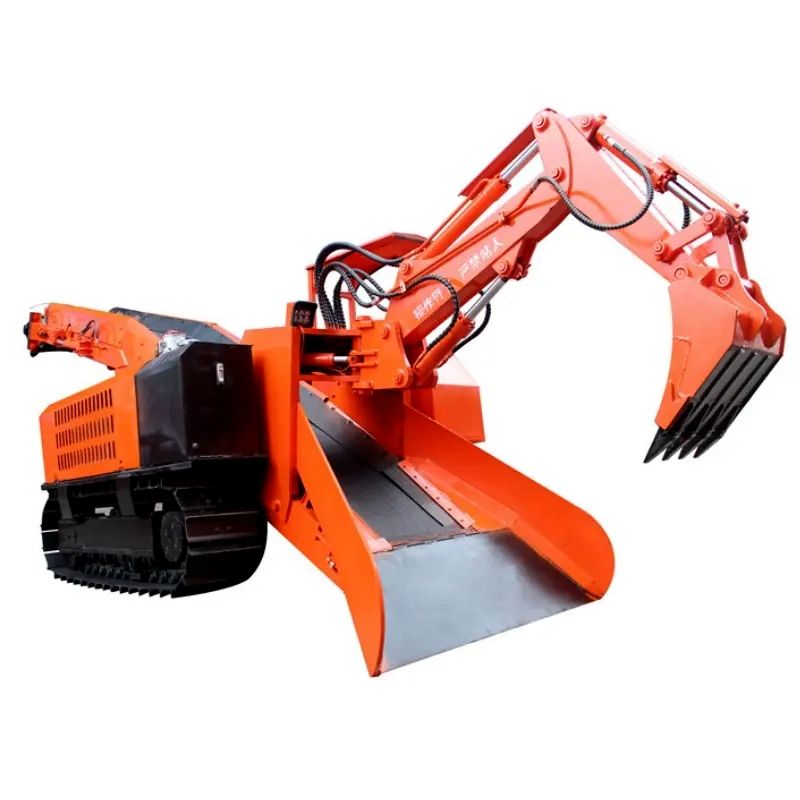

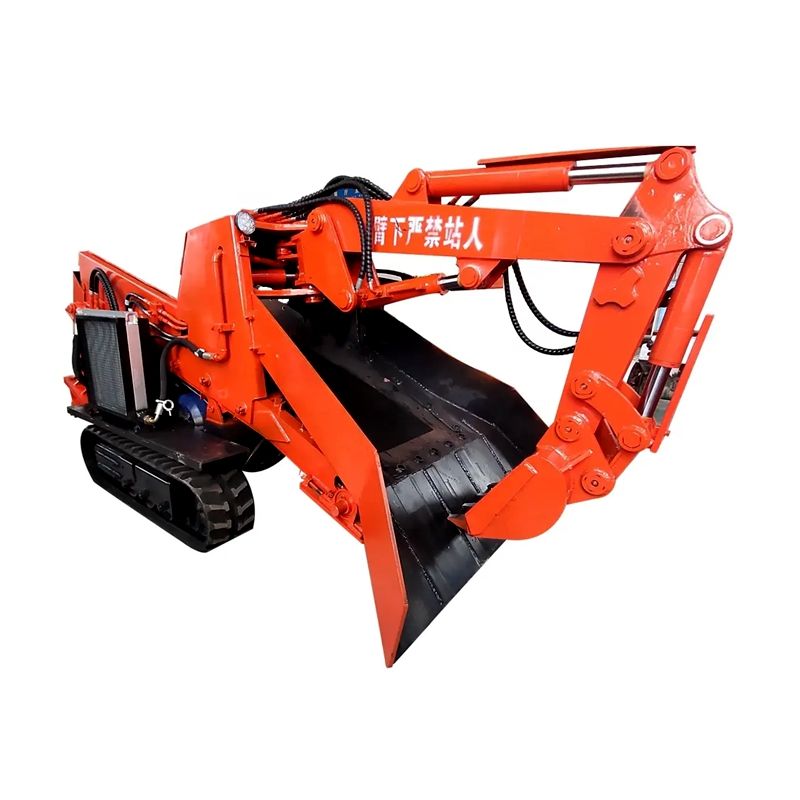

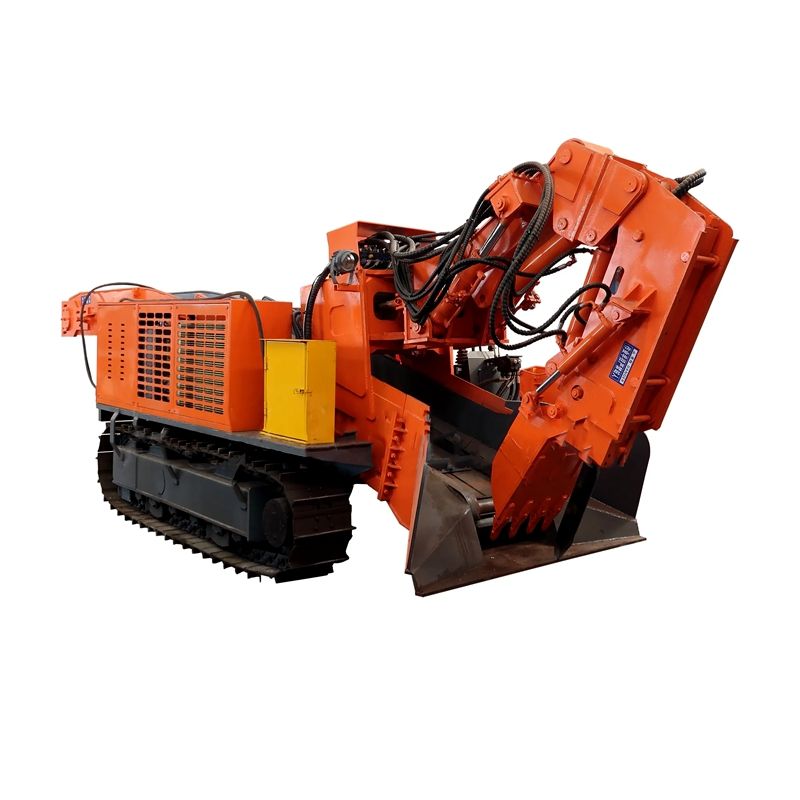

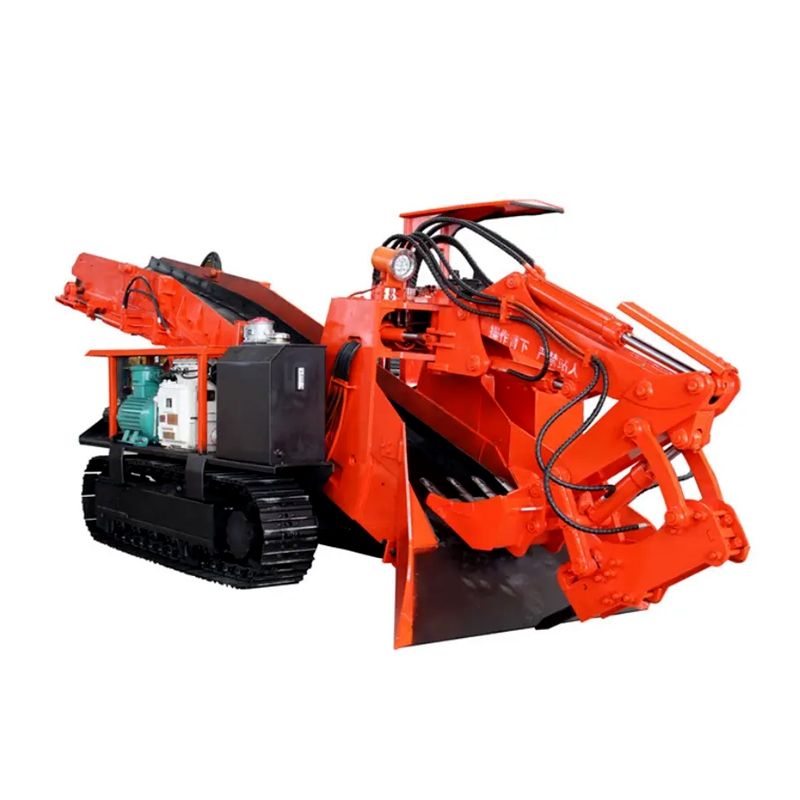

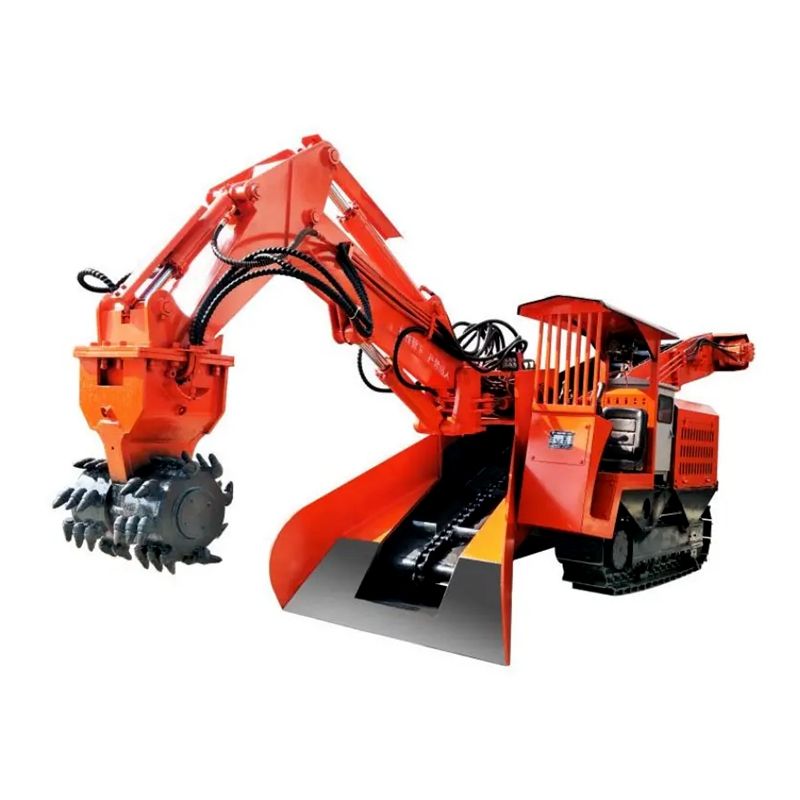

The High - Output Subterranean Crawler Mucking Loader is crafted specifically for tunnel construction endeavors and the removal of slag. It delivers robust functionality within restricted areas, excelling in tasks that demand strength and precision in tight quarters.

Equipped with a cutting - edge crawler mechanism, this loader guarantees outstanding maneuverability and steadfast stability, enabling seamless operation even in the most arduous underground conditions. Whether navigating uneven surfaces or traversing narrow passageways, its crawler system ensures reliable movement.

This machinery combines several essential functions, such as digging, loading materials, and transporting them, streamlining the workflow and significantly boosting efficiency. By integrating these operations, it eliminates the need for multiple machines, thereby reducing overall operational expenses and enhancing productivity.

Featuring an electro - hydraulic control system with a dual - power supply option, it offers the flexibility to operate on either electric or diesel power. While diesel power provides versatility in certain scenarios, electric power is the preferred choice for underground applications. This is because electric operation helps to minimize emissions, creating a cleaner and safer working environment, and also reduces the risk of hazardous fumes in enclosed spaces.

Boasting a compact yet sturdy design, this loader is perfectly suited for tunnel projects. Its small footprint allows it to access tight spaces within tunnels, while its durable construction ensures long - lasting, reliable performance. With this loader, tunnel construction teams can achieve optimal productivity, completing projects more quickly and efficiently.

DETAIL PRESENTATION

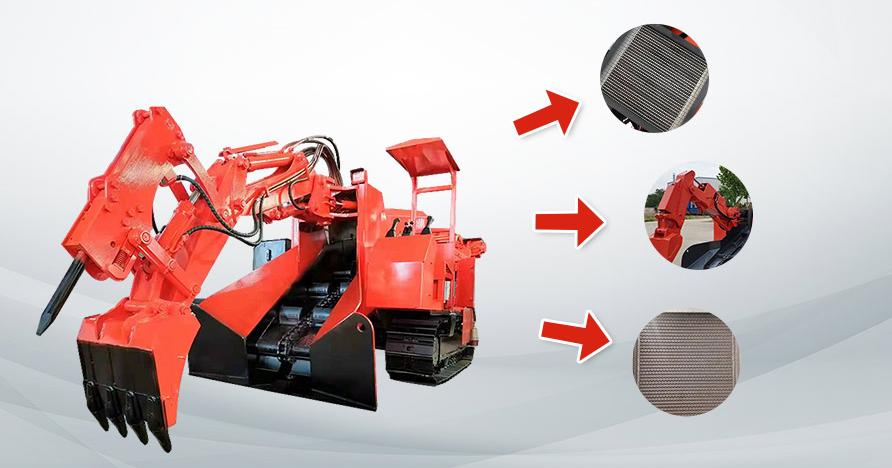

PRODUCT SELLING POINTS

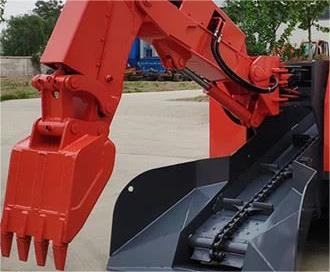

Engineering big arm

Powerful and flexible operation，Internal reinforcement is not easy to crack

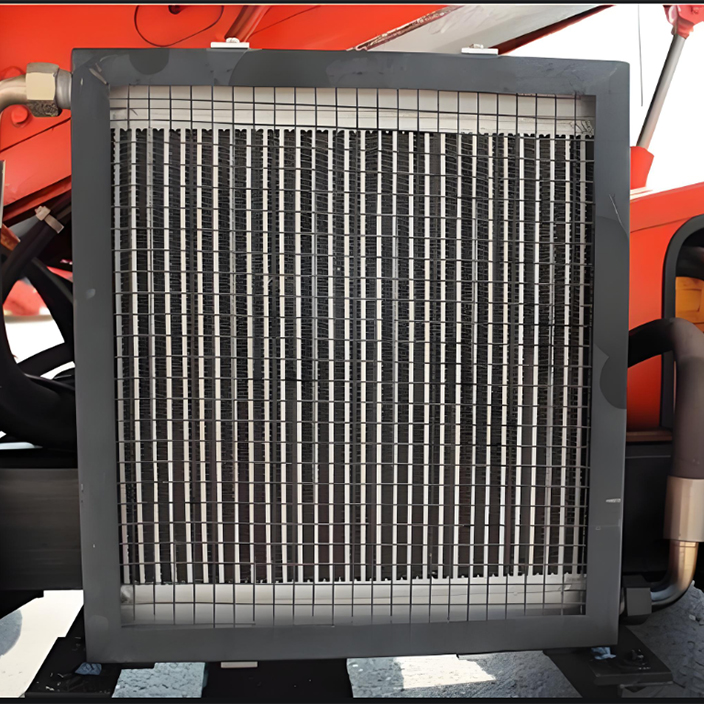

Radiator

Efficient heat dissipation, low noise, small space and easy maintenance

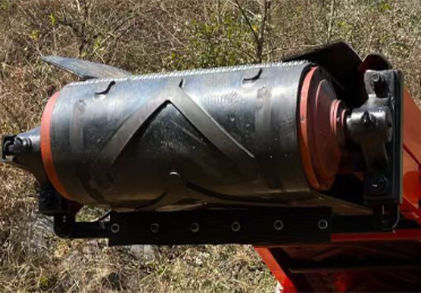

Transport mode

Divided into belt conveyor and Scraper conveyer durable

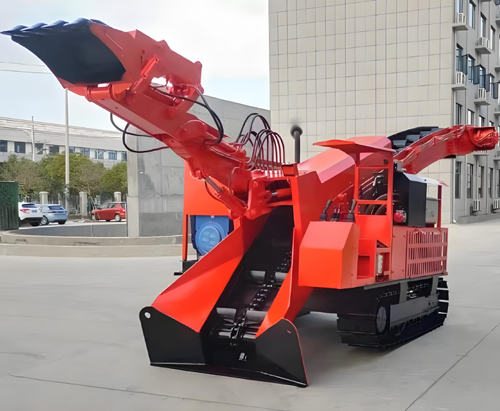

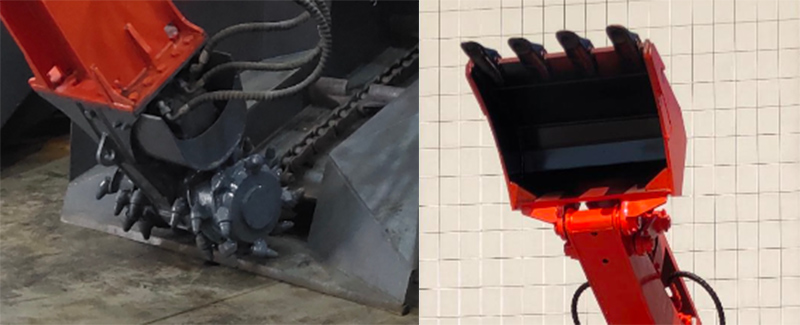

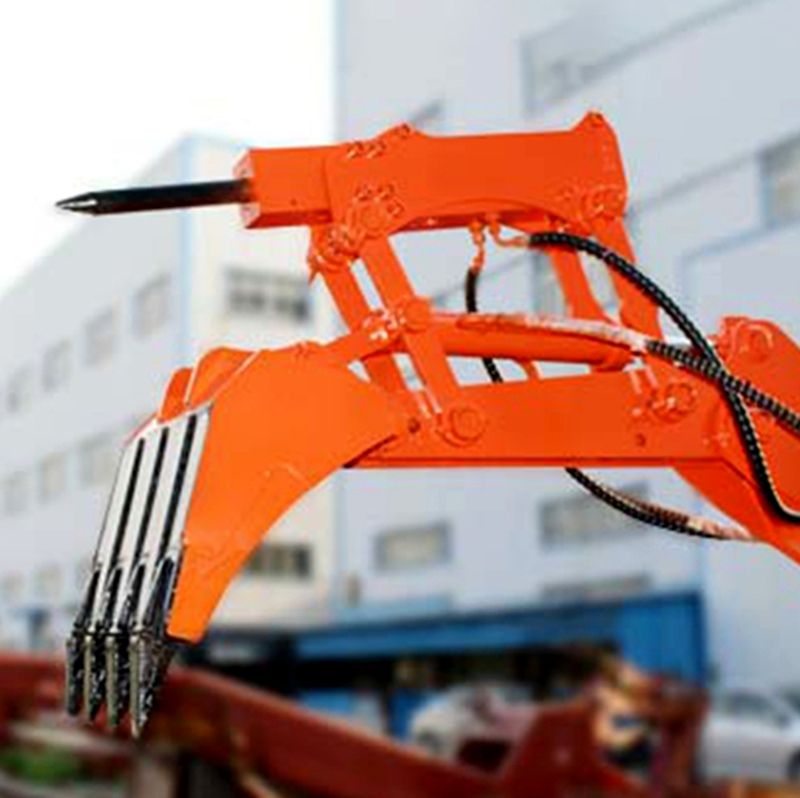

Attachment

Tunnel Mucking Loader

We do handle special orders. We offer customization for logo, colors and graphics

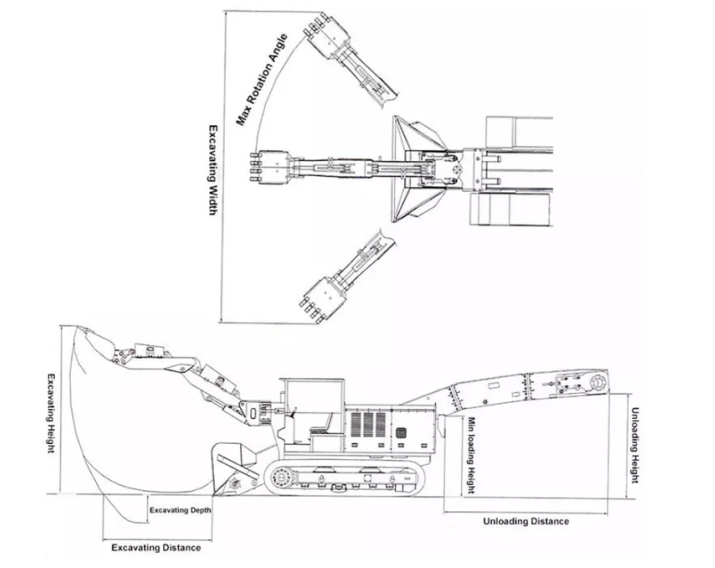

PRODUCT SPECIFICATION

Model(crawler type)	BJ-80/37L	BJ-120/55L
Machine Weight	6500kg	8000kg
Loading Ability	80m3	120m/h
Digging Width	2800mm	4300mm
Digging Distance	1800mm	2700mm
Digging Heigh	2100mm	3800mm
Dumping Height	1400-1600	1550-1850mm(can be changed)
Dumping Distance	1500mm(could be raised)	2800mm(can be changed)
Traveling Speed	0.63±5%km/h	0.63km/h
Speed of Scraper Chain	0.5m/s	/
Working pressure	≤20Mpa	≤31.5mpa
Ground clearance	200mm	220mm(variable)
Power	37kw	55kw
Operate mode/Operation Manner	Mechanical pilot	Hydraulic Control
Crawler Inner Width	900mm	1250mm(variable)
Maximum Material Dimension(Width*Height)	650600500	600*650mm
Overall Dimensions during transport	550015501650mm	700020001850mm
Overall Dimensions during operating	700015502000	970020001900mm
Grade ability	≤25°	/
Adaptive Tunnel Fracture(Width*Height)	2*2m	≥3*3m
Adaptive Tunnel Slope	/	≤30°

Tunnel Mucking Loader

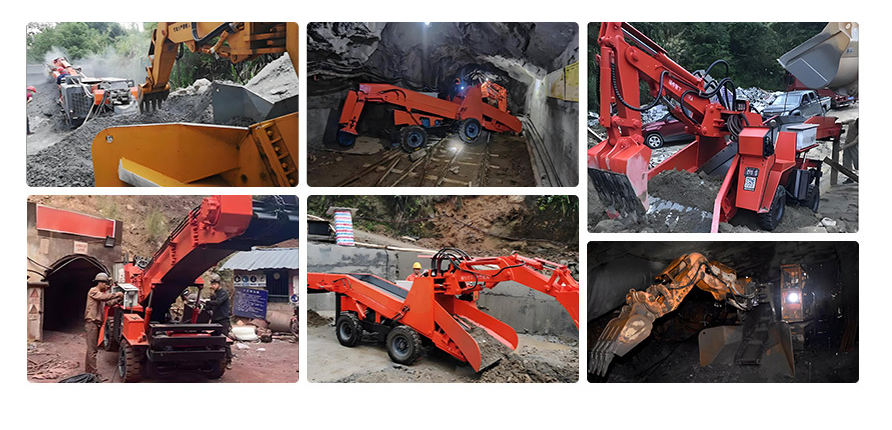

PRODUCT APPLICATIONS

Tunnel Mucking Loader

ABOUT US

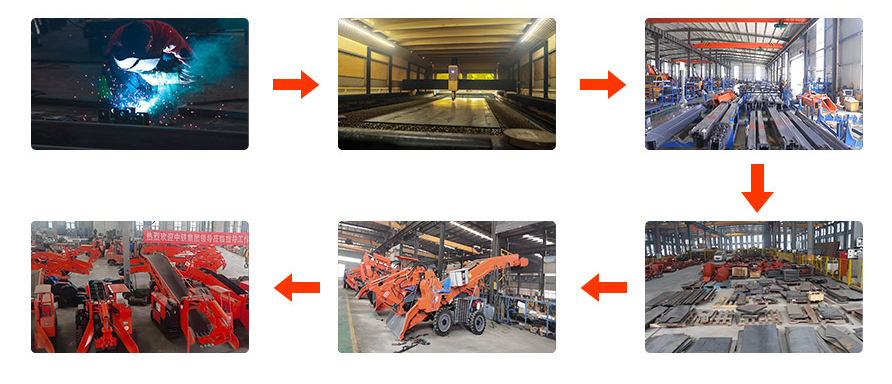

Shandong Beijun Machinery Industry Co., Ltd. is a preeminent enterprise committed to the research, development, and production of mining and construction machinery. Strategically situated in Jining, Shandong, the company occupies an expansive area of 100 acres, featuring a manufacturing facility spanning 20,000 square meters. Leveraging state - of - the - art production techniques, it has an impressive annual manufacturing capacity, including 4,000 mining trucks, 500 fully - hydraulic crawler vehicles, and 3,000 aerial work platform trucks.

The company has successfully obtained the ISO9001 quality management system certification, EU CE accreditation, and mine safety production licenses. It has implemented a comprehensive ERP information management system for enterprise resource planning, utilizing advanced information technology to offer robust management support. Specializing in the production and marketing of mining transport vehicles, crawler - type transport machinery, and aerial work platform trucks, Beijun stands out in the industry.

Backed by a robust technical team, a rigorous quality assurance framework, sophisticated testing equipment, refined technological processes, and stable manufacturing capabilities, Beijun provides a reliable guarantee for meeting customer requirements and driving sustainable corporate growth. Emphasizing independent R & D and continuous innovation, the company currently employs over 200 staff members, including more than 30 technicians, 40 marketing professionals, and 15 mechanical design experts.

For years, Beijun has firmly adhered to the business principle of "Quality First, Customer - Centric." Its products have been exported to markets across Africa, South America, and Southeast Asia, earning widespread acclaim and establishing the company as a trusted global player.

Tunnel Mucking Loader
